R
R
A.

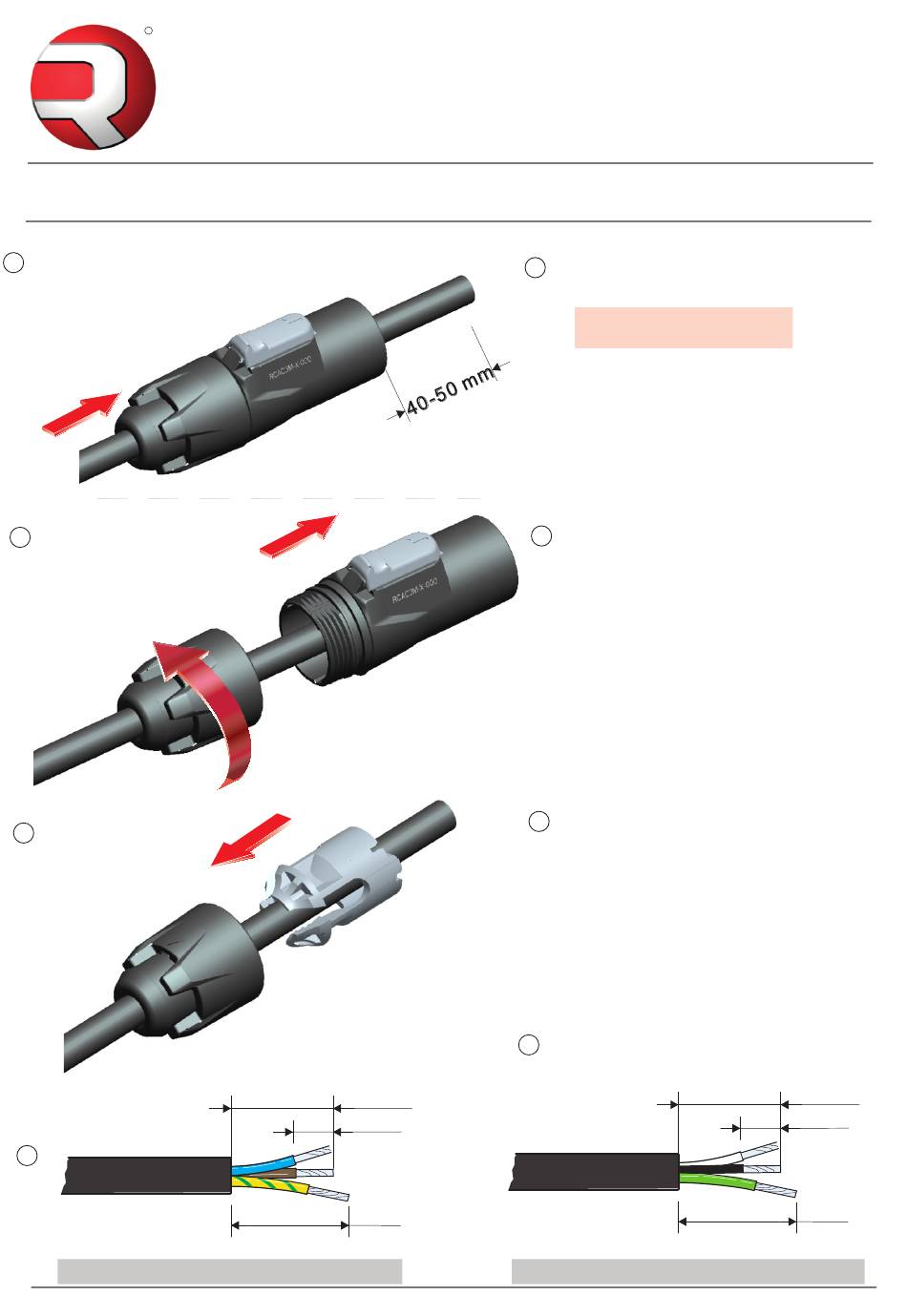

ASSEMBLY INSTRUCTION
A
B
C
D
VDE (EN 60320-1/EN60320-2-2)
ASSEMBLY INSTRUCTION
RCAC3M-X-000
[0.787"]
20mm
8 mm
[0.32"]
P 23 mm
E
[0.9"]
|
Power Cable Connector
A
Insert cable into the bushing and housing.
Note:"Apply cable pulling
lubricant to cable jacket."
.
B
Seperate the housing from the bushing
(cable remain in bushing)
C
Place chuck over the cable.
D
Prepare cable as shown.
UL (UL 60320-1/CSA C22.2 NO.60320-1)
Page 1
[0.787"]
20mm
8 mm
[0.32"]
P 23 mm
E
[0.9"]
