Model
FS-HDA4501T
Features
1. Power supply: 12VDC input;
2. Plug & Play, real time transmit HD-CVI/TVI/AHD/CVBS signals, more clear, more stable;
3. Unique Design: ABS engineering plastic case, Classic and elegant;
4. Connectors: Male BNC connectors for coax, and with push-pin terminals.
5. Push pin terminal connection: 2-pins for UTP cat5e/6; 2-pins for power cable
Overview
FS-HDA4501T is single channel HD active UTP Video Transmitter over Cat5e/6, compatible with HD-CVI/TVI/AHD/CVBS analog cameras. It is widely applied to
the field of CCTV Video Transmission.

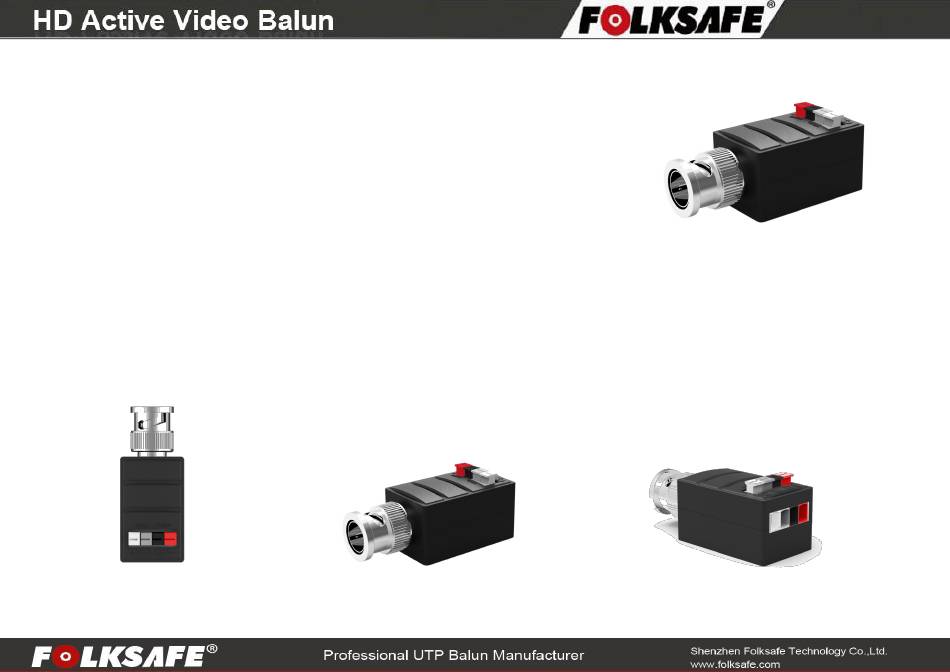

HD Picture
Advertisement
Table of Contents
Summary of Contents for FOLKSAFE FS-HDA4501T
- Page 1 5. Push pin terminal connection: 2-pins for UTP cat5e/6; 2-pins for power cable Overview FS-HDA4501T is single channel HD active UTP Video Transmitter over Cat5e/6, compatible with HD-CVI/TVI/AHD/CVBS analog cameras. It is widely applied to the field of CCTV Video Transmission.
- Page 2 2. Please follow the below steps for installation. 1) Power off, make sure no damage for the device； 2) Connect FS-HDA4501R to DVR, Male BNC of FS-HDA4501T to the female BNC of Camera, the other side of FS-HDA4501T to power connector and UTP cat5e/6 ；...
- Page 3 3) Check the transmission distance is no more than the max transmission distance； 4) Check the power input of FS-HDA4501T is 12VDC or not； 5) Change the faulty device with well working device to check the device damaged or not；...
- Page 4 Application Diagram...
