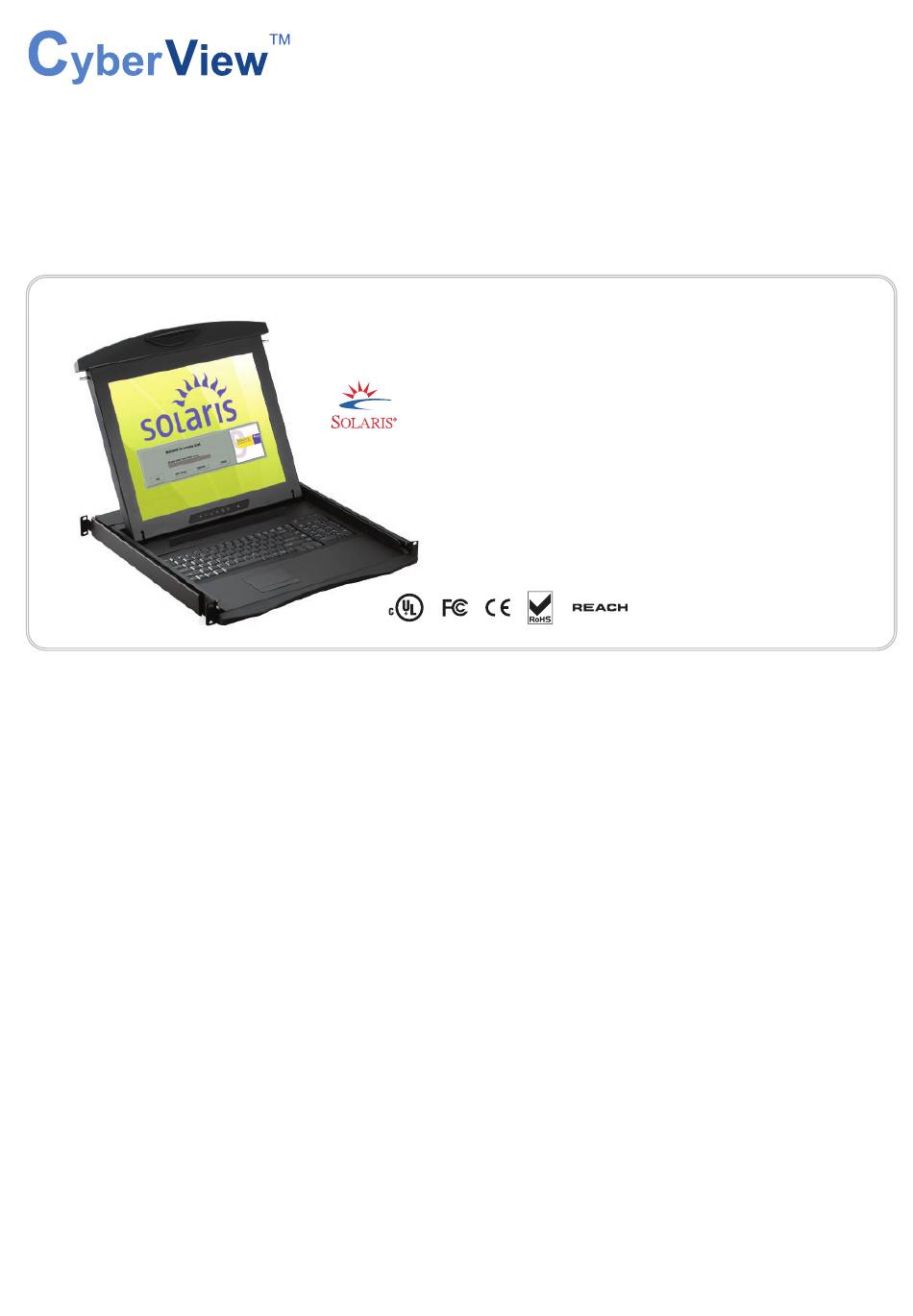

- Page 1 KVM switch and rackmount screen technology User Manual 17” / 19” LCD 1152 x 900 Native Resolution NS117 / NS119 1U LCD Console Drawer Options : - DC power Designed and manufactured by Austin Hughes UM-CV-751-NS117-Q222V1 www.austin-hughes.com...
- Page 2 Legal Information First English printing, April 2022 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > NS117 / NS119 Package Content Structure Diagram & Dimension Installation Connection < Part. 2 > Specifi cations / OSD Product Specifi cations Keyboard / Mouse Specifi cations On-screen Display Operation ( OSD ) P.11 < Part. 3 > Options DC Power : 12V / 24V / 48V / 125V / 250V P.13... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: < 1.1 > Package Content
< Part 1 > < 1.1 > Package Content NS117 / NS119 NS117 or NS119 unit X 1 - CX-6A 6ft DVI-D console cable X 1 ( Alternative : CB-6A 6ft VGA console cable ) - Power cord X 1 - M6 screw, cage nut &... - Page 6 < 1.2 > Dimension Front View Rear View DVI-D AC Input 100~240V Power Side View UNIT : mm 1mm = 0.03937 inch Top View Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight 441.6 x 500 x 44 mm 590 x 808 x 140 mm...
-
Page 7: Installation
< 1.3 > Installation - How to install Installation Slides NS117 / NS119 Step ■ Insert the left and right rear mounting brackets into the LCD console drawer. Step ■ Measure the depth of the front and rear mounting rails. ■... - Page 8 < 1.3 > Installation- How to use the drawer ■ Pull the tab on the front handle and gently slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. After use the drawer Basically, user can push in the drawer back to park position by releasing the left &...
-
Page 9: Connection
< 1.4 > Connection to USB Server via CX-6A cable NS117 / NS119 LCD Console Drawer DVI-D AC Input 100~240V POWER CX-6A DVI-D console cable USB server DVI-D < 1.4 > Connection to external KVM via CX-6A cable LCD Console Drawer DVI-D AC Input 100~240V... - Page 10 < 1.4 > Connection to USB Server via CB-6A cable LCD Console Drawer POWER AC Input 100~240V CB-6A VGA console cable USB server < 1.4 > Connection to external KVM via CB-6A cable LCD Console Drawer POWER AC Input 100~240V CB-6A VGA console cable VGA console KVM...
-
Page 11: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations NS117 / NS119 NS117 NS119 Panel Manufacturer Panel Size ( diagonal ) 17-inch TFT color LCD 19-inch TFT color LCD 1280 x 1024 ( Direct ) 1152 x 900 ( Direct ) Display pixel ( dots x lines ) 1280 x 1024 ( Native ) 1280 x 1024 ( Native ) - Page 12 Environmental Operating Temperature 0 to 55°C degree Conditions Humidity 20~90%, non-condensing Altitude 16,000 ft Storage / Non-operating Temperature -20 to 60°C degree Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 10~300Hz 0.5G RMS random Physical NS117 NS119 Specifi...
-
Page 13: Keyboard / Mouse Specifi Cations
< 2.2 > Keyboard / Mouse Specifi cations NS117 / NS119 S keyboard integrated with touchpad S keyboard integrated with trackball Ca ps Scro ll Comp ose Ca ps Scro ll Comp ose S keyboard integrated with touchpad / trackball ■... - Page 14 < 2.2 > Keyboard / Mouse Specifi cations How to Use "S" Keyboard Num LED in Off mode Num LED in Green mode Key pad behaves as a SUN Solar Key pad behaves as a normal key system administration command mode pad mode Audio / Display Keys * Please ask your supplier for full details...
-
Page 15: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) NS117 / NS119 Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or... - Page 16 < 2.3 > On-screen Display Operation ( OSD ) OSD Confi guration Page Image: for the brightness, contrast, color temp, red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AVL and mute Misc:...
- Page 17 < Part 3 > < 3.1 > Options : DC Power NS117 / NS119 Model 125V 250V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt 300-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V 180 ~ 425V Input current - No load...
- Page 18 < Part. 4 > KVM Integration www.austin-hughes.com/support/usermanual/cyberview/UM-CV-2KKVM-KIT.pdf Local Remote 8-port -801D www.austin-hughes.com/support/usermanual/cyberview/UM-CV-DVIKVM-KIT.pdf DVI-D Local Remote 12-port -1201D www.austin-hughes.com/support/usermanual/cyberview/UM-CV-MUKVM-KIT.pdf Cat6 Local Remote 8-port 16-port 32-port Matrix -MUIP1613 -MUIP3213 -MUIP1624 -MUIP3224 -MU1602 -MU3202 -MU1603 -MU3203 -MU1604 -MU3204 www.austin-hughes.com/support/usermanual/cyberview/UM-CV-UKVM-KIT.pdf Cat6 Local Remote 8-port 16-port 32-port Combo...
- Page 19 Intentionally Left Blank UM-CV-751-NS117-Q222V1 www.austin-hughes.com...
- Page 20 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2022 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-NS117-Q222V1 www.austin-hughes.com...
