Summary of Contents for PRADO trim long

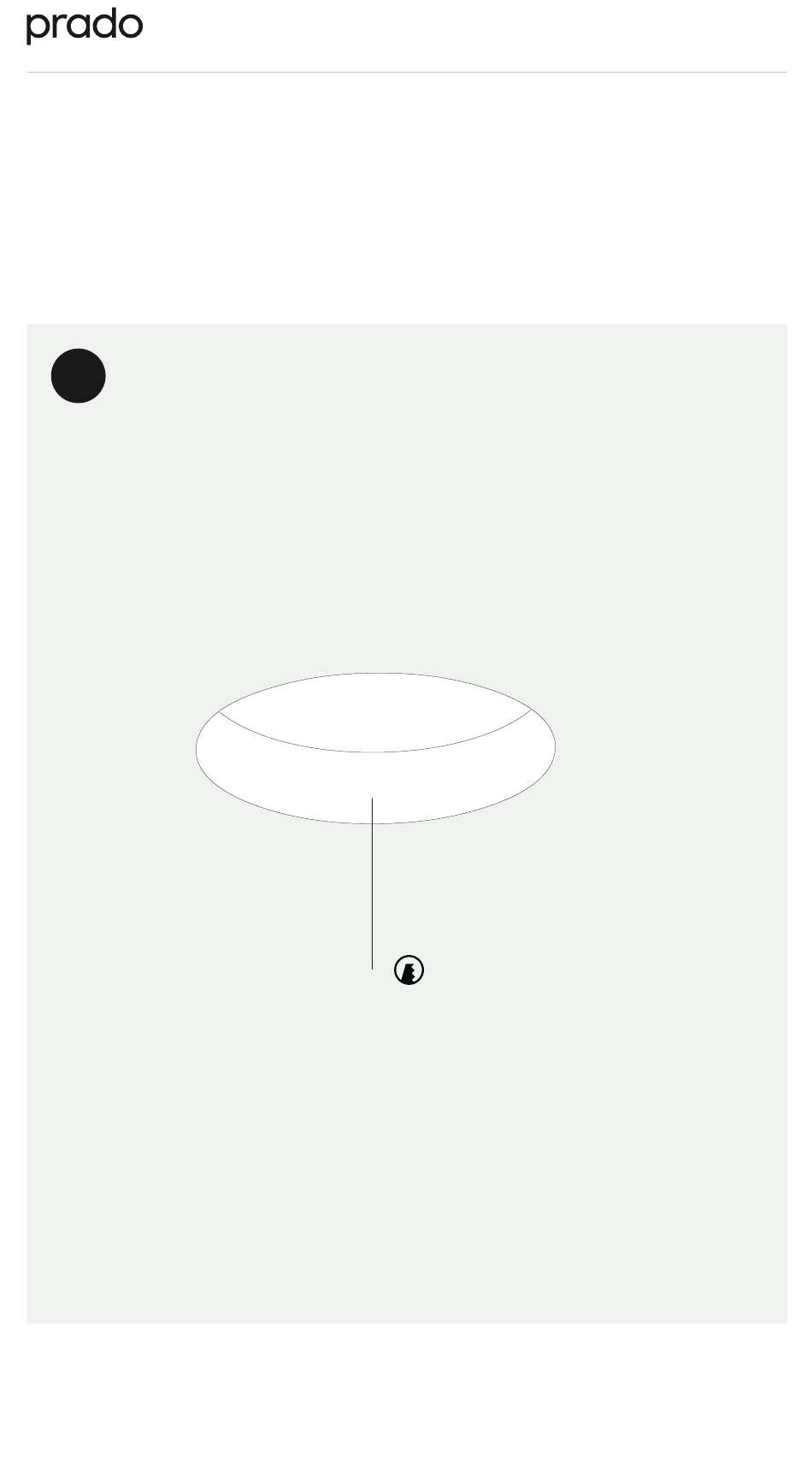

- Page 1 + ventilation | trim long installation instruction Ø 132mm cut a round hole (Ø 132 h 85)
- Page 2 Ø 20 mm Use a step drill to cut a Ø20 hole into the Ø125 valve adapter of your choice. A hole can be drilled in any type or brand of Ø125 valve adapter.
- Page 3 300mm wire POWER Connect the Ø16 preflex and the valve adapter with the prado connector. Make sure to add minimal 300mm of wire into the valve adapter. Driver must be placed remotely to remain accessible.
- Page 4 min 75mm Ø125 Ø125 0-25mm Cut off the excess length of the valve adapter. (between 0 and 25 mm above final ceiling level) The remaining vertical part of the adapter (before the start of the turn) must be at least 75 mm high for the plaster ring (connector can’t be placed in this zone).
- Page 5 Insert the holder...
- Page 6 push if 50m /h is required remove the 25m /h ring like shown above if 25m /h is required do not remove the 25m /h ring like shown above...
- Page 7 pull locked unlocked unlocked gently pull the lock out before adjusting the air flow...
- Page 8 POWER 10 mm 0.08 - 2.5mm constant typical forward typical current (mA) voltage (V) power (W) 16,9 17,4 18,2 12,7 18,5 15,7 connect the wires with waterproof connectors for serial connection, respect polarity combine with prado LED-driver...
- Page 9 heat 1. insert the wires into the connector 2. compress the middle part 3. seal with a heater...
- Page 10 “click” gently insert the fixture into the kit until it “clicks”...
- Page 11 twist the luminaire to adjust the ventilation flow level...
- Page 12 “click” insert the design ring to lock the ventilation valve...
- Page 13 360° 30° POWER twist the luminaire as desired thank you for choosing prado Replace glass lens when broken. IP 65 Luminaire shall only be used together with glass lens. prado.eu The light source in this luminaire shall only be replaced by the manufacturer or a similar qualified person.
