Sail Classics INTERNATIONAL LIGHTHING Assembly Instructions

Follow these instructions carefully and step by step. The rigging lines of the boat could tangle easily

so do not undo the lines until instructed.

Unwrap the hull and stand. Place the hull into the stand with the hull facing forward to your right. Keep the

starboard side of the boat facing you in order to follow the instructions and to compare with the diagrams.

1a.

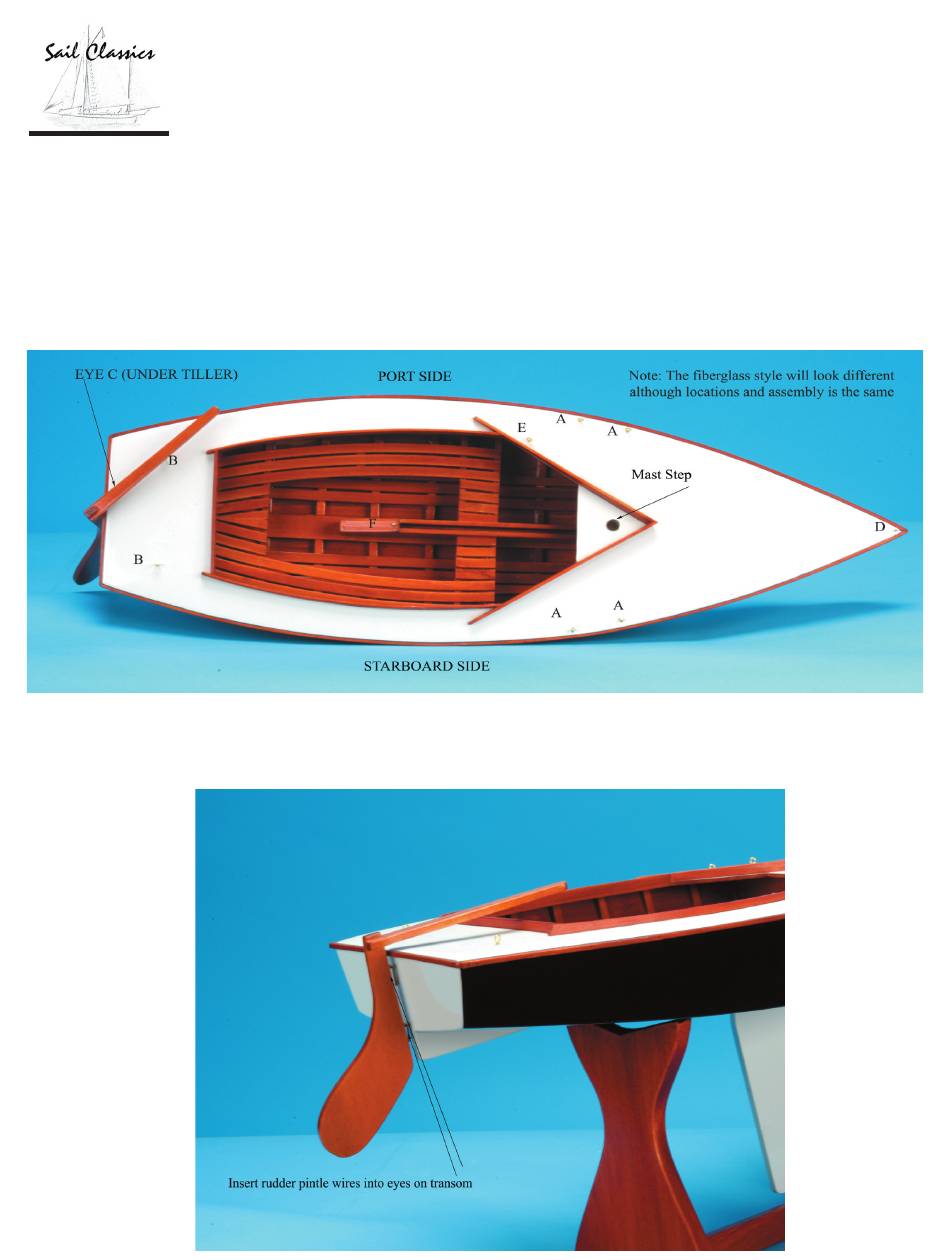

Study the open eyes of A, B, C, D, E, & F. There are also two eyes on the back transom of the boat for the

rudder. They each have a ﬁ xed position that corresponds to different rigging lines and sail sheets of the boat. See

photo (1)

Unwrap the rudder w/tiller. You will ﬁ nd two bent wires to represent pintles on the rudder. Place

these down through the two eyes on the transom of the boat. See photo (2)

INTERNATIONAL LIGHTHING

ASSEMBLY INSTRUCTIONS

Table of Contents

Need help?

Do you have a question about the INTERNATIONAL LIGHTHING and is the answer not in the manual?

Page 1 INTERNATIONAL LIGHTHING ASSEMBLY INSTRUCTIONS Follow these instructions carefully and step by step. The rigging lines of the boat could tangle easily Follow these instructions carefully and step by step. The rigging lines of the boat could tangle easily so do not undo the lines until instructed.
Page 2 Finish the jib by attaching the sheet line to eye E on the port side top deck. See photo (4) Your Sail Classics Lightning Model should now be complete. Enjoy! Sail Classics, Inc. P.O.Box 747 Lakebay, WA 98349...
