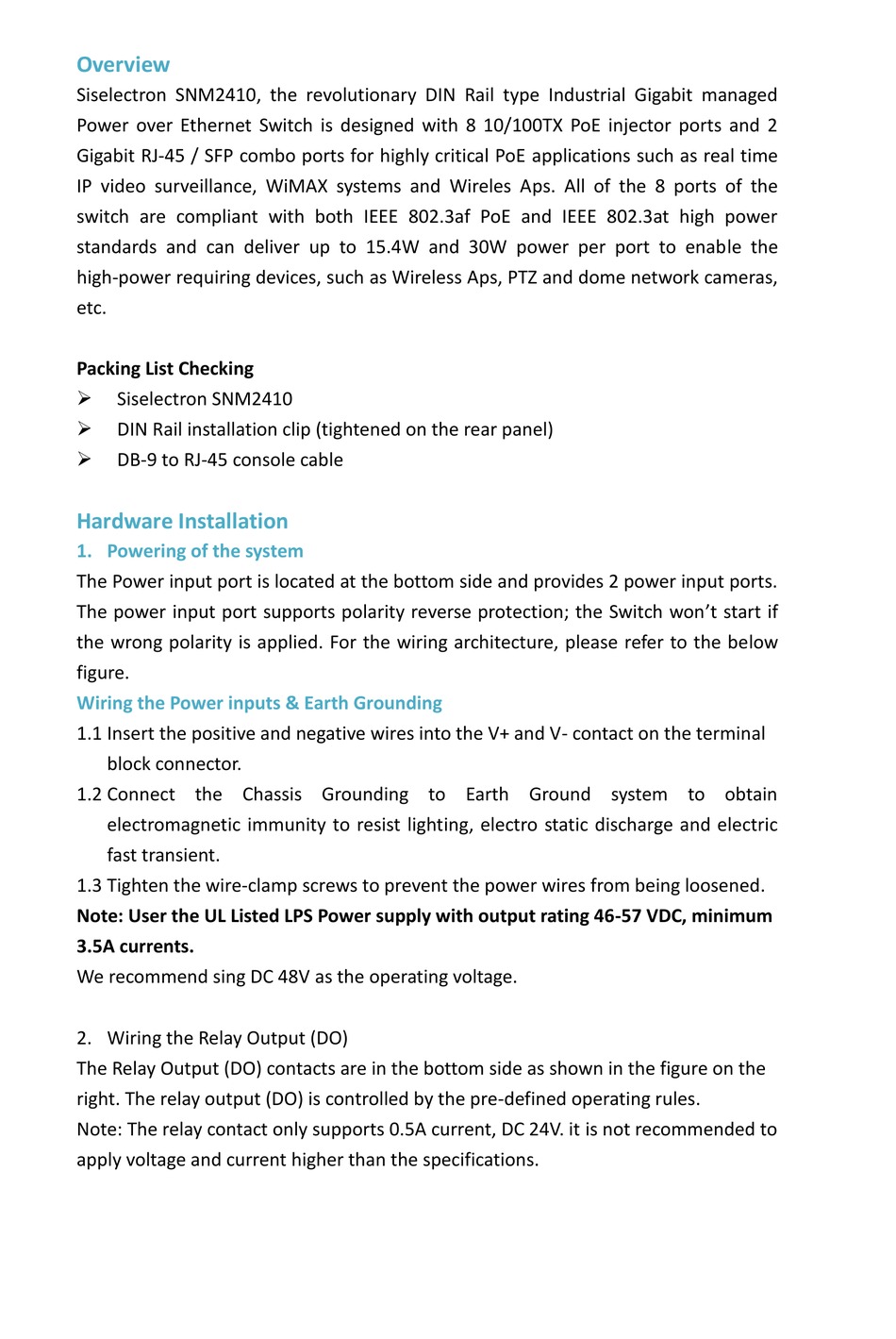

Overview

Siselectron SNM2410, the revolutionary DIN Rail type Industrial Gigabit managed

Power over Ethernet Switch is designed with 8 10/100TX PoE injector ports and 2

Gigabit RJ-45 / SFP combo ports for highly critical PoE applications such as real time

IP video surveillance, WiMAX systems and Wireles Aps. All of the 8 ports of the

switch are compliant with both IEEE 802.3af PoE and IEEE 802.3at high power

standards and can deliver up to 15.4W and 30W power per port to enable the

high-power requiring devices, such as Wireless Aps, PTZ and dome network cameras,

etc.



Siselectron SNM2410



DIN Rail installation clip (tightened on the rear panel)



DB-9 to RJ-45 console cable

1. Powering of the system

The Power input port is located at the bottom side and provides 2 power input ports.

The power input port supports polarity reverse protection; the Switch won't start if

the wrong polarity is applied. For the wiring architecture, please refer to the below

figure.

Wiring the Power inputs & Earth Grounding

1.1 Insert the positive and negative wires into the V+ and V- contact on the terminal

block connector.

1.2 Connect the Chassis Grounding to Earth Ground system to obtain

electromagnetic immunity to resist lighting, electro static discharge and electric

fast transient.

1.3 Tighten the wire-clamp screws to prevent the power wires from being loosened.

Note: User the UL Listed LPS Power supply with output rating 46-57 VDC, minimum

3.5A currents.

We recommend sing DC 48V as the operating voltage.

The Relay Output (DO) contacts are in the bottom side as shown in the figure on the

right. The relay output (DO) is controlled by the pre-defined operating rules.

Note: The relay contact only supports 0.5A current, DC 24V. it is not recommended to

apply voltage and current higher than the specifications.
