- Page 1 INSTRUCTION MANUAL UNIVERSAL BAR 1MN0206 REV.0 operates with ISO9001 certified quality system TECSYSTEM S.r.l. 20094 Corsico (MI) Tel.:+39-024581861 Fax:+39-0248600783 http://www.tecsystem.it R. 1.1 18/02/22 ENGLISH “Translations of the original instructions”...
-
Page 2: Table Of Contents
INTRODUCTION First of all we wish to thank you for choosing to use a TECSYSTEM product and recommend you read this instruction manual carefully: You will understand the use of the bar and therefore be able to take advantage of all its functions. - Page 3 To disconnect the system, do not use objects such as levers. Immediately disconnect the power supply if it is evident that the system is giving off a smell of burning or smoke and contact the Tecsystem technical assistance. LIQUIDS Do not expose the product to dripping or splashing liquids.
- Page 4 TG360 TG500 230Vac – 60Hz POWER SUPPLY CURRENT 0.57A 0.74A 0.85A POWER 114W 160W 187W TECHNICAL SPECIFICATIONS 120Vac 60Hz (UL) MODEL TG180 TG360 TG500 120Vac – 60Hz POWER SUPPLY CURRENT 1.24A 1.65A 1.88A POWER 132W 188W 210W UNIVERSAL BAR DIAM.80...
-
Page 5: Universal Bar Presentation

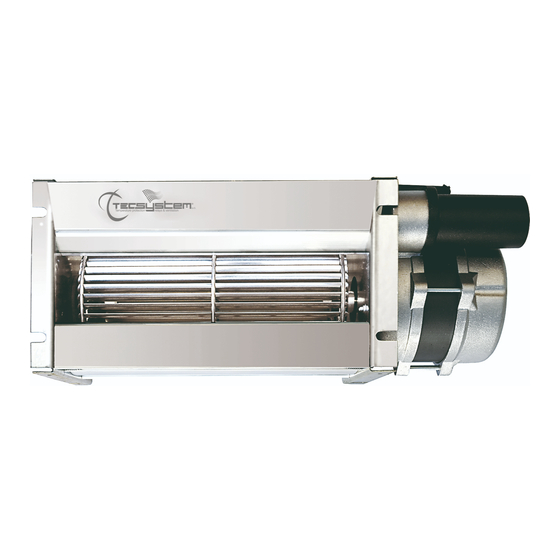

UNIVERSAL BAR PRESENTATION The new Tecsystem universal bar has been designed to simplify the positioning of the fans immediately under the columns of the resin transformers and also allows better adaptability to the dimensions of the transformer from 1250KVA to over 2500KVA. -
Page 6: Bar And Fans Assembly
SIDE BAR VIEW 1MN0258 REV.0 1MN0210 REV.0 Fasten the bar on the transformer carriage using the dedicated fixing slots, suggested M8 bolts plus washer. NOTE: insert the bolts, locking both profiles: central and lateral on the transformer carriage. UNIVERSAL BAR DIAM.80... - Page 7 Place the fans on the bar and centre each individual fan with the U-V-W reference column. 1MN0206/8 REV.0 Use the dedicated slots on both profiles and the self-drilling screws, supplied, to lock the fans in the desired position. UNIVERSAL BAR DIAM.80...
-
Page 8: Notes On Assembly
The fan must be positioned horizontally; always make sure, using a spirit level, that the fan is positioned correctly. The maximum permitted vibration level is 60Hz. UNIVERSAL BAR DIAM.80... -
Page 9: Electrical Connections
Terminate the connection by inserting the other L-EARTH- Apply the protective casing supplied and tighten the N conductors. locking screw. ATTENTION: the 120VAc 60Hz fans have a different wiring therefore consult the quick guide manual available inside the package of the purchased product. UNIVERSAL BAR DIAM.80... -
Page 10: Power Supply
Any prolonged standstill of the fan could cause malfunctions. Installation of the fans combined with the Tecsystem thermometric control units avoids any prolonged shutdowns. By enabling the HFN function present in the Tecsystem control units, it is possible to program fan activation cycles from 1 to 200 hours, recommended setting every 24 hours (for further information on the HFN function, check the manual of the control unit purchased). -
Page 11: Fan Dimensions
FAN DIMENSIONS TG180 1VN0006 1MN0229 REV.0 TG360 1VN0010 1MN0230 REV.0 TG500 1VN0016 1MN0231 REV.0 UNIVERSAL BAR DIAM.80... -
Page 12: Bar Dimensions
BAR DIMENSIONS BAR 1200 1MN0235 REV.0 BAR 1800 1MN0243 REV.0 BAR 3600 1MN0244 REV.0 NOTE: dimensional tolerance of bar drawings ± 10mm UNIVERSAL BAR DIAM.80... -
Page 13: Warranty Regulations
Returning of used electrical appliances: contact TECSYSTEM or the TECSYSTEM agent to receive information on correct disposal of the appliances. TECSYSTEM is aware of the impact its products have on the environment and asks its customers active support in the correct and environmentally-friendly disposal of its devices.
