- Page 1 Shandong Taishan Sports Equipment Co.,Ltd Installation Of Competition Parallel Bar TQ1001B Web: www.taishansports.cn...
- Page 2 Shandong Taishan Sports Equipment Co.,Ltd Precautions for Use 1. For gymnastic only, It should be used under the guidance and supervision of professionals； 2. Children under 10 years old are not allowed to use 3. It shall not be used by more than one person at the same time, maximum load 500Kg;...
-
Page 3: Product Introduction

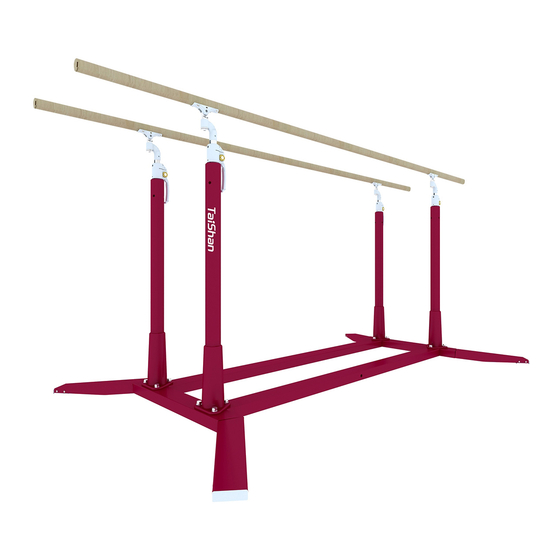

Shandong Taishan Sports Equipment Co.,Ltd 13. No knock and scratch with hard object； 14. Wipe the surface of equipment with neutral detergent and clean water. Product Introduction: This competition parallel bars can be used in competition and training. The height adjustment tube adopts chrome plating process, abrasion-resistant material and easy installation ;... - Page 4 Shandong Taishan Sports Equipment Co.,Ltd A:base B:upright C:bar rail D:locking device Web: www.taishansports.cn...
- Page 5 Shandong Taishan Sports Equipment Co.,Ltd Installation Notes Packing list A-Base 1 pc C-Rail 2 pcs B-Upright 4 pcs E-hex F-Hex socket head screw screw G-flat J-Elastic washers Adjusting washer Support 12pcs washer 12 pcs 4 pcs 4pcs 8 pcs 12 pcs...
- Page 6 2. As shown in the figure below, use a K-24 single-head open wrench to connect A-base, B-upright, F-hex head screws, G -Flat washers and J-elastic washers are tightened firmly. Note: When installing, coordinate the direction of Taishan logo; upright bolts needs to be tightened gradually. Web: www.taishansports.cn...
- Page 7 Shandong Taishan Sports Equipment Co.,Ltd 3) As shown in the figure below, use L-allen wrench to install and fix the B-upright component and C-bar rail with I-adjusting washer, H-support pad and E-hex socket screw. Note: The installation quantity of adjusting washer can be adjusted according to the actual situation.
- Page 8 Shandong Taishan Sports Equipment Co.,Ltd Directions for use This product is designed for parallel bars competition and training use. Description of adjustment: as shown in the figure below, first raise the handle (see the figure below), and then adjust inner tube to achieve the purpose of height adjustment.
- Page 9 Shandong Taishan Sports Equipment Co.,Ltd Maintenance: 1) During the use of the parallel bars, check regularly whether all the connecting parts of the product are loose or fall off, and tighten or replace them in time to ensure the safety.
- Page 10 Shandong Taishan Sports Equipment Co.,Ltd 4) when the lock parts loose (see picture below),raise the handle(1) and use the M allen wrench to unscrew the hex socket screw(4) on both ends.Hold the handle (1) tightly, then use the parallel bar clamp (3) to adjust the wrench.Adjust the left locking nut (2) and the right locking nut (5) evenly...
-
Page 11: Warranty
Shandong Taishan Sports Equipment Co.,Ltd Warranty: 1) The warranty period of the equipment from the date of delivery is shown in the following table: No Name Period Remark base 3 year Not includes the feet upright 3 year Not includes locking device... - Page 12 Shandong Taishan Sports Equipment Co.,Ltd Tools: No Name Spec Remark Single head spanner Hexagon socket wrench Hexagon socket wrench Hexagon socket wrench clamp head adjustment wrench Web: www.taishansports.cn...
