Summary of Contents for DimSport Rapid BIKE BlueBike
- Page 1 _______________________________ Installing instructions __________________________________ BlueBike Bluetooth adapter INSTALLATION AND USE Issued by: PM approved by DG Rev.00 date 10/04/19 pag. 1/4...

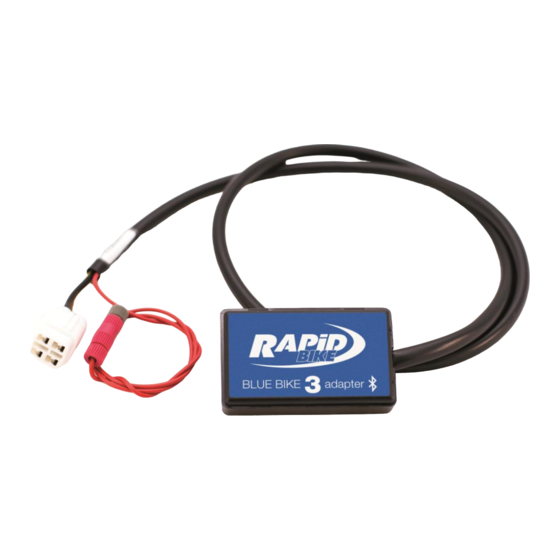

- Page 2 _______________________________ Installing instructions __________________________________ Part number: F27ADBTOOTH3 Description: Bluetooth interface for Rapid Bike modules. Features Bluetooth v.4.0 BLE Bluetooth class 2 radio Built-in antenna Range: 10 meters line-of-sight WARNING: BlueBike adapter does NOT allow to program blank modules, changing bike model and upgrading the firmware (USB adapter F27ADMUSB2 is mandatory for those operations).
- Page 3 _______________________________ Installing instructions __________________________________ 1. Installation 1.1. Turn ignition off. 1.2. Plug the white 4 pin female plug into the white 4 pin male plug of Rapid Bike harness marked as USB. 1.3. Connect the red wire to a switched 12V source using the provided posi-tap.
- Page 4 After the first connection a button for Bluetooth connection appears in the toolbar 3.5. The information about Rapid Bike module appear at the bottom of software’s screen meaning connection has been established. Dimsport Srl Zona Industriale Madonnina - Loc. San Iorio, 8 B 15020 SERRALUNGA DI CREA (AL) - ITALY T (+39) 0142.9552 F (+39) 0142.940094...
