Ace FDT Operating And Mounting Instructions

Operating and mounting instructions
General Instructions and technical details
FDT
Rotary Dampers

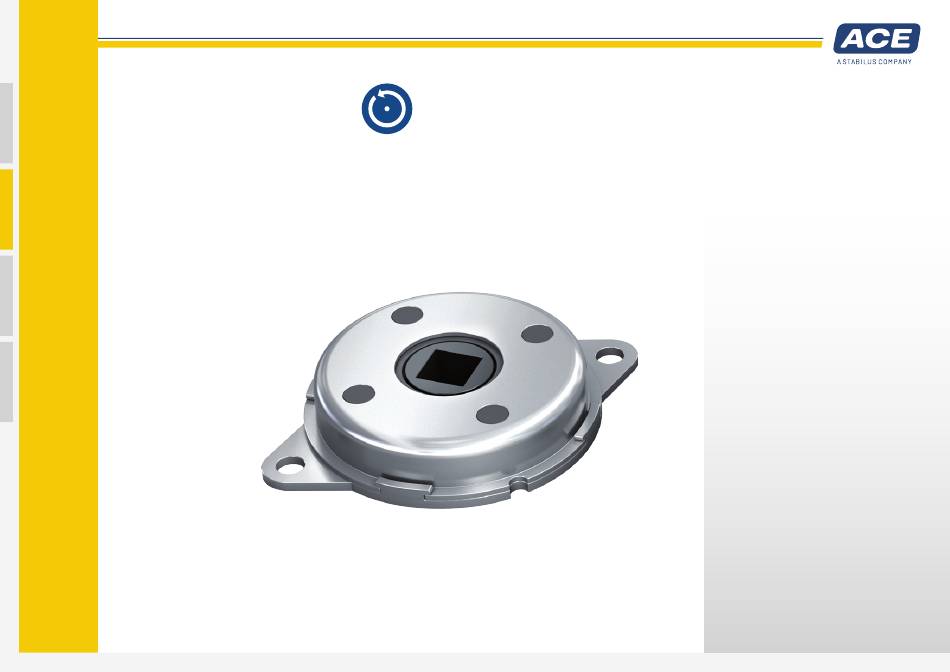

The flat disc brake for two-sided damping
Continuous rotation
Damping torque 2 Nm to 8.7 Nm
FDT
21_22_0019 Issue 05.2022 Stand 03.2021 ACE Stoßdämpfer GmbH · Postfach 1510 · D-40740 Langenfeld · T +49 (0)2173 - 9226-10 (Technik -20) · F +49 (0)2173 - 9226-19 · info@ace-int.eu · www.ace-ace.com
Table of contents Page
General instructions ................................. 2
Safety Information ................................... 2
Intended Use ........................................... 2
Description And Function ........................... 2
Calculation And Design ............................. 2
Delivery And Storage ................................ 2
Maintenance And Care .............................. 2
Disassembly And Disposal ......................... 2
Mounting Instructions ................................ 3
Warranty ................................................. 4
Expected Service Life ................................. 4
Technical Data .......................................... 4
