QUICK GUIDE
QUICK GUIDE
Split Airco 6.7 kW
Airco 6.7 kW
1. Inside unit
1. Inside unit
Place the inside unit in the space you want to climatize.
Place the inside unit in the space you want to climatize.
3. Connect tubes and cables on the inside unit
3. Connect tubes and cables on the inside unit
•
• Connect the prefilled glycoltubes (red > red / blue >
Connect the prefilled glycoltubes (red > red / blue >
blue).
blue).
•
• Connect the power supply cable between both units.
Connect the power supply cable between both units.
•
• Insert the condensation tube.
Insert the condensation tube.
•
• Attach the grounding cable.
Attach the grounding cable.
A
A
B
B
5. Insert power plug
5. Insert power plug
A.
Green light on the upper left: the airco is connected.
A.
Green light on the upper left: the airco is connected.
B.
Choose between the different working modes: (0) Off / (I) Cooling / (II) Ventilation
B.
Choose between the different working modes: (0) Off / (I) Cooling / (II) Ventilation
C.
Set the fan speed (Min - Med - Max)
C.
Set the fan speed (Min - Med - Max)
D. Choose the desired temperature.
D. Choose the desired temperature.
Delta-Temp Belgium
Delta-Temp Belgium
Lange Ambachtstraat 13, 9860 Oosterzele
Lange Ambachtstraat 13, 9860 Oosterzele
T: +32 (0)9 362 74 87
T: +32 (0)9 362 74 87
E : info@delta-temp.com
E : info@delta-temp.com
www.delta-temp.be
www.delta-temp.be
C
C
D
D

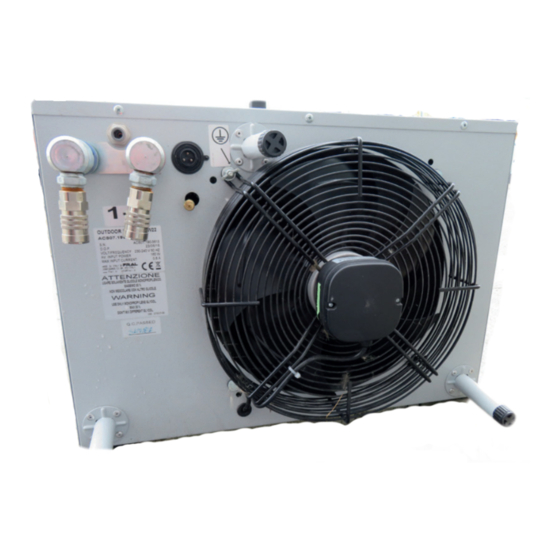

2. Outside unit
2. Outside unit
Put the outside unit in open air, at max. 20m distance
Put the outside unit in open air, at max. 20m distance
from the inside unit.
from the inside unit.
4. Connect tubes and cables on the outside unit
4. Connect tubes and cables on the outside unit
•
• Connect the prefilled glycoltubes (red> red / blue >
Connect the prefilled glycoltubes (red> red / blue >
blue).
blue).
•
• Connect the power supply cable between both units.
Connect the power supply cable between both units.
•
• Insert the condensation tube.
Insert the condensation tube.
•
• Attach the grounding cable.
Attach the grounding cable.
Carl-Still-Straße 19, 45659 Recklinghausen
Carl-Still-Straße 19, 45659 Recklinghausen
Delta-Temp Germany
Delta-Temp Germany
T: +49 800 4048120
T: +49 800 4048120
E : info@delta-temp.de
E : info@delta-temp.de
www.delta-temp.de
www.delta-temp.de
