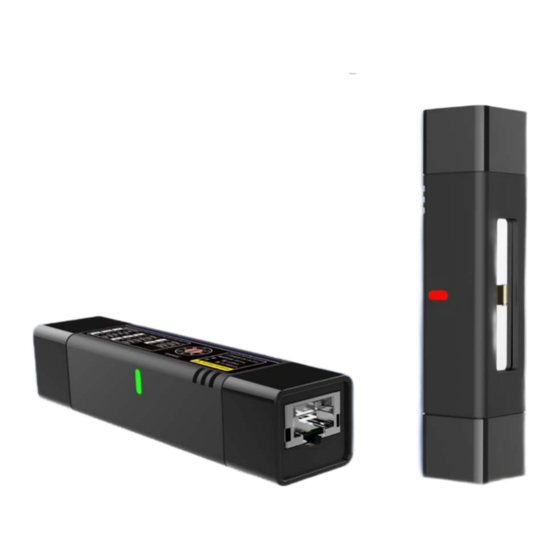

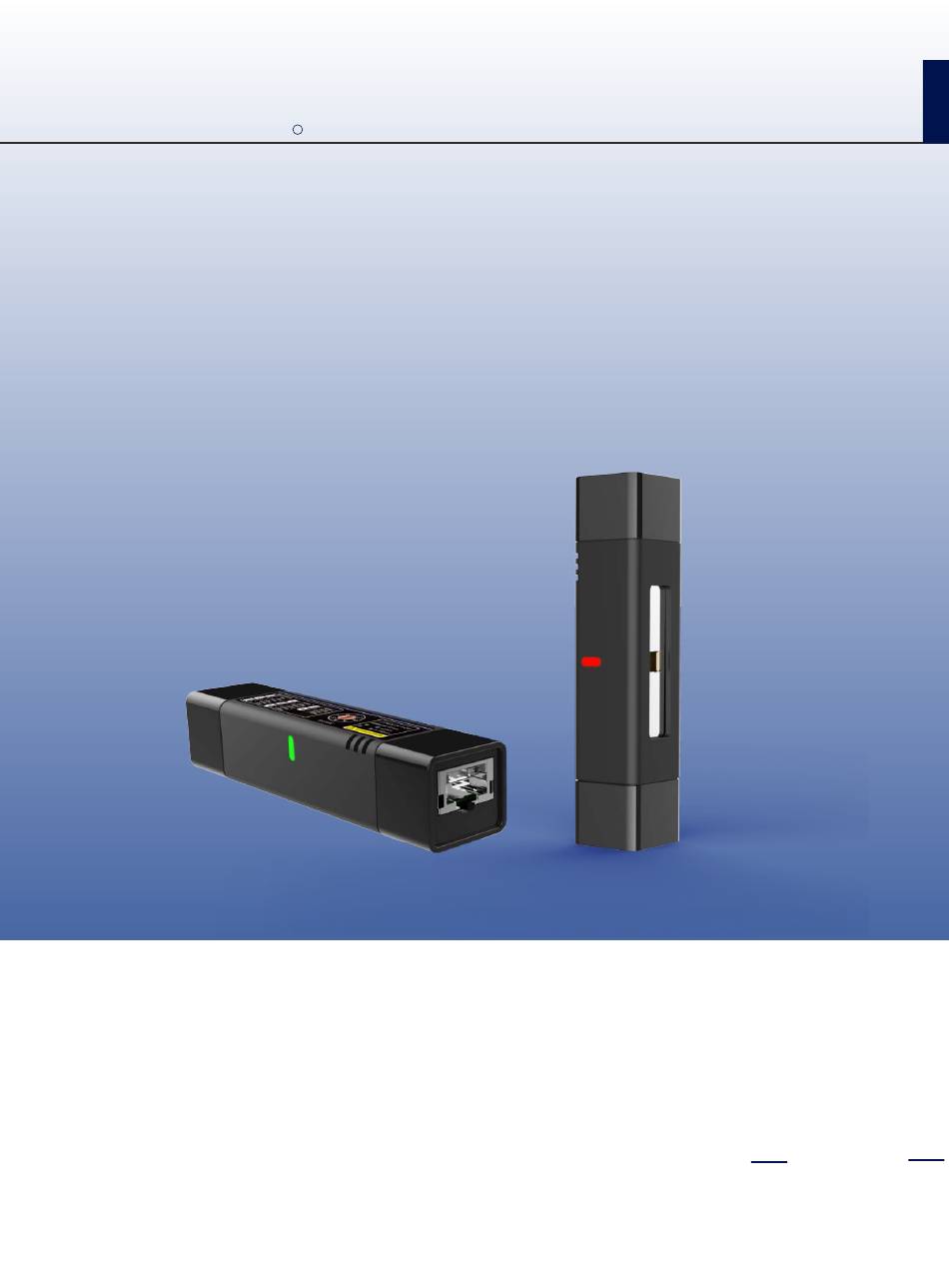

- Page 1 Intelligent Electrostatic Sensor AP&T AP-YV3303 Shanghai Anping Static Technology Co.,Ltd Intelligent Electrostatic Sensor （The second generation） AP&T...
- Page 2 Using non-contact vibration capacitance electrostatic detection technology ... Intelligent Set the electrostatic alarm threshold The electrostatic safety (alarm) threshold can be set by remote control or monitoring software. The red light will alarm if the threshold is exceeded while the threshold alarm indicator will be green if the threshold is within the electrostatic threshold, Online Detect static electricity online automatically...
- Page 3 Closed-loop electrostatic detection, monitoring and elimination system ... The closed-loop electrostatic monitoring and elimination system, formed by detection equipment, elimination equipment, power supply equipment, display equipment and IMS (Ionization Monitoring System), can realize real-time monitoring, data storage, and dynamic display under the control of system software to solve the long-term recording problems of electrostatic monitoring and data collection, which can be customized and developed according to the individual needs of customers, truly achieve increased production capacity, improved efficiency, automatic and intelligent electrostatic monitoring.
- Page 4 Product specifications and technical functions ... Product specifications and technical functions 1）Technical Specifications： Specification one Basic parameter Working voltage DC8-24V Working current ＜ 50mA Sampling time About 1ms Vibration ＜ 1KHz Noise ＜ 5dB RS485(115200bps,8,1,n,n)（≧ 20ms） Signal output Collector open circuit（<50V/100mA） 5、6、9 1、2 Network port definition...
- Page 5 Product Operation Technical Tips • Aim at the LED on the front of the product during operation (the distance should not exceed 1m), first press the unlock key, and then press the corresponding function key to set, the red light flashes when the key is pressed. •...
- Page 6 Mechanical parameters ② Monitoring terminal mechanical parameters： ① Sensor mechanical parameters： Dimensions：102*28.5*22mm（L*W*H） Dimensions：＜ 44*33*85mm（L*W*H） Monitoring terminal net weight：about 400g Net weight：about 49.7g The external dimension of the monitoring terminal is as The external dimension of the sensor is as follows： follows：...
-
Page 7: Calibration Equipment
Product calibration ... Calibration environmental conditions The calibration environmental conditions and requirements are as follows: Contents Model and parameters High voltage BERTAN_205B-20R power supply Plate Material: stainless steel, thickness: 1mm, length and width: 600mm*600mm Dust-free room, temperature: 20°C—23°C, humidity: 40 ﹪ RH—45 ﹪ RH, there Environment is no measurable electric field, magnetic field, positive and negative ions around The same standard device on both sides;... - Page 8 Product testing performance testing ... The test is divided into vertical test and horizontal test. The schematic diagram 9 of the sensor test device is as follows: Electrostatic sensor D3-calibration electrode S1-Insulation bracket D2-High pressure gauge R-Current limiting protection resistor D1-High voltage power supply Figure 9 Schematic diagram of the sensor testing device The vertical test data of the sensor and the standard plate electrode are as follows:...
- Page 9 The horizontal test data of the sensor and the standard plate electrode are as follows: ① Figure 11 shows the test data at different horizontal test distances under a vertical test distance of 500mm, the standard plate electrode of 600mm*600mm stainless steel electrode, and the sensor with the center position of the calibration plate as the coordinate origin: 1200 Calibration plate voltage-0V 10000...
-
Page 10: Online Mode
Operation and precautions... Instructions The plane of the electrostatic detection window of the sensor should be parallel to the surface of the object to be measured, and the detection distance(the standard detection distance specified above: 5mm, 10mm, 25mm, 50mm, 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 700mm) and detection gear should be selected according to the amount of static electricity carried by the charged object and the use environment during using;... -
Page 11: Installation
Steps Set the sensor detection parameters according to the sensor label description: ① Use a Phillips screwdriver with a diameter of 3mm to turn the “DIST” circular DIP switch to select the test distance according to the amount of static electricity carried by the charged object and the use environment. ②... -
Page 12: Specification
Installation and use precautions Precautions： • Please read the operating instruction carefully before using the device in order to use it correctly. • Please check the specifications of the power supply before powering on the product. Any power supply that does not meet the specifications may cause damage or even failure to the product. -
Page 13: Troubleshooting
2. Do not vibrate the equipment strongly when using it which is a precision detector. After-sales service AP-YV3303 intelligent electrostatic sensor has undergone rigorous testing and aging treatment before ex-work. Its performance has completely reached the relevant indicators marked in the usage instruction. AP&T makes a commitment to the customer that any defective parts inspected by AP&T will be repaired or replaced free of charge within one year from the date of purchase. - Page 14 AP&T Professional electrostatic intelligent monitoring/analysis and elimination solution provider 专 业 创 造 价 值 S p ecia lit y C r ea t es Va l u e Shanghai Anping Static Technology Co.,Ltd Tel : +86-21-64517676 Fax : +86-21-64517673 AP&T Postcode : 200233 Website : www.ap-static.com...
