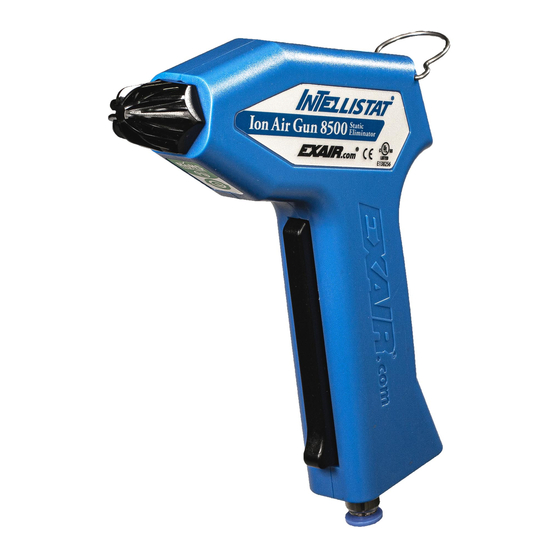

INTELLISTAT ION AIR GUN™ INSTALLATION & MAINTENANCE

COMPRESSED AIR SUPPLY

With proper filtration and separation of dirt, moisture and oil from the compressed air supply, the Intellistat Ion Air
Gun will operate for years without clogging.
Use a 10 micron or smaller filter separator on the compressed air supply (Model 9001 Automatic Drain Filter
Separator). To prevent problems associated with oil, use an oil removal filter (Model 9005 Oil Removal Filter). The oil
removal filter should be used downstream from the automatic drain filter separator. Filters should be used close to each
Intellistat Ion Air Gun, within 10 to 15' (3 to 4.6m) is best.
The Intellistat Ion Air Gun meets OSHA maximum dead-ended pressure requirements. It is designed to use normal
shop air supplies of 5 to 100 PSIG (.3 to 6.9 BAR). For infinite control of flow and force, pressure may be regulated
(Model 9008 Pressure Regulator).

USING THE INTELLISTAT ION AIR GUN

Thread the 24V power supply cable into the electrical port on the handle of the Intellistat Ion Air Gun. Make sure the 3
pins are aligned before threading in completely. Select the appropriate outlet adapter for the 24V power supply, and
plug it into your electrical outlet. Next, push the supplied 6mm airline into the air port on the handle of the Intellistat
Ion Air Gun. Connect the other end to a source of clean dry compressed air. The Intellistat Ion Air Gun is now ready
for operation.
To operate the Intellistat Ion Air Gun properly, hold it approximately 6 inches away from the surface to be neutralized
and blown off. Aim the nozzle and pull the trigger. The air flow and ionization will begin simultaneously. The green
LED on the back of the gun will illuminate to let the user know it is operating properly. If the red LED is illuminated,
and the green LED is off, there is an issue. Refer to the troubleshooting section.
The Intellistat Ion Air Gun should be used at a point after the material has received its static charge. If the treated
material is subjected to additional friction, it may build up another static charge and require additional ionization.
The Intellistat Ion Air Gun should be aimed so that the column of air flows across the material to be treated. The
ionized air will eliminate the static charge from the surface it touches. Holding the Intellistat Ion Air Gun close to the
surface will remove the charge rapidly and is ideal for smaller areas. When the static charge is extremely high, it may
be necessary to ionize all surfaces of the part.
The Intellistat Ion Air Gun Should Not Be Used In An Explosive Or Flammable Area.
