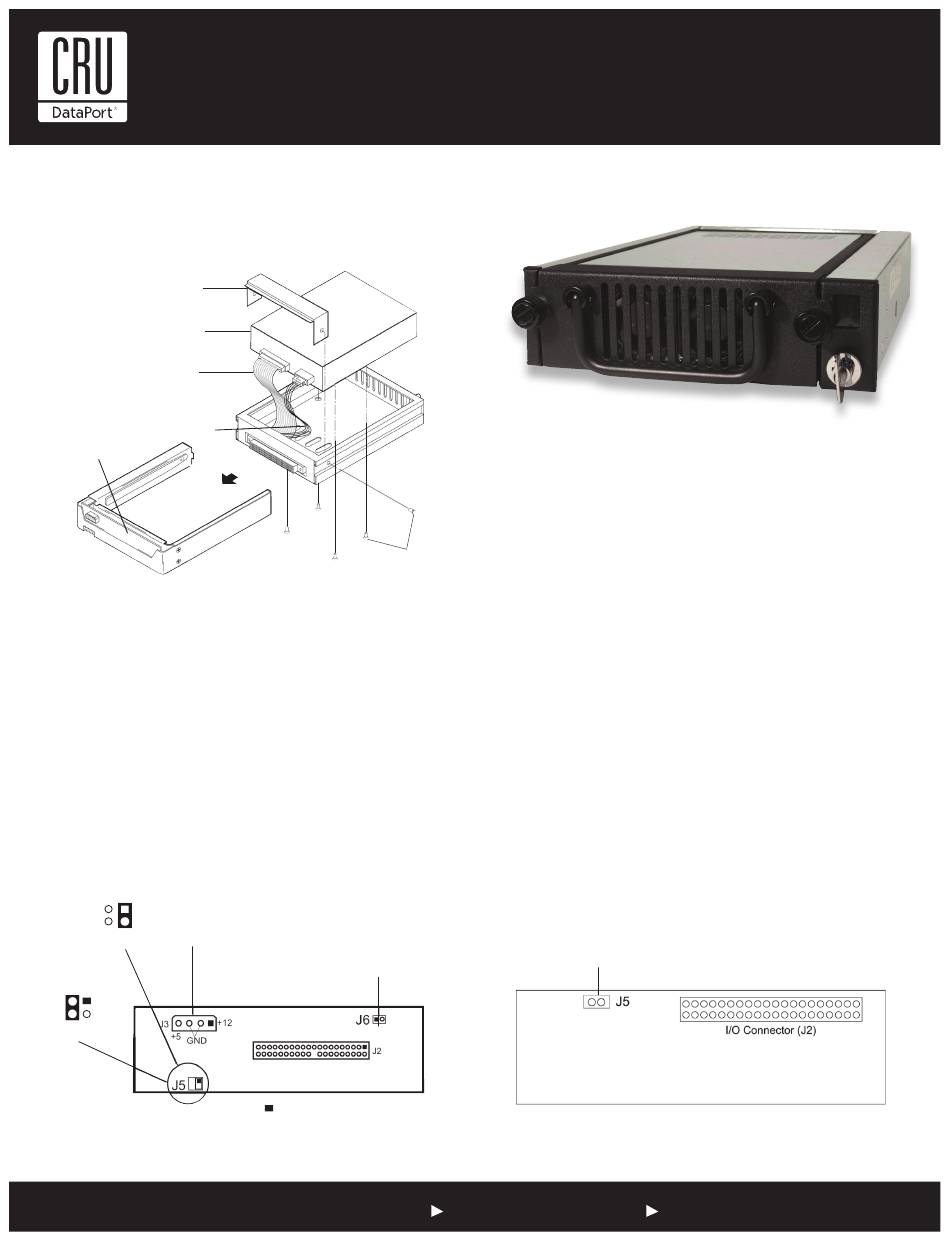

Data Express DE200 ATA/133 Install Guide
Removable Ultra ATA/133 Drive Enclosure
Cable Cover
(provided)
Disk Drive
(not included)
I/O Cable
Power Cable
Receiving Frame
Motherboard
Receiving
Frame
Drive Installation Overview
Master/Slave Selection Jumper (J5)
Master Drive configuration (Factory Default). Forces master drive
configuration on receiving frame. Change jumper to set slave
drive configuration.
Device Spin Down/Up Timer (J6)
Jumper installed (Factory Default) enables device spin down/
up visual indicator. Receiving frame unit ID number display will
flash to indicate device spin down/up.
Slave Drive
Select (1)
DC Power
J5
Master Drive
Select (0)
(Factory Default)
J5
Receiving Frame Motherboard (Rear View)
Drive
Carrier
#6-32 Phillips
F.H. Screw
(6 total)
Device Spin Down/Up Jumper (J6)
On (factory default) = Device Spin
Down/Up Activity Indicator Enabled
Off = Device Spin Down/Up
Activity Indicator Disabled
= Pin 1
1-800-260-9800
Rugged, Reliable, Mobile, Secure
Master/Slave Configuration Jumper J5 (Receiving Frame
Motherboard)
In most cases, the drive will be factory-configured as a Master
Ultra ATA133 drive using a jumper plug on the drive itself. No
configuration changes are required. For multiple drive configura-
tions, it is necessary to set the first Ultra ATA133 drive as Master
and the second Ultra ATA133 drive to Slave. This can be done
by changing the jumper on the Ultra ATA133 drive itself (refer to
your drive manufacturer documentation for further information).
Select the Master/Slave configuration on the rear of the receiving
frame by placing a jumper on the appropriate J5 pins. Remove the
jumper if you wish to use the Unit ID Select switch on the receiv-
ing frame to configure the Master/Slave drive selection.
NOTE: The unit ID select switch configures the unit ID
number display only. The master/slave setting must be set
on the drive itself (refer to the drive manufacturer's docu-
mentation for further information).
Drive Activity Indicator
Connector (J5)
Drive Carrier Circuit Board
www.CRU-DataPort.com
TM
Advertisement
Table of Contents
Related Manuals for CRU Dataport DE200 ATA/133
Summary of Contents for CRU Dataport DE200 ATA/133
- Page 1 Rugged, Reliable, Mobile, Secure Data Express DE200 ATA/133 Install Guide Removable Ultra ATA/133 Drive Enclosure Cable Cover (provided) Disk Drive (not included) Drive Carrier I/O Cable Power Cable Receiving Frame Motherboard Receiving Master/Slave Configuration Jumper J5 (Receiving Frame Frame Motherboard)
- Page 2 Rugged, Reliable, Mobile, Secure Drive Activity Indicator Connector J5 (Drive Carrier Circuit Board) NOTE: The lock on the Data Express serves as a power switch. It must be engaged (turned counterclockwise) for the Jumper removed (Factory Default) disables drive activity indicator. Data Express to power up and function properly.
