Summary of Contents for Wilcoxon PA10A

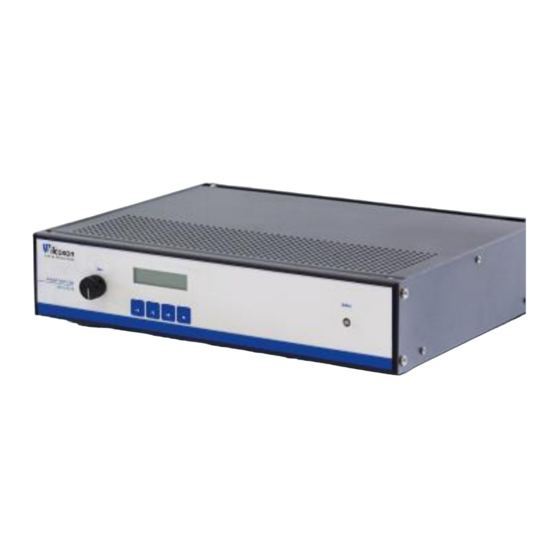

- Page 1 POWER AMPLIFIER PRODUCT MANUAL | MODEL PA10A wilcoxon.com | 301 330 8811...
- Page 2 POWER AMPLIFIER PA10A PRODUCT SUPPORT For answers to questions about the PA10A power amplifier, consult this manual. For additional product support, contact Wilcoxon Sensing Technologies at 301-330-8811, 9 a.m. to 5 p.m. EST. If it is more convenient, email info@wilcoxon.com.
- Page 3 4 × spare fuse (2 × 5 A for 115 V, 2 × 3 A for 230 V) 2 × Rack-mount ear 4 × Self-adhesive rubber foot Please inspect and retain all packing materials. Contact Wilcoxon Sensing Technologies for additional accessories. Model PA10A | Wilcoxon Sensing Technologies Page 3...
-
Page 4: Table Of Contents
4.7 HANDLING ERROR CONDITIONS ..................17 5. EXAMPLE USES FOR SMART FEATURES ............18 5.1 EMERGENCY SHUT-OFF BUTTON ..................18 5.2 TEMPERATURE CONTROLLED AUTO SHUTOFF ............... 18 6. TECHNICAL SPECIFICATIONS ................19 7. TROUBLESHOOTING GUIDE .................. 25 Model PA10A | Wilcoxon Sensing Technologies Page 4... -
Page 5: Introduction
1. INTRODUCTION Congratulations on your purchase of a PA10A power amplifier! This manual covers important information related to the use and operation of the PA10A power amplifier. Please review this manual carefully as it contains important information regarding the safe and proper operation of the amplifier. -
Page 6: Overview
2. OVERVIEW The PA10A power amplifier has been designed for easy operation via front panel controls. External input and output connections are found on the rear panel. Internal over-temperature and over-current protection assure continuous operation at full rated power without concern for damage to the amplifier. -
Page 7: Rear Panel Features
At this point (position 2) the gain is 0. To increase the gain, keep rotating the knob clockwise. To decrease the gain, rotate the knob counterclockwise. To switch back to the “mute” position, rotate the knob counterclockwise until the click. Model PA10A | Wilcoxon Sensing Technologies Page 7... -
Page 8: Lcd Display Buttons
2.4 LCD Display Buttons The PA10A power amplifier has an intuitive user interface. For all user-interactive screens, the top line of the LCD will display the relevant status or information, while the bottom line of the LCD will display the functions of the buttons “F1”... -
Page 9: Installation
The amplifier should never be operated without proper earth-grounding or with either of its covers removed. 3.1 Location Considerations The PA10A power amplifier is designed to be used on a standalone workbench or mounted on a standard 19-inch, 2U instrumentation rack (480 mm × 88.9 mm [19 in. × 3.5 in]). -
Page 10: Fuse Change And Voltage Conversion
When changing fuse: Replace the fuse on both sides of the fuse holder with a new 3AG fuse of the same rating (5A 250V for 115VAC or 3.0A 250V for 230VAC) (Figure 3-5). Figure 0-5 Model PA10A | Wilcoxon Sensing Technologies Page 10... -
Page 11: The Power Amplifier, Matching Network, And Shaker Cables
All Wilcoxon shakers except the F7-1 piezoelectric shaker are standardized for use with the Wilcoxon PA10A power amplifier and include the cables necessary to do so. The PA10A is not capable of driving the F7-1 to its full frequency range and should not be used unless measurements are only being made up to 40 kHz. As such, the N8HFS matching network, which is designed for use with the F7-1, includes a cable to mate with the Wilcoxon WST7B3 power amplifier. - Page 12 Matching Standard cable Shaker matching network (N8HFS network connecting to model cable mates with WST7B shaker None None R1-8C-8C-J93-10 None None R4M-8C-8C-J9B-10 None None R4M-8C-8C-J9B-10 R22-8C-8C-J9B-5 N7FS R4-4M-J9-10 R22-8B-8B-J9B-5 N8HFS R4-4M-J9-10 F7-1 Model PA10A | Wilcoxon Sensing Technologies Page 12...
-
Page 13: Operation
The LCD should now display the status screen. 4.2 Powering Down To properly power down the amplifier, first reduce any external signal to the amplifier to zero. Model PA10A | Wilcoxon Sensing Technologies Page 13... -
Page 14: Changing Display Modes
4.4 Muting Temporarily The temporary mute function is designed for situations in which it is more convenient to mute the amplifier for a short amount of time without having to reset the gain. Model PA10A | Wilcoxon Sensing Technologies Page 14... -
Page 15: Adjusting Settings
Aux 1 input. Example Use: Protect the shaker by sensing a digital temperature sensor that outputs a high or a low signal when temperature is above a set threshold Model PA10A | Wilcoxon Sensing Technologies Page 15... - Page 16 The interlock settings menu allows you to set how the interlock error is triggered. When set to “Auto”, the amplifier automatically determines whether to trigger on low or high. This is the default setting. Model PA10A | Wilcoxon Sensing Technologies Page 16...
-
Page 17: Handling Output Clipping
F1 ( ) to clear the error message. If the gain knob is not turned to “mute,” it will have to be turned to “mute” first before the amplifier can be turned back on. Model PA10A | Wilcoxon Sensing Technologies Page 17... -
Page 18: Example Uses For Smart Features
Select High if you wan the amp to shut off when the temperature gets high, or select Low for shutoff when the temperature gets low. Model PA10A | Wilcoxon Sensing Technologies Page 18... -
Page 19: Technical Specifications
6. TECHNICAL SPECIFICATIONS Specifications are subject to change. Consult Wilcoxon Sensing Technologies for critical applications. Unless otherwise noted, all specifications assume operation with sine signal input at 25°C (77°F). The amplifier is specified to operate from 5°C to 40°C (41°F to 104°F). - Page 20 115V : 5A / 250V, fast-acting Rating 230V : 2.5A / 250V, fast-acting Over-current protection fuse 3AG: 0.25 in. diameter × 1.25 in. length Size (6.35 mm diameter × 31.75 mm length) Model PA10A | Wilcoxon Sensing Technologies Page 20...
- Page 21 1 × #6 screw terminal (uses “Interlock –“ terminal as ground) Aux 1 Aux 2 Earth 1 × #6 screw terminal ground Cooling Natural convection 5°C – 40°C (41°F – 104°F) Operating temperature Model PA10A | Wilcoxon Sensing Technologies Page 21...
- Page 22 Performance Graphs Typical Max Gain 2100E21-400 and 2100E21-C Typical Max Gain PA10A no load Ω Ω 1000 10000 100000 Typical distortion (THD + noise) 2Ω, 50W no load 0.01 0.001 1000 10000 100000 Model PA10A | Wilcoxon Sensing Technologies Page 22...
- Page 23 The measurements represent the worst-case conditions of temperature. The shaded areas show that under some conditions, higher output levels can be achieved, with lower distortion than indicated by the orange lines. PA10A sine power output capability (1kHz) 2100E21-400 and 2100E21-C sine power output capability (1 kHz) 4Ω...
- Page 24 “0.0 Ar”; this occurs with 30% output high gain or high frequency). 60% output full output 1000 10000 100000 Model PA10A | Wilcoxon Sensing Technologies Page 24...
-
Page 25: Troubleshooting Guide
7. TROUBLESHOOTING GUIDE Please use this guide to resolve any problems or errors that occur when using the PA10A amplifier. Contact Wilcoxon Sensing Technologies for any additional help. Phone: 301-330-8811 (9 a.m. to 5 p.m. EST) Fax: 301-330-8873 E-mail: info@wilcoxon.com... - Page 26 Wilcoxon Sensing Technologies Phone: 301.330.8811 www.wilcoxon.com info@wilcoxon.com...
