- Page 1 INSTEON Garage Door Control Kit 74551 Quick Start Guide...

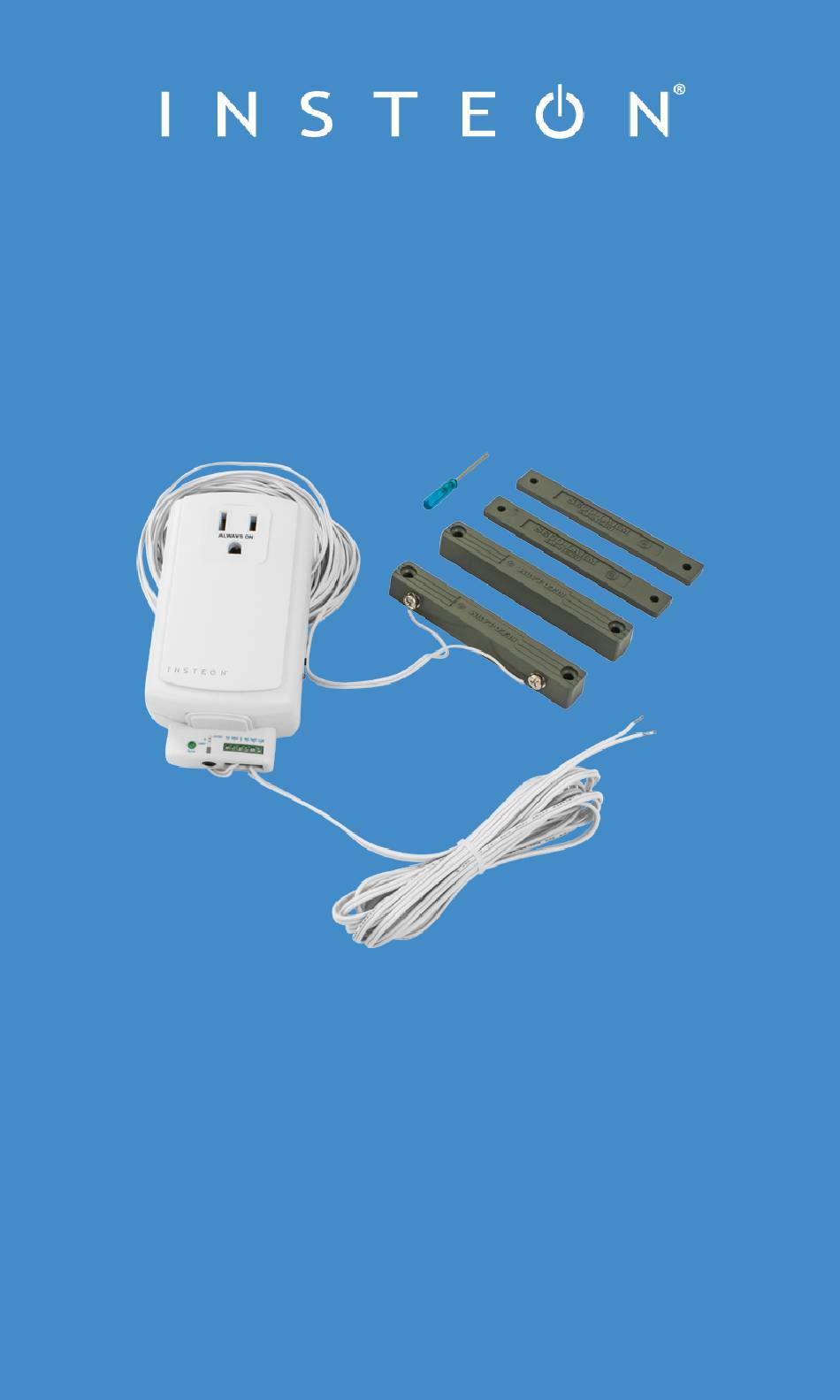

- Page 2 INSTEON Garage Door Control Kit Always On ALWAYS ON Outlet Status LED On/Off Set Button Door Sensor Magnet Spacer (2x) Motor Wire...
- Page 3 If your garage door system uses a multi- function wired remote, contact your manufacturer about using a dry-contact switch. Exercise Caution Only remotely close a garage door when it is safe. Add an INSTEON IP Camera or IR beam device to enhance safety.
-
Page 4: Installation
Installation Close your garage door and disconnect the garage door opener from power. - Page 5 Connect the bare wires leading from the I/O Linc to the garage door motor terminals. ALWAYS ON If wires are already connected to the terminals, add the I/O Linc wires.
- Page 6 Mount the magnet to the door and the sensor to the door frame. The best location is centered, near the opener rail. If necessary, use spacers to adjust sensor height. Up to ½”...
- Page 7 Route and secure the sensor wires along the opener rail back to the motor. Plug the I/O Linc and garage door motor into power. Test the Garage Door Kit by tapping the set button on the I/O Linc module.
- Page 8 ALWAYS ON...
- Page 9 Linking to the Hub Follow the on-screen instructions to add the I/O Linc to your INSTEON Hub. If not using the Hub, refer to the instructions that came with your product.
- Page 10 When prompted, press and hold the set button on the I/O Linc. ALWAYS ON For the complete Owner’s Manual and more, visit: insteon.com/support MANUAL Protected under U.S. and foreign patents (see www.insteon.com/patents) Portégé par des brevets américains et étrangers (consultez www.insteon.com/patents) ©2013 INSTEON RAW-1302 Rev 06.04.13...
