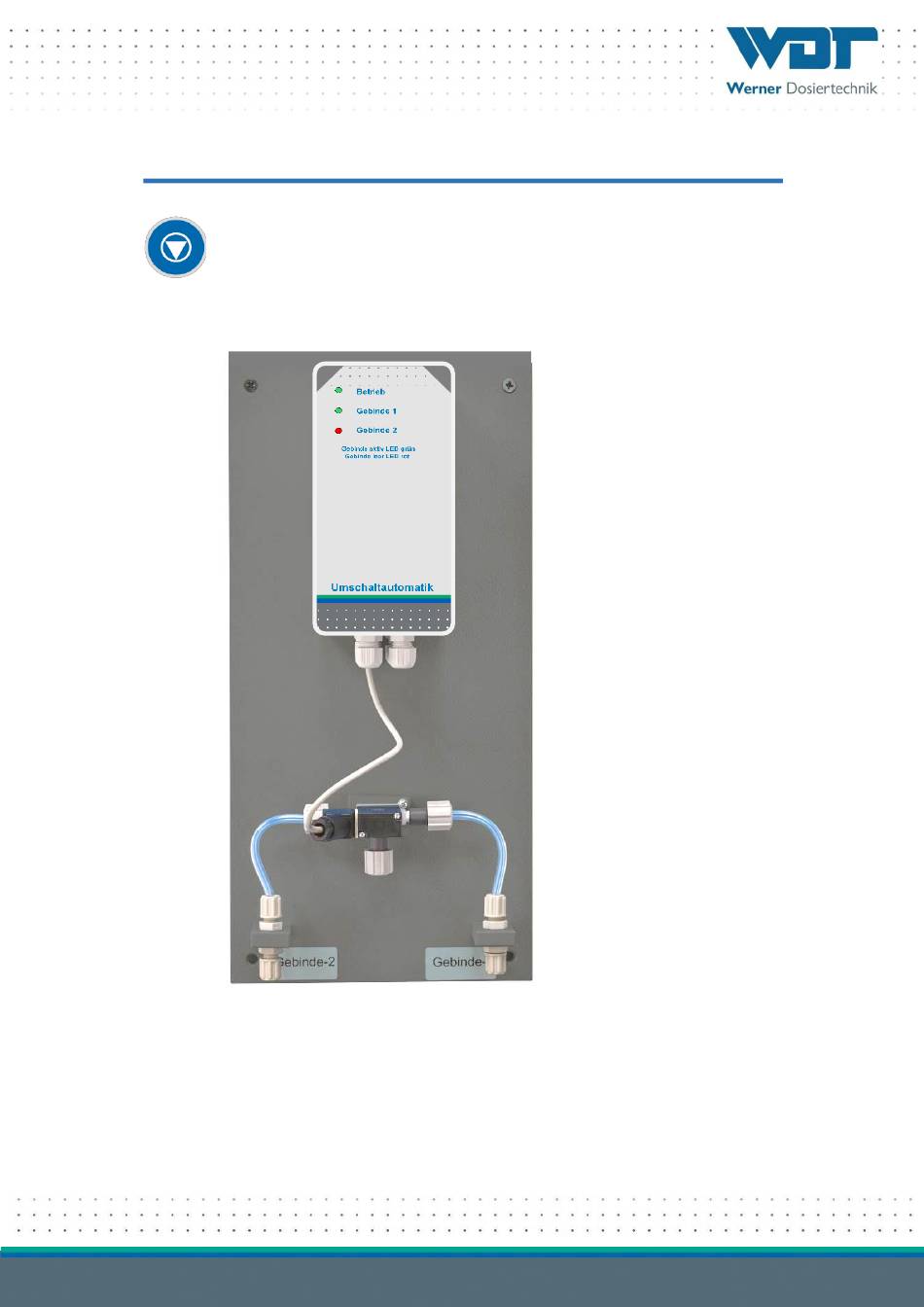

- Page 1 Operating and installation instructions Switch-Over Automatic Type UMAP NT35-R Item No.: --- OI No.: BA SW 017-03 Umschaltautomatik Typ UMAP NT35-R EN.docx Language: EN...
-
Page 2: Table Of Contents
Reproduction of any kind and translation into other languages, even in excerpts, are only permitted with the express authorisation of the company WDT - Werner Dosiertechnik GmbH & Co. KG. Subject to technical modifications These operating instructions are an English translation of the original German version by the company WDT. -
Page 3: About These Instructions / General
Mandatory sign Use face protection! Mandatory sign Use protective gloves! In accordance with DIN EN 374, protective gloves against chemicals and microorganisms. Index: 03 Date modified: 28/03/2022 OI No.: BA SW 017-03 Umschaltautomatik Typ UMAP NT35-R EN.docx Page 3 of 14... -
Page 4: Warranty
All WDT devices and equipment are manufactured using modern production methods and are subject to comprehensive quality control. However, should there be a reason for complaint, any compensation claims shall be directed to the company WDT in accordance with the general terms and conditions of warranty General terms and conditions of warranty The company WDT assumes a 2-year warranty, starting with the commissioning, up to 27 months after delivery;... -
Page 5: Safety
When storing chemicals, the chemical manufacturer's safety data sheets must be complied with. Fore more information, see the chemical manufacturer's safety data sheets! Index: 03 Date modified: 28/03/2022 OI No.: BA SW 017-03 Umschaltautomatik Typ UMAP NT35-R EN.docx Page 5 of 14... -
Page 6: Product Description - Functional Description - (Scope Of Delivery)
In addition, the time window for changing the empty container increases considerably. Index: 03 Date modified: 28/03/2022 OI No.: BA SW 017-03 Umschaltautomatik Typ UMAP NT35-R EN.docx Page 6 of 14... -
Page 7: Identification Of The Device / Identification Plate
Pay attention to the chemical suppliers’ safety data sheets! In addition, please pay attention to the provision regarding the storage of chemicals TRGS 515. Index: 03 Date modified: 28/03/2022 OI No.: BA SW 017-03 Umschaltautomatik Typ UMAP NT35-R EN.docx Page 7 of 14... -
Page 8: Installation / Commissioning / Operation
Plug in the switch-over automatic; caution, the dosing pump may start! After a power failure, suction continues at the most recently activated container. Index: 03 Date modified: 28/03/2022 OI No.: BA SW 017-03 Umschaltautomatik Typ UMAP NT35-R EN.docx Page 8 of 14... -
Page 9: Description Of The Control
Insert the suction lance into the full canister all the way to the bottom and close it with the screw cap. e) Close the empty container and safely dispose of it. Index: 03 Date modified: 28/03/2022 OI No.: BA SW 017-03 Umschaltautomatik Typ UMAP NT35-R EN.docx Page 9 of 14... -
Page 10: Maintenance, Care, Faults
Both containers No switchover; collective fault on Replace both containers Container 2 lights up empty (at least one); Control unit starts again Index: 03 Date modified: 28/03/2022 OI No.: BA SW 017-03 Umschaltautomatik Typ UMAP NT35-R EN.docx Page 10 of 14... -
Page 11: Decommissioning - Storage - Disposal
In case of doubt, information may be obtained from the authorities responsible for disposal at your location. If this is not possible, dispose of the parts/substances as hazardous waste. Index: 03 Date modified: 28/03/2022 OI No.: BA SW 017-03 Umschaltautomatik Typ UMAP NT35-R EN.docx Page 11 of 14... -
Page 12: Documents
Switch-Over Automatic, type UMAP NT35-R 7 Documents 7.1 Declaration of conformity Index: 03 Date modified: 28/03/2022 OI No.: BA SW 017-03 Umschaltautomatik Typ UMAP NT35-R EN.docx Page 12 of 14... -
Page 13: Wiring Diagrams
Fuses on the control boards must only be renewed once the power has been disconnected and secured against being reactivated! Index: 03 Date modified: 28/03/2022 OI No.: BA SW 017-03 Umschaltautomatik Typ UMAP NT35-R EN.docx Page 13 of 14... -
Page 14: Spare Part List
19569 Hose connection 4x1-UNF1/4-28 14492 Device connector for switchover valve Fluidos Peet 29066 Switchover valve 3/2-way 24 V/DC 8 Appendices Personal notes Index: 03 Date modified: 28/03/2022 OI No.: BA SW 017-03 Umschaltautomatik Typ UMAP NT35-R EN.docx Page 14 of 14...
