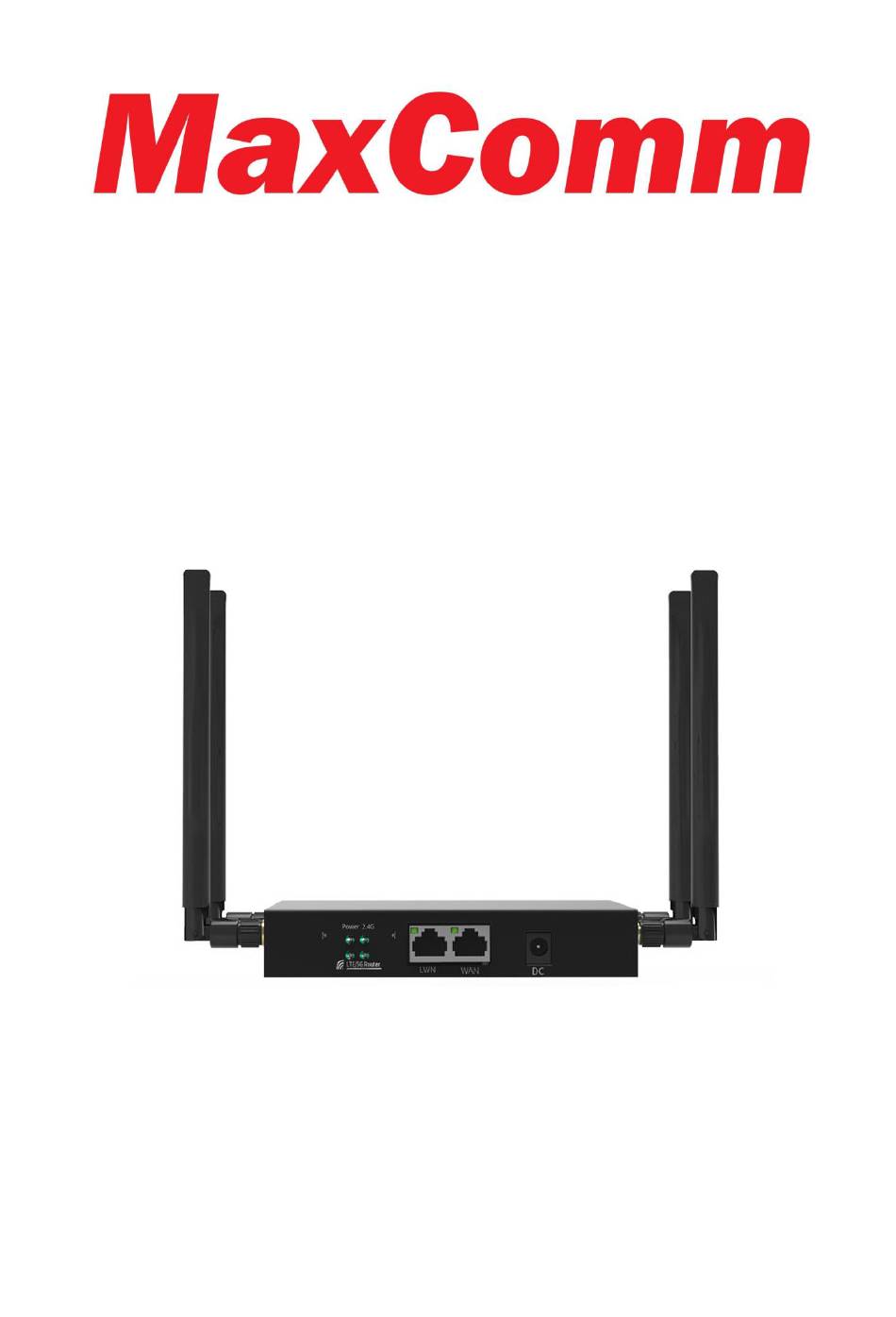

- Page 1 4G LTE Industrial DTU Router Model : M-150 MaxComm Co.,Ltd...
-
Page 2: Table Of Contents
目录 1 Summary ........................... 3 1.1 Brief of Overview ....................3 1.2 Reference standard ....................3 2 Product photo ........................4 3 Product main feature ......................4 4 Hardware function ......................5 4.1 Hardware interface introduction ................5 4.2 Indicator function introduction ................5 4.3 Hardware platform introduction ................ -
Page 3: Summary
M-150. M-150 is an industrial DTU with 4G function, used for data transmission services of industry users, supports transparent data transmission, access to the Internet through 4G mobile communication dial-up or 100Mbps WAN port dial-up, and then share the Internet network through wireless WiFi 4 and 100Mbps wired LAN . -
Page 4: Product Photo

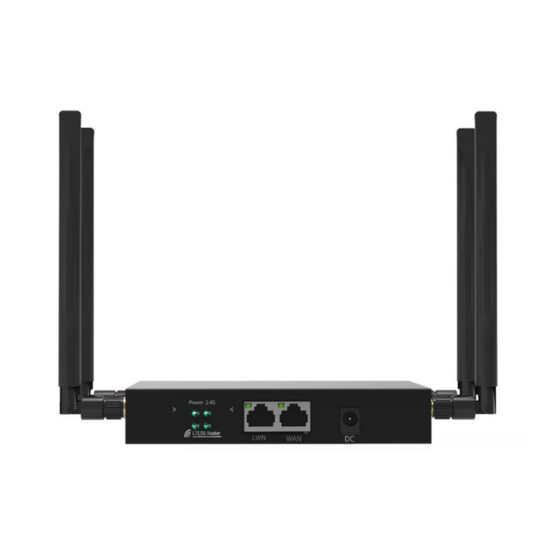

2 Product Photo: 3 Main features of the product: Using MT7628DA solution, MIPS24KEc architecture CPU, the main frequency is up to 580MHZ MT7628DA chip integrates 2.4G WIFI function, the rate is up to 300Mbps MT7628DA chip integrates 64MB DDR2, with 8MB Nor Flash 1WAN, 1LAN full 100M adaptive network ports, support auto flip (Auto MDI/MDIX) Support one RS232, one RS485 serial communication interface, support anti-static and anti-surge design... -
Page 5: Hardware Function
dead angle This product supports the hardware watchdog function, and the device will automatically restart when the routing system or 4G module fails 4 Hardware function 4.1 Hardware interface introduction 1 WAN port, 100Mbps support auto flip (Auto MDI/MDIX) Compliant with IEEE 802.3/802.3u Network ports 1 LAN port, 100Mbps supports auto flip (Auto MDI/MDIX) -
Page 6: Hardware Platform Introduction
communicates with the Internet normally, and it does not turn on when the device cannot access the Internet. The upper row of left LED lights 4.3 Hardware platform introduction MT7628DA MIPS24KEc architecture CPU, the main frequency is Processor up to 580MHZ 2.4G WIFI MT7628DA integrates 2.4G WIFI function... -
Page 7: Power Supply
VIN=12V，T A = Work current 25°C Please use the MaxComm standard power adapter to supply power to this product. If the MaxComm standard power supply is not used, please supply power to this product in strict accordance with the above power specifications,... -
Page 8: Mobile Telecommunication
supply to supply... -
Page 9: Software
power, you must take anti-static and anti-surge countermeasures. 7 4G mobile communication function This product has a built-in mini-PCIE interface, which can be used to expand 4G mobile communication functions, and the built-in mini-PCIE interface supports USB2.0 bus. The specific frequency band supported by 4G mobile communication is determined by the selected 4G module. - Page 10 The above is the general default configuration information of the product. The WIFI SSID may be different when using our OS firmware or OPENWRT firmware, but the default IP and WEB login name and password of this product remain unchanged. For other detailed software functions, please refer to the product description.
