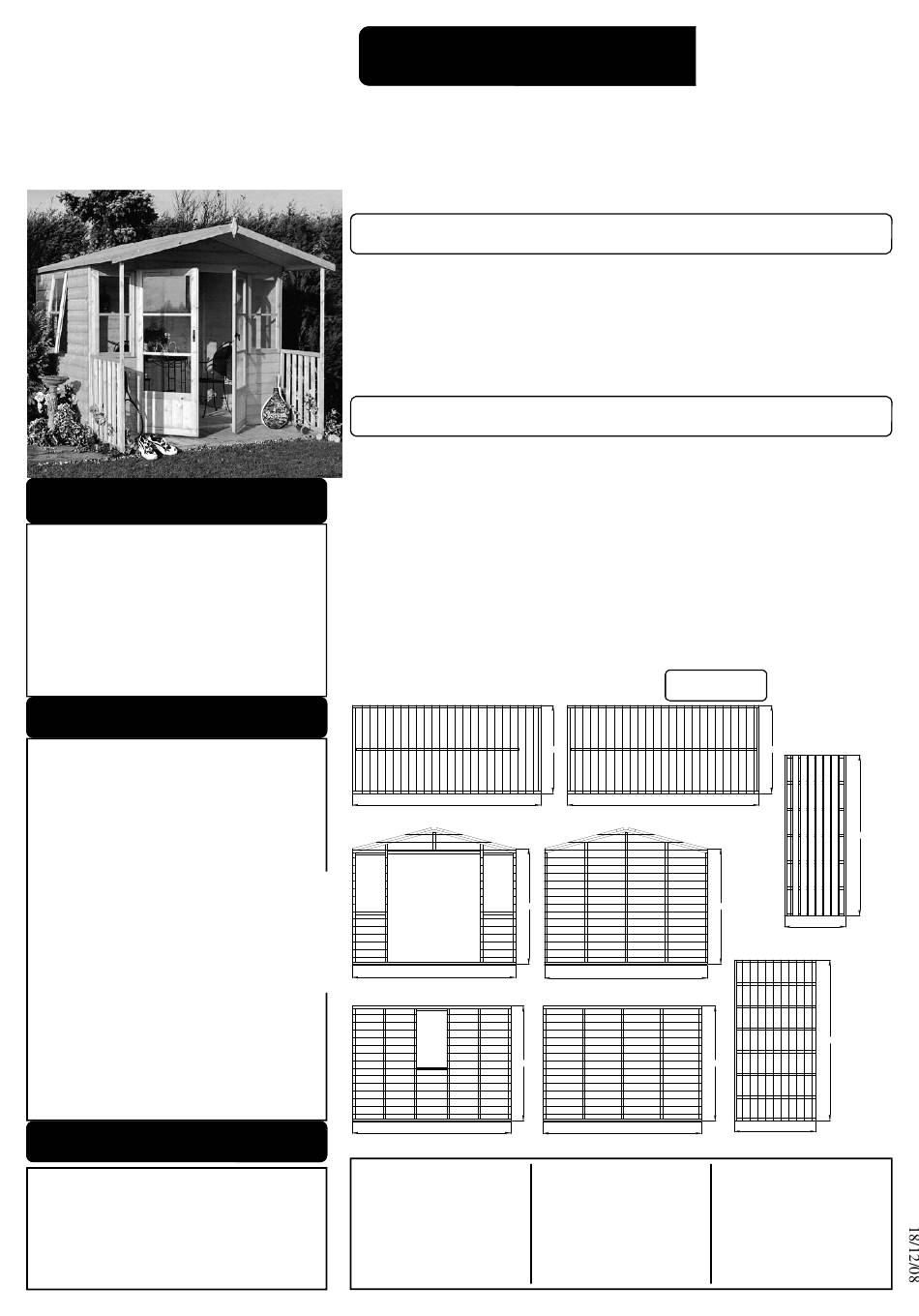

Milton 8x8 Assembly Instructions

TOOLS REQUIRED
Hammer
●
Step ladder
●
Sand paper
●
Battery-powered drill/screwdriver
●
8mm drill
●
Pencil
●
Tape measure
●
Gloves
●
Sharp knife and saw
●
IMPORTANT!
PLEASE READ PRIOR TO ASSEMBLY OF
THE BUILDING
EVERY PRECAUTION IS TAKEN TO
ENSURE THAT YOUR BUILDING HAS NO
ELEMENT INCORRECTLY PLACED OR
POSSIBLY HAZARDOUS, HOWEVER
PRIOR TO USE PLEASE CHECK ALL
SURFACES FOR THE FOLLOWING:
1 RAISED GRAIN, SPLINTERS: sand
down timber to smooth finish
2 NAIL/SCREW/PIN HEADS PROUD: tap
home to be flush with surface of timber
3 DAMAGED SCREW HEADS
RESULTING IN SHARP SPLINTERS OF
METAL: replace
4 SHARP ENDS OF NAILS/ SCREWS/
PINS PROTRUDING THROUGH THE
PANEL: remove and reposition.
5 ENSURE ALL PARTS ARE SECURED
AGAINST REASONABLE FORCE:
remove and refit
6 ENSURE THERE ARE NO LOOSE
PARTS: remove and refit/discard
We recommend that protective
gloves be worn throughout
PLEASE NOTE
Wood is a natural product and is therefore
prone to changes in appearance, including
some warping, movement and splitting,
particularly during unusual climatic conditions
(long hot or wet spells of weather). As a natural
occurrence this is not covered by a guarantee.
Assembly of 8x8
Thank you and congratulations on the purchase of your
We believe that this product will give you many years of excellent service. This
is a natural product manufactured to a high standard therefore if you have any
queries or experience any difficulties then please contact our customer service
hotline
Preparation of base
We recommend that the base onto which your building will stand should be at least
75mm larger in each direction than the total floor size of the building.
Actual floor area of the building (not including verandah): 2390x2390 (8'x8')
Total height clearance: 2096mm
The chosen position in your garden for the siting of the building should be
excavated to a depth of 75mm to allow a base of sand, on to which paving slabs
can be evenly laid - THEY MUST BE LEVEL AND FIRM.
Treatment/care of your Garden Building
Treat with a suitable decorative wood finish immediately. We recommend that all
timber pieces be treated again prior to assembly and again within 3 months of
assembly. We further recommend that all pieces are treated again at least annually
or as frequently as the instructions on the product used recommends.
We would suggest that all wall panels be treated in an upside-down position to
allow the finish/treatment to ingress into the tongue and groove jointing.
We would also remind you that you would rarely (if ever) be able to re-treat the
underside of the floor following assembly. We strongly recommend that the
underside of the floor is treated an absolute minimum of twice (not including pre-
treatment).
Garden buildings are not waterproof, therefore on assembling building we
recommend using a silicon based sealant between wall panels and between
wall panels and floor.
2760
ROOF PANEL QTY 2
1831
2390
FRONT PANEL
1834
2320
WINDOW SIDE PANEL
QTY DESCRIPTION
6 Door glazing 544x373
6 Window glazing 360x373
13 Beading 553mm
13 Beading 363mm
25 Beading 377mm
4 Plain fascia 1420
4 Cover strip 1840
Parts List
1312
3390
VERANDAH ROOF QTY 2 (IF ORDERED)
2390
BACK PANEL
1834
2320
PLAIN SIDE PANEL
2 Diamonds
1 Gate latch set
36 60mm screws
10 25mm black screws
32 40mm nails
160 Felt nails
96 15mm panel pins
1 Felt roll 10mtr x 1mtr
garden building.
EXTERNAL VIEW
OF PANELS
1312
2390
1831~
900
VERANDAH FLOOR
(IF ORDERED)
2390
1195
FLOOR PANEL QTY 2
VERANDAH (IF ORDERED)
2 Balustrade rails
4 'L' shaped brackets
4 60mm screws
8 25mm screws
3 Felt roll 4mtr x 1mtr
