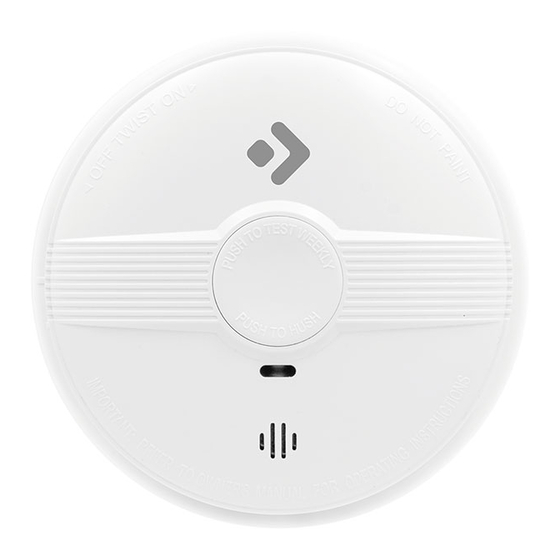

- Page 1 GSM Smoke Detector User Manual...
- Page 2 If you are assembling this equipment for use by others, you must leave this manual - or a copy of it - to the end user. Device manufacturer Ferguson Sp. z o.o. is not liable for damages resulting from use contrary to the intended use.
- Page 3 CONTENTS OF THE PACKAGE PART NAME QUANTITY SMOKE DETECTOR 1 PC MOUNTING BRACKET 1 PC SCREW 2 PCS ANCHOR PLUG 2 PCS USER MANUAL 1 PC test and mute button smoke detector mounting bracket screws anchor plug user manual 1. THE MOST IMPORTANT FEATURES The device has two batteries •...
- Page 4 2. IMPORTANT INFORMATION ABOUT SAFETY! PLEASE READ THESE IN- STRUCTIONS AND KEEP THEM. • Do not remove or disconnect the communication module battery to mute a false alarm. In this case, the detector will lose its alarming features. Ventilate the area around the detector to mute the detector or press and hold the test button for 3 seconds.
- Page 5 to 300 mm (0.3 m) below the ceiling above the level of doors and other openings. • In rooms with sloped, canopy or gable ceilings, install smoke detectors on the ceiling at a distance of 900 mm (0.9 m) from the highest point of the ceiling. Be aware that the “dead zone” at the top of the ceiling may prevent smoke from reaching the alarm in time and thus not provide an early warning of the danger.
-
Page 6: Locations To Avoid
4. LOCATIONS TO AVOID It is not recommended to place smoke detectors: • In air flows from fans, radiators, doors, windows, etc. that could draw smoke away from the de- tector. • In areas with high humidity, such as bathrooms and showers, or where the temperature exceeds 39°C (100°F) or drops below 5°C (40°F), as high humidity can trigger a false alarm. - Page 7 5. HOW TO INSTALL A SMOKE DETECTOR • Break the locking pins out of the mounting bracket. These pins are used to protect the detector against tampering. • Draw a 100 mm (10 cm) horizontal or vertical line on the ceiling or wall in the area where the smoke detector is to be located (see chapter 3 WHERE TO PLACE THE SMOKE DE- TECTOR).
-
Page 8: False Alarm Control
6. LED INDICATORS AND SOUND SIGNALS STATUS LIGHT SIGNAL SOUND SIGNAL Normal operation Red LED flashes every 53 seconds None Test status Red LED flashes quickly Short, fast beeps Alarm status Red LED flashes quickly Short, fast beeps Mute mode Red LED flashes every 10 seconds None Low battery... -
Page 9: Maintenance And Cleaning
• Press and release the test button to test the sen- sor. The sensor will emit a loud and short beep. • If the fire alarm does not sound, check if the smo- ke detector is properly secured to the mounting bracket. -
Page 10: Troubleshooting
WHERE TO PLACE THE SMOKE DETECTOR. 11. MOBILE APPLICATION • Download the Ferguson Home mobile application from the Play Store (Android) or the App Store (iOS) depending on the mobile device you have. • After installing the application on your device, start the process of adding the GSM Smoke Detector (FS2SD-GSM) to your account in the Ferguson Home system. - Page 11 GSM Smoke Detec- tor to your account, you will have access to its settings. SIMPLIFIED DECLARATION OF CONFORMITY Producer: Ferguson Sp. z o.o., ul. Dworska 1, 61-619 Poznań Name: FS2SD-GSM Device type: Smoke detector The above-mentioned product complies with Directive 2014/53/EU of...
- Page 12 PRC for Ferguson sp. z o.o. ul. Dworska 1, 61-619 Poznań, Poland www.ferguson-digital.eu...
