Summary of Contents for TM Stagetec Systems digital PA

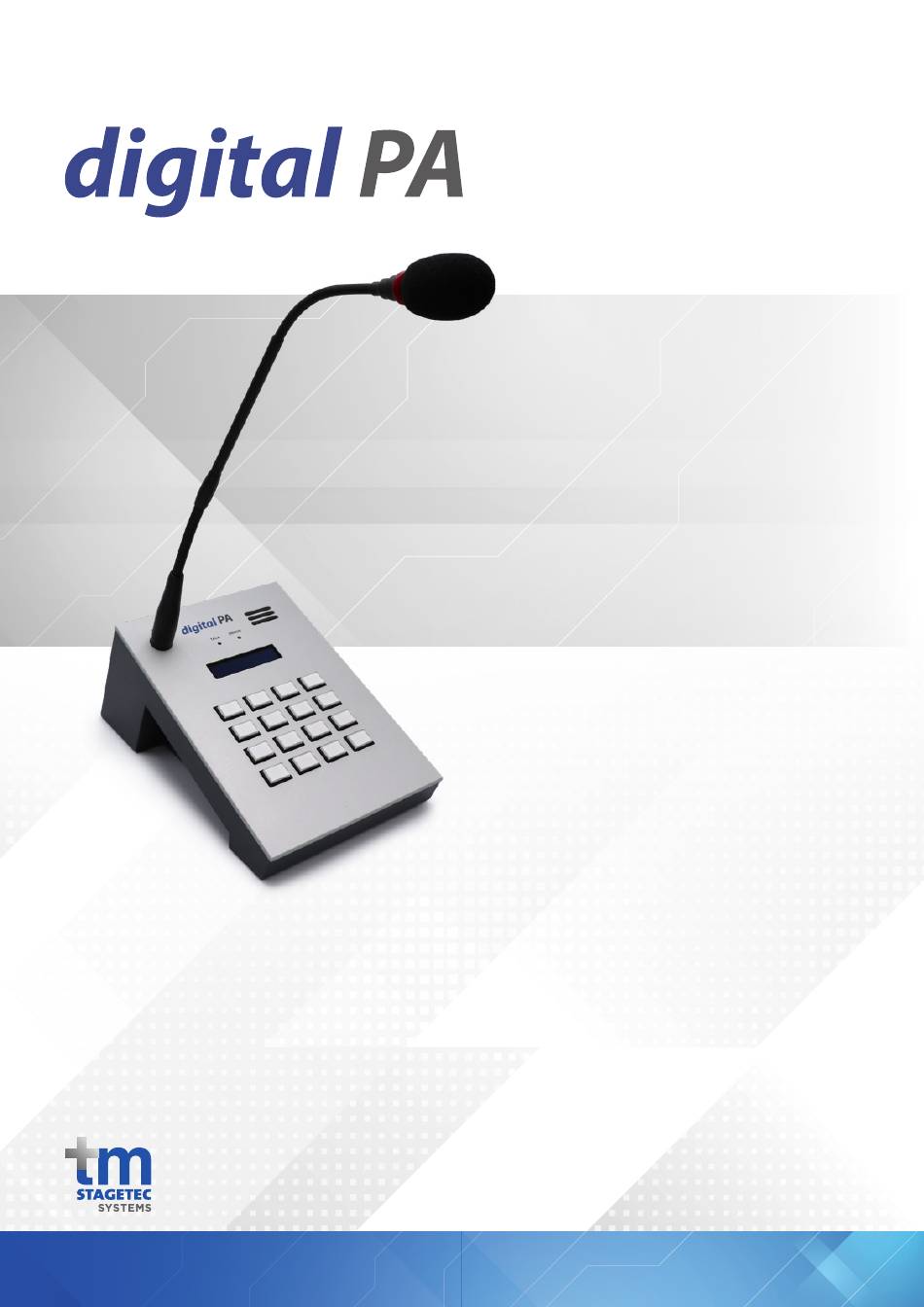

- Page 1 Desk 16 Mini (Standalone) Administrator Guide Version 1.0 February 2022 Unit 6, 476 Gardeners Rd, Alexandria, NSW 2015 Phone +612 8011 0500 Email info@tm-systems.com.au...
- Page 2 I M P R I N T Manual - Version 1.0 February 2022, Australia Published as a digital PDF document Publisher tm stagetec systems Unit 6 / 476 Gardeners Road Alexandria NSW 2015 Tel.: (02) 8188 0500 Fax: (02) 8072 1858 Email: info@tm-systems.com...
-
Page 3: Table Of Contents
C O N T E N T S 1. Introduction ........................2. -
Page 4: Introduction
1. I N T R O D U CT I O N Thank you for choosing tm stagetec systems’s Desk 16 Mini – Standalone. We created the Desk 16 Mini as a high quality paging microphone for Audio over IP networks. It boasts a 2 port Ethernet switch (1x 1Gb Copper and 1x SFP cage - allowing for various fibre or copper connections), Dante Network audio, Mic Input, Line Input, Line Output, an inbuilt speaker with volume control and GPIO. -
Page 5: Product Description
2. P R O D U CT D E S C R I P T I O N 2.1 Interfaces SFP Transceiver Cage LAN Port (optional PoE) 12 to 48vDC Input Audio & Control (DB9) AES Port... -
Page 6: Getting Started
• Gooseneck Microphone • Power Supply • Owner’s manual If anything appears to be missing, please contact tm stagetec systems. 3.2 Installation Install the Desk 16 Mini in the designated location. Please be aware that the chosen installation location should be a dry area that is not subjected to extreme heat and has suitable ventilation. -
Page 7: Device Configuration
4. D E V I C E CO N F I G U R AT I O N Accessing the device web interface Configuration of the Desk 16 Mini is performed via a web browser individually for each device. Please read the following page for information on how to configure the device. - Page 8 Menu - Status Upon login, you will be directed to the device status page. Here, information regarding the installed software version, Dante configuration and network settings are displayed. You will also have access to the device configuration menu. Here you have the following options Status Status information System...
- Page 9 Device Status Page...
- Page 10 Menu - System The System tab contains the Dante device and network configuration settings. Such as: Device Name - This is the name that will appear in Dante Controller. Password - This sets the password for accessing the device web interface. Dante Redundancy - This displays the current Dante redundancy mode of the device Dante Redundancy after Reboot -...
- Page 11 Inputs – Channels The Input – Channels tab allows for control over the analog inputs of the Desk 16 Mini. CH 1 of the Desk16 mini is dedicated to the panels gooseneck microphone. Here you can adjust the input gain and automatic level control settings.
- Page 12 Outputs – Icom Buttons The Outputs – Icom Buttons tab is the configuration menu for the panels button labels. Labels configured here with be displayed on the Desk 16 Mini’s OLED display while the corresponding button is pressed.
- Page 13 Outputs – Routing Under the Menu option Outputs - Routing the following settings are available for ICOM outputs: Use the trash can symbol to clear the subscription of the respective Dante output. Use this button to select the input signal of the respective Enables or Disables the output.
- Page 14 Outputs – Names Under the Menu option Outputs - Names you are able to change the name of each output. Dante Metering – Receivers Under the Menu option Dante Metering - Receivers you are able to access the level meters for each input. Dante Metering –...
-
Page 15: Operation
5. O P E R AT I O N The Desk 16 Mini features 16 multifunction buttons. On the Standalone model, the first 12 are assigned to Dante Transmitters of the device, with each button sending the microphone out a single Dante Transmitter or a combination of Transmitters. - Page 16 When a button is pressed, the panels microphone input is routed out the corresponding Dante Transmitter(s). When a signal is received on a Dante receiver, the corresponding button/channel will flash, and the signal will be routed to the built-in monitor speaker. Volume Down –...
-
Page 17: Technical Specifications
6. T E C H N I CA L S P E C I F I CAT I O N S Balanced Inputs Balanced Outputs Connection Type DB9 Connector Channel - 1 x Balanced, - 1 x Balanced, - Max input level +24dBu - Max output level+24dBu Sample Rate 48kHz (24bit) -
Page 18: Device Pinouts
7. D E V I C E P I N O U T S Front Panel 5 Pin XLR Connector Function Pin 1 Pin 2 Mic + Pin 3 Mic - Pin 4 24V + Pin 5 Mic LED... -
Page 19: Dimensions
DB9 Female Connector Line IN + Line OUT+ GPI-CA GPI+24 GPO-1 Line IN - Line OUT - GPI-1 GPO-CE 8. D I M E N S I O N S Width - 165mm Depth - 240mm Front height - 30mm Back height - 125mm 125mm 30mm...
