Summary of Contents for UFO Luna CM

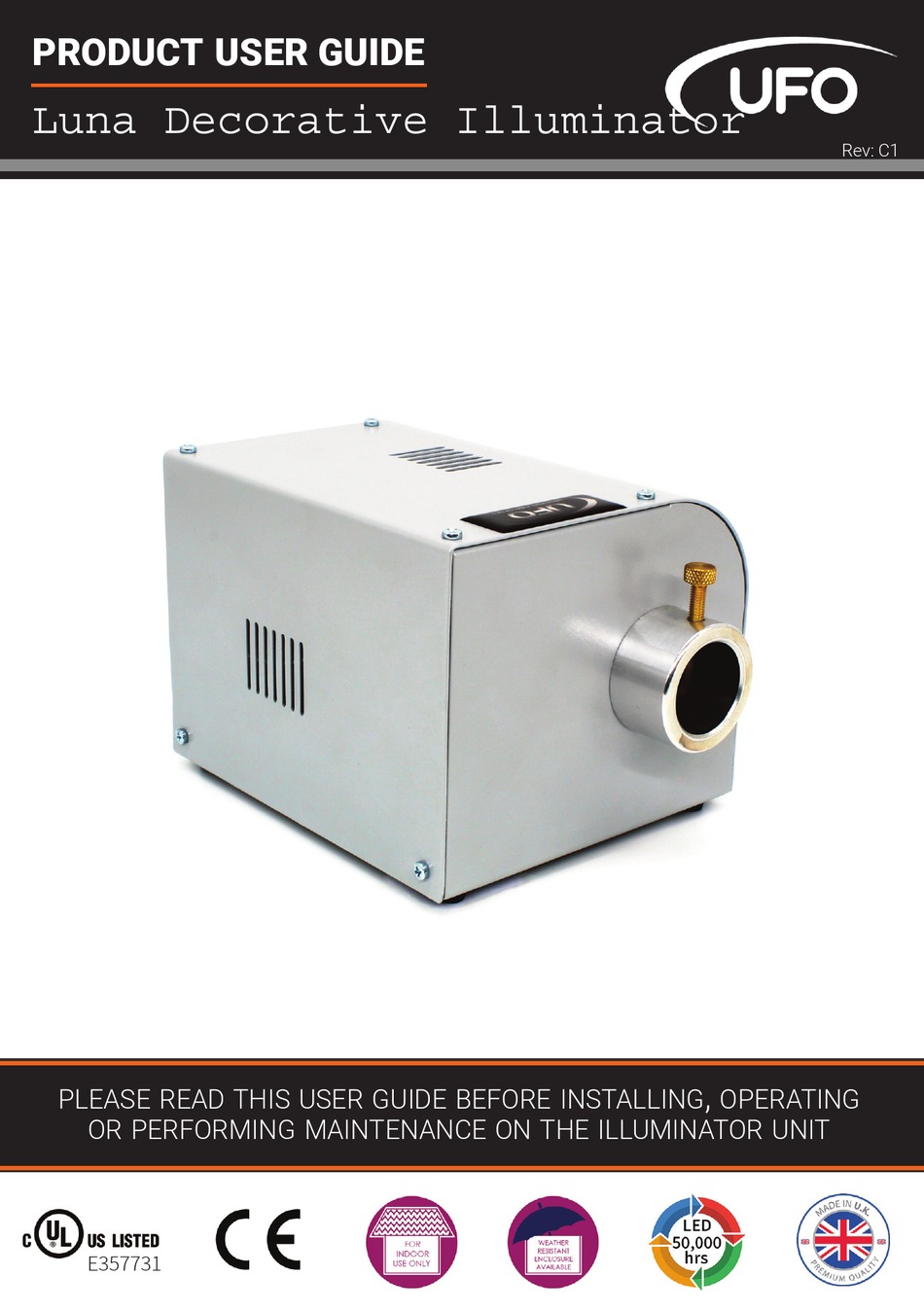

- Page 1 PRODUCT USER GUIDE Luna Decorative Illuminator Rev: C1 PLEASE READ THIS USER GUIDE BEFORE INSTALLING OPERATING OR PERFORMING MAINTENANCE ON THE ILLUMINATOR UNIT E357731...
- Page 2 UFO Luna CM / UFO Luna TM UFO Luna MCM / UFO Luna MTM UFO Luna CDMX / UFO Luna TDMX UFO Luna C 0-10V / UFO Luna T 0-10V IMPORTANT This product must be installed in accordance with the applicable installation code, by a person familiar with the construction and operation of the product, and the hazards involved.
-
Page 3: Installation
The driver caters for UK/European/other mains supplies using the relevant power cord supplied. LUNA DMX / 0-10 V LUNA MCM / MTM LUNA CM / TM CONNECTION LUNA CM TM AND MTM MODELS ONLY There are 2 connections required – the fiber port and the mains supply cable. The fiber port should be connected first. - Page 4 It is recommended that a 120ohm terminating resistor be connected across DMX+ and DMX- on the last illuminator in the DMX universe or cable run. Note: UFO can supply converters for these illuminators to allow them to be interfaced to standard 3 pin XLR connectors or RJ45 connectors.
- Page 5 Multicomp SVP556-TA. The pin out details for these plugs are shown below. Either socket may be used as 0-10V IN or 0-10V OUT Note: UFO can supply converters for these illuminators to allow them to be interfaced to standard 3 pin XLR connectors or RJ45 connectors.
-
Page 6: Operation
For a Luna CM or TM with only manual control of the decorative wheel - the motor speed can be adjusted using the control on the rear of the unit from approximately 0.6 rpm to 3.75 rpm. -
Page 7: Setting The Dmx Address
USING THE ILLUMINATOR LUNA CDMX AND TDMX MODELS ONLY Model Description UFO Luna CDMX DMX dimming and color wheel speed control DMX dimming and color wheel speed control with sensor on the wheel al UFO Luna CDMXs lowing individual color selection... - Page 8 OPERATION LUNA CDMX COLOR WHEEL Channel Function Value Description Dimming 0255 From off at 0 to brightest at 255 Color wheel 0255 From 0.6 rpm at 0 to 4 rpm at 255) LUNA CDMX COLOR WHEEL WITH SENSOR Channel Function Value Description Dimming...
- Page 9 Dip switch 10 must be on for manual operation For manual operation to work there must be wire links fitted to the screw terminals on the PCB between 10V & DM and 10V & SPD as detailed, left. UFO LIGHTING...
- Page 10 OPERATION LUNA 0-10 V MODELS ONLY USING THE ILLUMINATOR 0-10V Control is available to either control a color wheel (Luna C 0-10V) or control a twinkle wheel (Luna T 0-10V). The values table for 0-10V control is shown below: Function Value Description Color wheel...
-
Page 11: Maintenance
MAINTENANCE MAINTENANCE LOG Date Maintenance Undertaken Note: A record of all maintenance MUST be kept in the table above, indicating what maintenance was undertaken and when. This MUST be dated for warranty purposes. UFO LIGHTING... -
Page 12: Troubleshooting
TROUBLESHOOTING PROCEDURES FOR ALL MODEL TYPES Problem Possible Cause(s) Remedy Unit is dead – Mains supply off Check supply & reinstate no light output Loose mains plugs Check plugs and LED power indicator on Plug fuse blown (UK) Check fuse. If blown, replace PSU is not PSU failed Replace PSU... - Page 13 No 010v signal at illuminator a DMM set to correct range due to cable or controller fault rectify cable / controller fault Note: Please complete relevant troubleshooting procedures before returning the unit to us for further investigation. UFO LIGHTING...
- Page 14 TROUBLESHOOTING Description Details Port connector size 30mm diameter Fiber type Glass / PMMA Mains Supply Voltage 100240V AC, 4763Hz PSU Output 24V DC, 0.75A, 18W max. LED Power 11.5W Min Ambient Temperature 10°C Max Ambient Temperature +45°C 60mm crossflow, 12V Led Type White light User addressable...
- Page 15 NOTES UFO LIGHTING...
- Page 16 INSTALL United Kingdom • United States • Germany • Europe • Universal Fiber Optics Ltd Universal Fiber Optics USA LLC UFO Licht GmbH Home Place Coldstream 1749 Northgate Blvd Friendsfactory AG Gutenbergstraße 1 TD12 4DT Sarasota FL34234 85737 Munchen Deutschland...
