  • Page 1 Before using this Infrared thermometer ,please read the user’s manual carefully and use it accordingly.Please keep the user’s manual property for reference at any time.(The pictures in this manual are for reference only) Xuzhou Yongkang Electronic Science Technology Co., Ltd.
  • Page 2 Symbols and Definitions Symbols Definitions BF type applied part Refer to operation manual Cautions First characteristic numeral 2: Against ingress of solid foreign objects:≥12.5mm diameter IP22 Second characteristic numeral 2 Against ingress of water with harmful effects:dripping(15º tilted) Manufacturer Date of manufacture European union representative Serial number Standby...
  • Page 3: Table Of Contents

    Contents 1 Product Introduction ........................1 1.1 Intended use .......................... 1 1.2 Contraindications ........................1 1.3 Features ..........................1 1.4 Structure ..........................1 1.5Display ........................... 2 2 Battery Installation Usage ........................3 3 Measurement ............................3 3.1 Measuring Steps ........................3 3.1.1 Method to Measuring Ear Temperature .................4 3.1.2 Method to Measuring Forehead Temperature ...............
  • Page 4: Product Introduction

    1 Product Introduction 1.1 Intended use The infrared thermometer of we produced is specially for measuring body temperature, it can measure human ear and forehead temperature, it suitable for medical unit and home use. User Group Age: Adult/Children -Fever patient; -Other people who need to have their temperature taken -Doctor 1.2 Contraindications...
  • Page 5: Structure

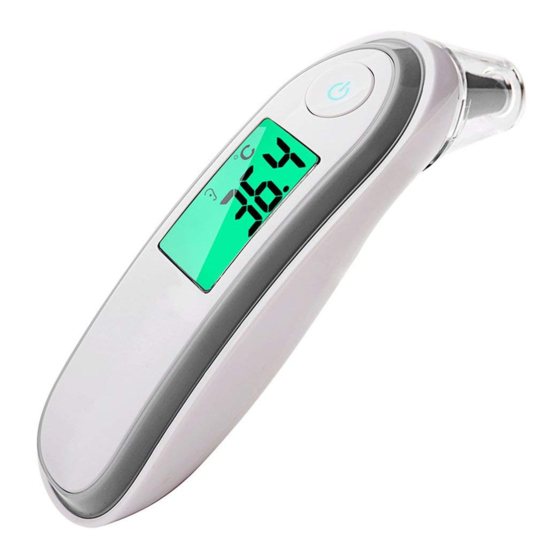

    1.4 Structure 1. Forehead Temperature Cap 2. Start Button + measuring Button 3. Display Screen 4.Sensor Probe 5. Battery Cover 1.5 Display 1. Ear Temperature Indicator 2. Memory Mode 3. Low Battery Indicator 4. Memory Data Sets Number 5. Forehead Temperature Indicator 6.
  • Page 6: Battery Installation Usage

    7. Temperature Reading 2 Battery Installation Usage 1) Remove the battery cover as the arrow direction according. 2) Install 2 AAA batteries, ensure each battery is in the proper direction. 3) Close the battery cover. 3 Measurement The Infrared thermometer can automatically identify now is under forehead or ear temperature. 3.1 Measuring Steps Step 1: Install the batteries, press the Start button, all symbols appear on the display, 1 second later it appears the temperature measured last time, the sign ‘M’...
  • Page 7: Method To Measuring Ear Temperature

    Step 2: The sign “M” disappear, forehead/ear indicator appear, it means the place you measured last time, then the temperature unit flickering, now is the measuring interface. Step 3:Direct the probe to measuring area (Shown in Figure 3.1.1 and 3.1.2), press the “measuring”...
  • Page 8: Memory View

    3.2 Memory View Click the power button while the device in off state, “M” symbol will appear on the screen one second after the screen light up. Press the “Measure” button to review the record. The test result will show up with a model symbol distinguish forehead temperature or ear temperature. Press “Measure”...
  • Page 9: Notes

    ———— TEMP is too low Environment TEMP is Measurement in proper environment too low ———— TEMP is too high Environment TEMP is Measurement in proper environment too high 3.6 Notes 3.6.1 Note for Ear Temperature Measurement People with ear diseases such as otitis externa, or otitis media prohibited to use. ...
  • Page 10 Please do not measure temperature after exercising, bathing or meal within 30 minutes,  Before measuring body temperature, do not make any diet, and do not engage in sports  activities. Do not measure baby temperature during or after breast-feeding. ...
  • Page 11: Manufacturer's Declaration Of The Eut

    may not be the same; When suspect the measurement value is low. 4 Manufacturer’s Declaration of the EUT Statement: The infrared thermometer or user should use the product in the electromagnetic environment  specified in the following table, otherwise it may cause abnormal operation of the product. The internal structure of the infrared thermometer adds magnetic rings, magnetic beads, and ...
  • Page 12 The infrared thermometer is intended for use in the electromagnetic environment specified below. The customer or the user of the infrared thermometer should assure that it is used in such an environment. EN 60601 Immunity test Compliance level test level Electrostatic ±...
  • Page 13 < 5 % U (>95 % dip in U for 5 sec Power frequency (50/60 Hz) 30 A/m magnetic field 30A/m IEC 61000-4-8 NOTE is the a. c. mains voltage prior to application of the test level. Guidance and manufacturer´s declaration – electromagnetic immunity – for EQUIPMENT and SYSTEM that are not LIFE-SUPPORTING Guidance and manufacturer´s declaration –...
  • Page 14 Table 9 - Test specifications for enclosure port immunity to RF wireless communications equipment Maximum MMUNITY Band Distance Test frequency TEST LEVEL power Modulation Service (MHz) (MHz) (V/m) Pulse modulation 380 -390 TETRA 400 18 Hz GMRS 460, FRS 460 FM ±...
  • Page 15: About The Tempreture

    1 845 1 970 Bluetooth, Pulse WLAN, modulation 2 450 2 400-9 570 802.11 b/g/n, RFID 2450, 217 Hz LTE Band 7 5 240 Pulse 5 500 5 100-5 800 WLAN 802.11 a/n modulation 217 Hz 5 785 NOTE: If necessary to achieve the immunity test level, the distance between the transmitting antenna and the me equipment or me system may be reduced to 1 m.
  • Page 16: Maintenance And Attention

    same. Therefore, different parts of the measurement results should not be used to compare with each other. In physical health, multi test several times, prior to know their "normal temperature". NOTE: Product measurement data are used only as an aid to diagnosis. 6 Maintenance and Attention ●The probe of the Infrared thermometer is one of the most important parts , the front probe is most vulnerable.
  • Page 17: Production Specifications

    •The thermometer contains sensitive elements, which should be treated with caution. The aging of the elements will affect the performance of the thermometer. At the same time, the thermometer should not be used in the environment with electromagnetic interference. •The infrared thermometer is composed of high quality sensitive parts, which can not be repaired by users themselves.
  • Page 18 Model YK-IRT1、YK-IRT2、YK-IRT3、YK-IRT4 Product Categories Internal power supply equipment BF type application part Units of measurement ℃ & ℉ key to switch 34.0℃~43.0℃ Range (Apply to ear temperature and forehead temperature) Range Indicator <34.0℃ Show Lo,>43.0℃ Show Hi < 35.0℃ and >42.0℃ : ±0.3℃...
  • Page 19 equipment warm from minimum storage temperature between uses until it is ready for intended use; and the time required for me equipment to cool from the maximum storage temperature About 20min between uses until it is ready for intended time from switching “on”...
  • Page 20: After-Sale Service

    Host of infrared thermometer AAA battery User manual Guarantee card Contact information: Xuzhou Yongkang Electronic Science Technology Co., Ltd 1st&2nd Floor,6#01,6#02,No.6 Building 1st Phase Economic Development Manufacturing Zone,LIANDO U Valley, No.6 Leye Road ,Xuzhou ETDZ,221000 Xuzhou,PEOPLE'S REPUBLIC OF CHINA TEL: +86-516-87892766 FAX: +86-516-87892755-606 Xuzhou Yongkang Electronic Science Technology Co., Ltd...
