Summary of Contents for WPT POWER WPD-05

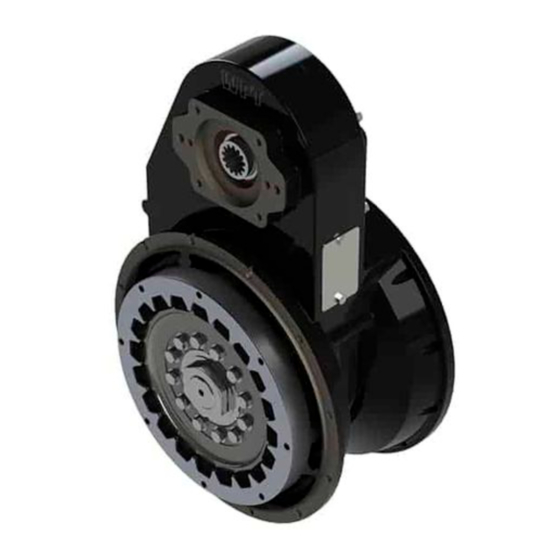

- Page 1 POWER PUMP DRIVE (PPD) Installation & Maintenance Manual Model WPD-05 (Belt Drive)
-
Page 2: Table Of Contents
Contents Introduction _____________________________________ Error! Bookmark not defined. General Warnings_______________________________________________________ 3 Installation ____________________________________________________________ 4 Maintenance___________________________________________________________ 5 Belt Replacement _______________________________________________________ 5 Exploded View _________________________________________________________ 6 Bolt Torque Specifications ________________________________________________ 8 Page 2 of 9 WIM-PD-005 REV_A... -
Page 3: Introduction
Drive flywheel coupling. This elastic coupling absorbs radial and angular misalignments as well as dampens torsional vibrations. The model WPD-05 output is a dual pad pump drive as well as SAE flywheel and flywheel housing. To allow for easy installation the pump tower can be mounted in 12 possible positions over 360 degrees. -
Page 4: Installation
If the product is fitted with fusible plugs, the ventilation openings should not be directed towards operators or any hot or electrical installation. 3.0 Installation CAUTION Before mounting the pump drive onto the engine, it is important to check that the flywheel is within SAE tolerances. -
Page 5: Maintenance
4.0 Maintenance The WPD-05 is equipped with a toothed belt, which connects a pulley to the main shaft. The belt may loosen over time while in use, so it may be necessary to check tension and adjust as needed. The belt must measure 100Hz at ambient temperature. -
Page 6: Exploded View
6.0 Exploded View Qty. DESCRIPTION Qty. DESCRIPTION FLANGED SHAFT COVER BALL BEARING WASHER SNAP RING SCREW SPLINED PULLEY SHCS BALL BEARING HOUSING SPACER RING SCREW WASHER SPACER RING PULLEY LIP SNAP RING DUMMY SCREW FLYWHEEL COUPLING SCREW HOUSING SHAFT BRACKET BELT BALL BEARING PLATE... - Page 7 Page 7 of 9 WIM-PD-005 REV_A...
-
Page 8: Bolt Torque Specifications
Bolt Torque Specifications The following chart applies to ISO metric screws with coarse pitch grades 8.8, 10.9, and 12.9 with clean surfaces. Bolt Torque lbf-ft [Nm] Bolt Size Pitch [mm] [mm] 10.9 12.9 2 [3.1] 3 [4.3] 4 [5.2] 4 [6] 6 [8.5] 7 [10.1] 8 [10.4]... - Page 9 WPT Power 1600 Fisher Road - Wichita Falls, TX 76305 P.O. Box 8148 - Wichita Falls, TX 76307 Ph. 940-761-1971 www.WPTpower.com Page 9 of 9 WIM-PD-005 REV_A...
