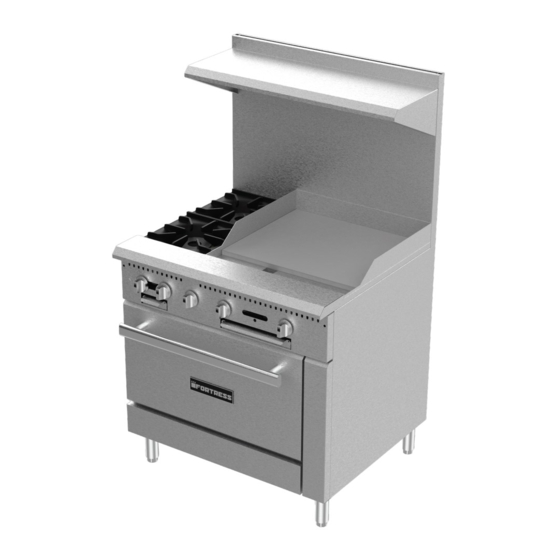

Fortress Technologies FGR2B24G Manual

Range combo with manual griddle

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Instruction, Service, Installation, and Care Manual

Please read this manual completely before attempting to install or operate this

equipment. Notify carrier of damage! Inspect all components immediately.

Range Combo with Manual Griddle

PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE

Warranty/TECH Support Call: 800•722•6075

or Email us at: service@fortress-cke.com

WARNING!

Improper installation, adjustment, alteration,

service or maintenance can cause property

damage, injury or death. Read the installation,

operating and maintenance instructions thoroughly

before installing or servicing this equipment.

FOR YOUR SAFETY

DO NOT STORE OR USE GASOLINE

OR OTHER FLAMMABLE VAPORS OR

LIQUIDS IN THE VICINITY OF THIS OR

ANY OTHER APPLIANCE.

407 Jeffrey's Lane

Goldsboro NC 27530

Table of Contents

Need help?

Do you have a question about the FGR2B24G and is the answer not in the manual?

Questions and answers

Summary of Contents for Fortress Technologies FGR2B24G

Page 1 Instruction, Service, Installation, and Care Manual Please read this manual completely before attempting to install or operate this equipment. Notify carrier of damage! Inspect all components immediately. Range Combo with Manual Griddle PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE WARNING! Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death.
Page 2: Important Safety Instructions
Service, Installation & Care Manual IMPORTANT SAFETY INSTRUCTIONS Your safety and the safety of others are very important. THIS MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. READ CAREFULLY AND SAVE FOR FUTURE CONSULTATION. This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can kill or injure you and others.
Page 3 Service, Installation & Care Manual IMPORTANT SAFETY INSTRUCTIONS WARNING: Risk of fire / flammable materials. • Installation must conform with local codes, or in the absence of local codes, the National Fuel Gas Code, ANSI Z223.1 (latest edition). In Canada, installation should conform to installation codes for gas burning appliances and equipment standard CAN/CGA-B149.1 or the propane installation code, CAN/CGA-B149.2, as applicable.
Page 4: Important Tips
Service, Installation & Care Manual Important Tips • Ensure that children do not play with the equipment. • Always check if the gas connections are correctly installed, have no malfunctions and no gas leaks. • Carefully keep this manual for future reference. •...
Page 5: Table Of Contents
Service, Installation & Care Manual TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS..............2 Important Tips ......................4 RECEIVING AND INSPECTING THE EQUIPMENT ..........6 01. INTRODUCTION ....................6 02. EQUIPMENT INSTALLATION ................7 2.1 Equipment Installation Instructions ............7 2.2 Recommendations Before Installation ..........8 2.3 Gas Installation ....................8 2.4 Installation - Gas Standards and Codes ..........9 2.5 Gas Pressure Regulator ................
Page 6: Receiving And Inspecting The Equipment
Service, Installation & Care Manual RECEIVING AND INSPECTING THE EQUIPMENT Even though most equipment is shipped crated, care should be taken during unloading so the equipment is not damaged while being moved into the building. 1. Visually inspect the exterior of the package and skid or container. Any damage should be noted and reported to the delivering carrier immediately.
Page 7: Equipment Installation
Service, Installation & Care Manual The equipment you have purchased from Fortress™ is "Built to Last". Quality, performance, and innovative design built-in, brings value and reliability to your business! Please read this manual carefully to know and understand your equipment to ensure its correct operation for maximum performance. The proper care and use will help for the life your purchase.
Page 8: Recommendations Before Installation
Service, Installation & Care Manual 02. EQUIPMENT INSTALLATION Clearances The appliance area must be kept free and clear of all combustibles. Combustible Non-combustible MODEL Rear Sides Rear Sides 8" 6" 0" 0" Range Combo with Manual Griddle Rating Plate Information on this plate includes the model, serial number, BTU/h input of the burners, operating gas pressure in inches WC, and whether the appliance is orificed for natural or propane gas.
Page 9: Installation - Gas Standards And Codes
Service, Installation & Care Manual 02. EQUIPMENT INSTALLATION WARNING Never supply the appliance with a gas other than the one that is indicated on the data plate. Using the incorrect gas type will cause improper operation and could result in serious injury or death. If you need to convert the appliance to another type of fuel, contact the dealer your purchased it from.
Page 10: Gas Pressure Regulator
Service, Installation & Care Manual 02. EQUIPMENT INSTALLATION 2.5 Gas Pressure Regulator The gas pressure regulator (which accompanies the equipment) is of utmost importance for its operation and is indispensable. The pressure regulator must be installed in the equipment supply gas line (failure to install the pressure regulator will void the equipment warranty).
Page 11: Gas Conversion Instruction
Service, Installation & Care Manual 02. EQUIPMENT INSTALLATION IMPORTANT Visually check all inlet pipes supplied by the installer and/or blow them out using compressed air to clean out any dirt or debris (threads or other foreign matter) before installing a service line. These particles will clog the gas holes when gas pressure is applied.
Page 12 Service, Installation & Care Manual 02. EQUIPMENT INSTALLATION Is it possible to change the gas type used in the equipment by changing some part. In this case, the following guidelines should be followed: 1. Close the manual gas valve and disonnect the equipment from main gas pipeline making sure that there is no leakage.
Page 13 Service, Installation & Care Manual 02. EQUIPMENT INSTALLATION Direction of the arrow at 12. After changing the gas injectors (8, 13 and 15), reassemble your equipment. the bottom of the regulator. 13. When assembling the range burners, place the flame spreaders by the ones that are in the accessory kit.
Page 14: Gas Leak Check
Service, Installation & Care Manual 02. EQUIPMENT INSTALLATION 2.7 Gas Leak Check Before lighting the equipment and putting it into operation, check all gaskets on the gas supply line for leaks. For this, do not use any type of wrench to check for leaks, use a sudsy soap and water solution.
Page 15: Positioning
Service, Installation & Care Manual 02. EQUIPMENT INSTALLATION 2.9 Positioning • Installation must be on a flat and level surface. • It is recommended to install the equipment under hoods or exhausts. • There must be a distance of at least 8" (203.2 mm) at the rear, 6"...
Page 16: First Time Use
Service, Installation & Care Manual 02. EQUIPMENT INSTALLATION 2.11 First Time Use To protect the equipment against possible damage caused by shock or rocking from trasportation, burners, grids are secured by plastic straps. The flat-tops are coated with a layer of vegetable shortening and brown paper. The sides, and the waste tray thave a protective PVC film.
Page 17 Service, Installation & Care Manual 02. EQUIPMENT INSTALLATION MANUAL GRIDDLE 1. Open the manual gas supply valve (which will release gas into the equipment). 2. Put your lighting device (wick) past the ignition hole in the flame of the pilot on the equipment panel until contact with the pilot 2 (detail B) burner and until the flame ignites, repeat this procedure on all pilots (see following image).
Page 18: Turning On The Oven
Service, Installation & Care Manual 02. EQUIPMENT INSTALLATION 2.13 Turning on the Oven 1. In order to light the oven burner pilot, open the lower movable panel. 2. Turn the thermostat's knob counterclockwise to the pilot position and keep it pressed up the end of its course.
Page 19: Knowing The Equipment
Service, Installation & Care Manual 03. KNOWING THE EQUIPMENT The Range Combo with Manual Griddle was developed in order to provide the best experience during cooking activities, combined with a high standard of quality, high performance and durability, meeting the needs of a professional kitchen. The equipment was developed to obtain a more uniform cooking process in the food.
Page 20: Main Features
Service, Installation & Care Manual 03. KNOWING THE EQUIPMENT 3.1 Main Features RANGE • Stainless steel panel and sides. • 12" x 12" cast iron top grates designed for easy movement of pots across top sections. • Deflectors to direct waste to crumb/drip pan. •...
Page 21: Cleaning And Maintenance
Service, Installation & Care Manual 04. CLEANING AND MAINTENANCE 4.1 Cleaning DANGER Do not use toxic or high chemical cleaning materials. See all instructions given by the cleaning equipment manufacturer. • After using the Range Combo With Manual Griddle (Prime Serie) and the equipment is not working or hot, clean it to remove food residues.
Page 22: Cleaning The Outside Of The Equipment
Service, Installation & Care Manual 04. CLEANING AND MAINTENANCE 4.1.1 Cleaning the Outide of the Equipment The Range Combo With Manual Griddle has external stainless steel coating and for its correct cleaning it is necessary to follow the following guidelines: •...
Page 23: Maintenance
Service, Installation & Care Manual 04. CLEANING AND MAINTENANCE 4.2 Maintenance Maintenance is one of the precautions to be taken for a good equipment life. Proper cleaning, installation, checking and equipment life all contribute to reduced maintenance. Before any maintenance, verify that the gas connections, regulators or check valves must be completely closed and disconnected from the equipment.
Page 24: Technical Specifications
Height (H) Width (L) Depth (P) Weight Width Depth Height Weight Width Depth Height W.O.B.S.A W.B.S.A FGR2B24G 36” 35” 41 17/64” 62 33/64” 29 27/32” 418 lb 40” 40 35/64” 52 61/64” 549 lb 26 31/32” 26 37/64” 15 23/64”...
Page 25: Warranty
LIMITED ORIGINAL COMMERCIAL EQUIPMENT WARRANTY Fortress warrants that the equipment, as supplied by the factory to the original purchasers, is free from defects in materials and workmanship because of normal use for a period of one (1) year from the original purchase date or a maximum of eighteen (18) months after the shipment date from Fortress.
Page 26 LIMITED ORIGINAL COMMERCIAL EQUIPMENT WARRANTY overvoltage is excluded from the warranty. Non-clog range top open burners have a lifetime warranty. Original purchased replacement parts supplied by Fortress will be warranted for 30 days from the parts invoice date. This warranty is for parts cost only and does not include freight or labor charges.
Page 27: Notes
Service, Installation & Care Manual NOTES Warranty/Tech Support 800•722•6075...
Page 28 Service, Installation & Care Manual NOTES 800•722•6075 Warranty/Tech Support...
Page 29 Service, Installation & Care Manual CONSUMER AND PRODUCT IDENTIFICATION Purchase Date : Model Number : Serial Number : Installed Date : Install By : Gas Type : Keep this manual, as it contains important information for questions, and adjustments. The same will be required for the warranty claim if required. Warranty/Tech Support 800•722•6075...
Page 30 407 Jeffrey’s Lane Goldsboro, NC 27530 Parts & Service Manuals Available. For Warranty/TECH Support Call: 800•722•6075 or Email us at: service@fortress-cke.com www.fortress-cke.com Manual Version 1.0 REVISED 08/04/2021 D001-0004-FORTRESS © Copyright 2021 Fortress...
