Summary of Contents for LP ReadyPeak

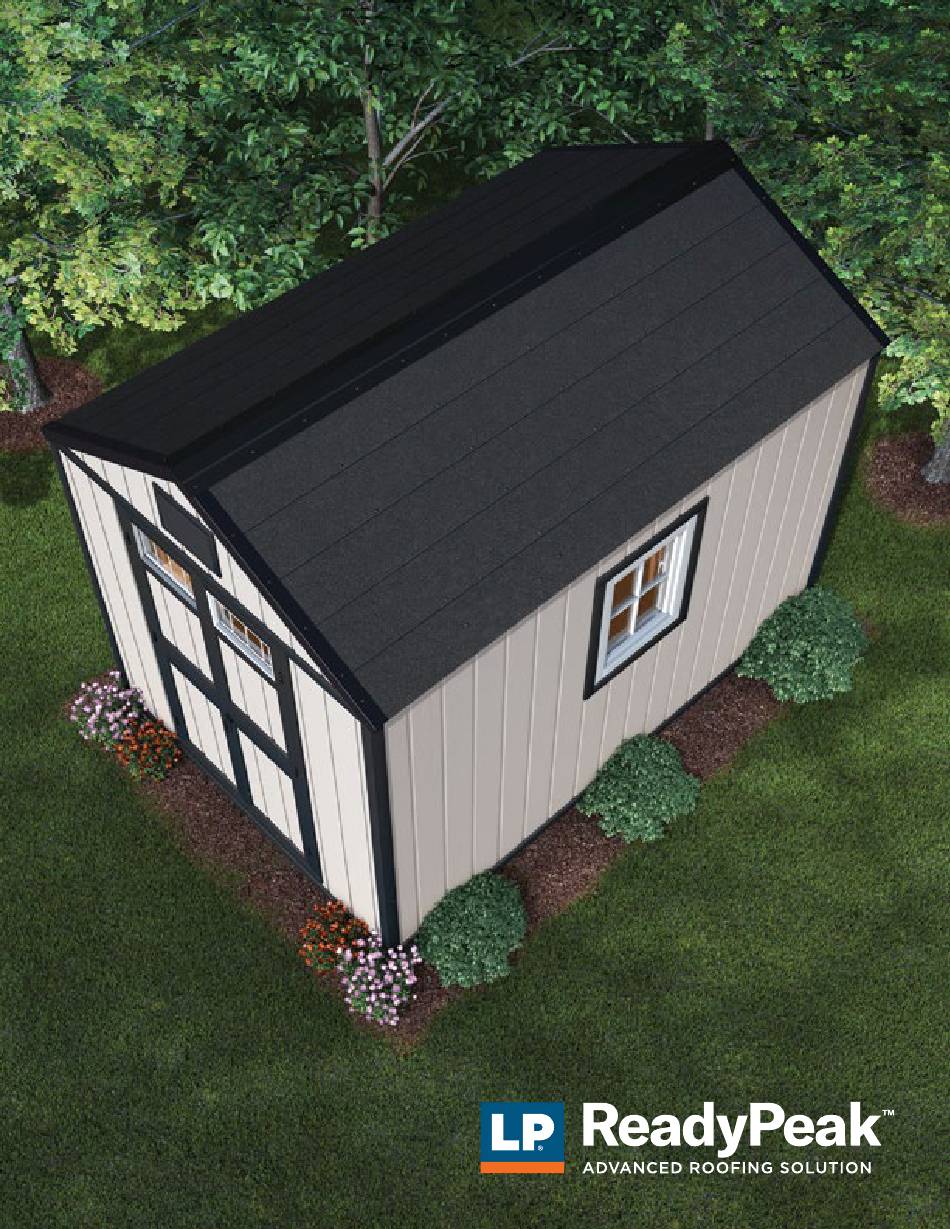

- Page 1 INSTALLATION MANUAL...
-
Page 2: Product Overview
PRODUCT OVERVIEW Building a roof that takes on the weather has never been easier than with LP ReadyPeak roofing planks. As the only roofing ™ product that goes directly on the roof truss in a single step without additional materials, we make installing a roof for your shed simple. -
Page 4: Materials Checklist
MATERIALS CHECKLIST Starting Panel Left End Cap Right End Cap Field Panel Silicone Ridge Cap 112 x #10 x 1-1/2˝Minimum Optional Aluminum Kwikseal Woodbinder Drip Flashing Metal Roofing Screw... - Page 5 STEP 1: Panel 1 SCALE 1:75 DETAIL A SCALE 1:20...
- Page 6 Step 1: Starting Panel 1 CHOOSING YOUR ALIGNMENT STYLE Align the bottom of the left corner of the starting panel with the outside corner of the far left rafter (Detail C). This results in no panel overhang (Detail A). You may add up to 1-1/2˝of panel overhang as noted in Detail B.
- Page 7 SECURING PANEL 1 Secure the panel to the roof using gasket screws placed 1-1/4˝–4˝from the front edge of the panel through the center of each rafter it covers. If overhang exists, add the lengths of overhang to the above specification for placement of the screws.
- Page 8 Step 2: Field Panels SCALE 1:75 DETAIL A SCALE 1:25...
- Page 9 LOCKING TOGETHER FIELD PANELS Align the plank to the flat edges of the ship lap. Be sure the plank is flat against the truss. There should be a maximun 2˝gap at the roof ridge to allow for ridge cap coverage. Secure each panel to the roof using two gasket screws 3/4˝from the drip edge through the center of each truss it covers.
- Page 10 Step 3: Left End Cap SCALE 1:75 DETAIL A SCALE 1:14...
- Page 11 Step 3: Left End Cap Continued ALIGNMENT Apply roughly a 1/2˝bead of silicone caulk along the left edge of the newly fastened panels about 1-1/2˝from the panel edges. See Detail A below. Align the angled edge of the left end cap with the roof centerline where it will meet coincident with the end cap on the other side.
- Page 12 TOP AND SIDE SCREWS Secure the end cap to the panels using five gasket screws in line with the previously placed screws. See Detail A. Once the top screws are in place, drive four gasket screws starting 2-1/2˝from the end of the end cap and 1-1/2˝in from the top face of the end cap.
- Page 13 Step 4: Right End Cap ALIGNMENT Repeat Step 4 for alignment and fastening for the right end cap. SCALE 1:75 DETAIL A SCALE 1:10...
- Page 14 Step 5: Repeat SIDE 2 OF SHED Repeat steps 1-6 on the other side of the shed frame. SCALE 1:40...
- Page 15 Step 6: Ridge Cap SCALE 1:75 DETAIL A SCALE 1:25...
- Page 16 Securing Ridge Cap Apply a roughly 1/2˝bead of silicone caulk along the top face of the newly fastened panels near the exposed lap of the top field panel (on both sides of the roof). See Detail A below. Place the ridge cap over the open gap at the peak of the roof. Create roughly a 3/8˝overhang on the frontside of the roof.
- Page 17 Step 6: Ridge Cap Continued Add additional screws every 12˝across the full length of the ridge cap in between studs Keep gasket screws in line with existing screws SCALE 1:75 DETAIL A SCALE 1:16...
- Page 18 For complete warranty and installation information, visit LPCorp.com/Literature or call 888-820-0325 WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection.
