CyberData 011151 Installation Quick Reference

Connecting Power (PoE)

to PoE Network

Connecting Power (optional power injector)

to Network
Ethernet
Optional Power Injuector
(CyberData P/N 010867A)
Device
Contacting CyberData
Corporate Headquarters Sales: (831) 373-2601 ext. 334
Support: 831-373-2601 ext. 333
CyberData Corporation
Web: http://www.cyberdata.net/support/contactsupportvoip.html
3 Justin Court
RMA Dept: (831) 373-2601 ext. 136
Monterey, CA 93940, USA
Email: RMA@CyberData.net
RMA Status: http://www.cyberdata.net/support/rmastatus.html
Phone: 831-373-2601
Fax: 831-373-4193
Warranty information is available at:
www.CyberData.net
Web: http://www.cyberdata.net/support/warranty/index.html
© 2011, CyberData Corporation, ALL RIGHTS RESERVED 930405B
All manuals and user guides at all-guides.com
The IP Endpoint Company

Wall Mount Adapter Parts

(1) Wall Mount Adapter
*Note: The drywall mounting kit will be included in
the ceiling speaker kit.

Overall Dimensions

CyberData Part #011098 or 011099
Quick Reference Quick Reference
Installation Quick Reference

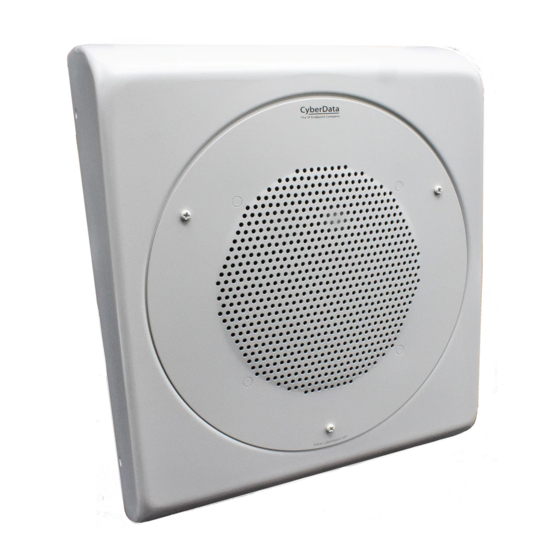

Wall Mount Adaptor for Indoor
Paging Speakers
011151*, RAL 9002, Gray White, Standard
011152, RAL 9003, Signal White, Optional
*Replaces the 010882 number.
(1) Template for Wall Mount
(1) Drywall Mounting Kit
Adapter and Screw Holes*
(4) #6 x 1.25-inch sheet metal screw
(1) Speaker Assembly to Enclosure Mounting Kit
(3) #8-32 x 0.5 inch Non-Drive Button
Head Machine Screw
(1) Enclosure to Backplate Mounting Kit
(4) Enclosure mounting screw
12.6 [321]
10.4 [264]
Dimensions are in Inches [Millimeter]
930405B © 2011, CyberData Corporation, ALL RIGHTS RESERVED
(4) Plastic ribbed anchors
(3) #8-32 KEP Nut
(1) Grounding nut
*Install the grounding nut onto
the Backplate's ground lug.
8°
4.0 [102]
