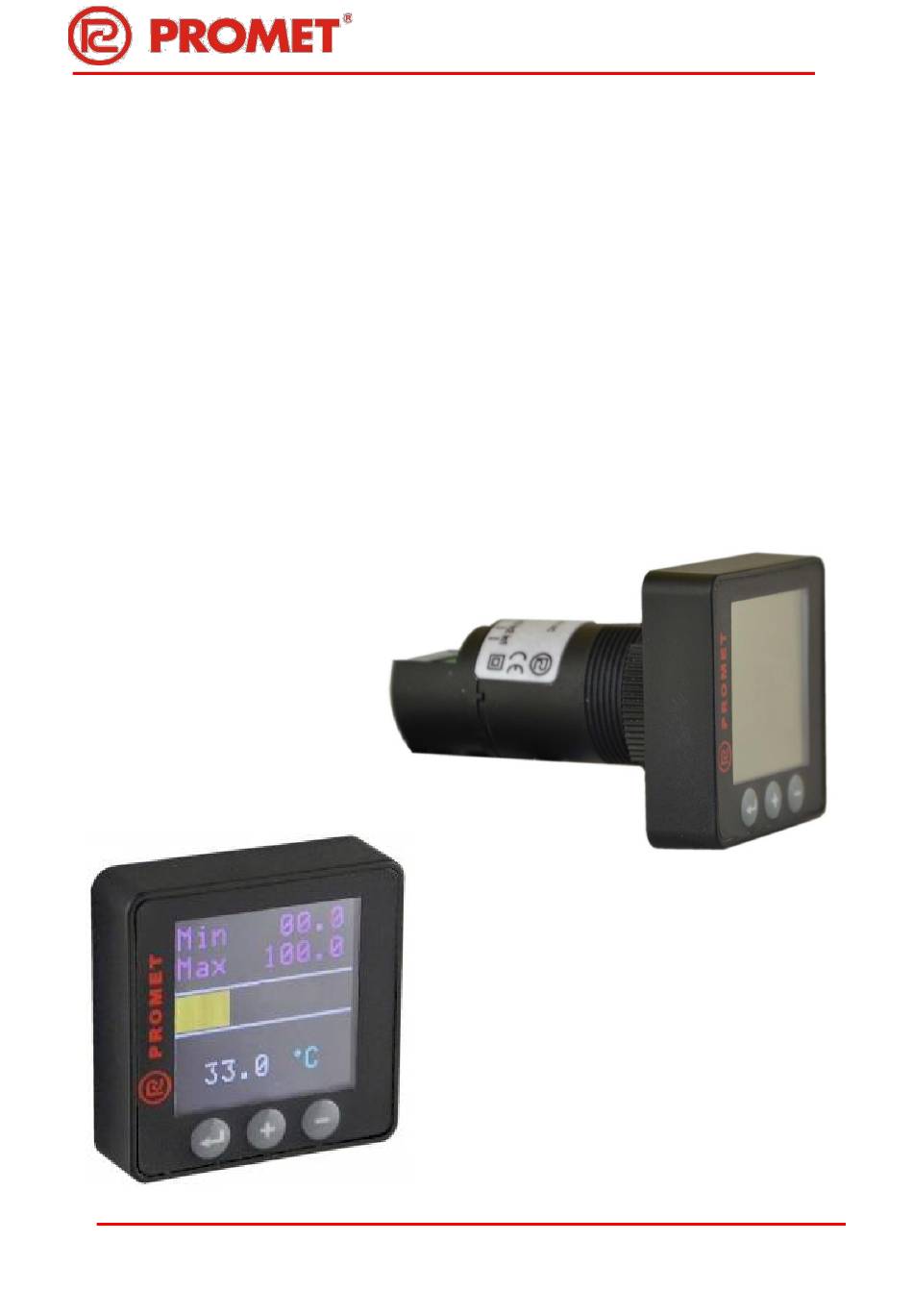

Panel indicators with 1,44" TFT display
MD22-TFT
Standardized signals indicator
User Manual
no.: IO-W_MD22-TFT-IU (eng)
Spółdzielnia Niewidomych PROMET 41-200 Sosnowiec, ul. Lipowa 11
Centrala: tel +48 22 269 81 00, Sekretariat: tel. +48 32 269 81 02, Dział Obsługi Klienta: tel. +48 32 269 81 81,
Strona | 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Promet MD22-TFT
Summary of Contents for Promet MD22-TFT
- Page 1 Standardized signals indicator User Manual no.: IO-W_MD22-TFT-IU (eng) Spółdzielnia Niewidomych PROMET 41-200 Sosnowiec, ul. Lipowa 11 Centrala: tel +48 22 269 81 00, Sekretariat: tel. +48 32 269 81 02, Dział Obsługi Klienta: tel. +48 32 269 81 81, Strona | 1...
- Page 2 1.1. Characteristics of the digital standardized signals indicator MD22-TFT-IU. The MD22-TFT-IU version of the indicator is designed to illustrate a physical sizes by numbers and graphic bar which are processed to a standardized signals used in automation (4-20 mA or 0-10 V).
- Page 3 Terminal designations and electrical connections are shown in Fig.2. Fig. 2 Connections Spółdzielnia Niewidomych PROMET 41-200 Sosnowiec, ul. Lipowa 11 Centrala: tel +48 22 269 81 00, Sekretariat: tel. +48 32 269 81 02, Dział Obsługi Klienta: tel. +48 32 269 81 81,...
- Page 4 Bar graph is only rough information about the measured quantity, but it is readable from a greater distance than the digital display. Spółdzielnia Niewidomych PROMET 41-200 Sosnowiec, ul. Lipowa 11 Centrala: tel +48 22 269 81 00, Sekretariat: tel. +48 32 269 81 02, Dział Obsługi Klienta: tel. +48 32 269 81 81,...
- Page 5 3. The position of the decimal point for all three values is the same and corresponds to the setting according to p. 5.2.1. 5. Settings up - programming of the MD22-TFT-IU indicator. Reprogramming is carried out by means of three buttons of the membrane keyboard on the front panel, marked as ↵, +, -.
- Page 6 The options are currently: %, ° C, ° K, @, Pa, mA, A, V. Change with the buttons "+" or "-" [↵] Spółdzielnia Niewidomych PROMET 41-200 Sosnowiec, ul. Lipowa 11 Centrala: tel +48 22 269 81 00, Sekretariat: tel. +48 32 269 81 02, Dział Obsługi Klienta: tel. +48 32 269 81 81,...
- Page 7 2x open collector type NPN, Umax = 100V, Imax = 800mA Spółdzielnia Niewidomych PROMET 41-200 Sosnowiec, ul. Lipowa 11 Centrala: tel +48 22 269 81 00, Sekretariat: tel. +48 32 269 81 02, Dział Obsługi Klienta: tel. +48 32 269 81 81,...
