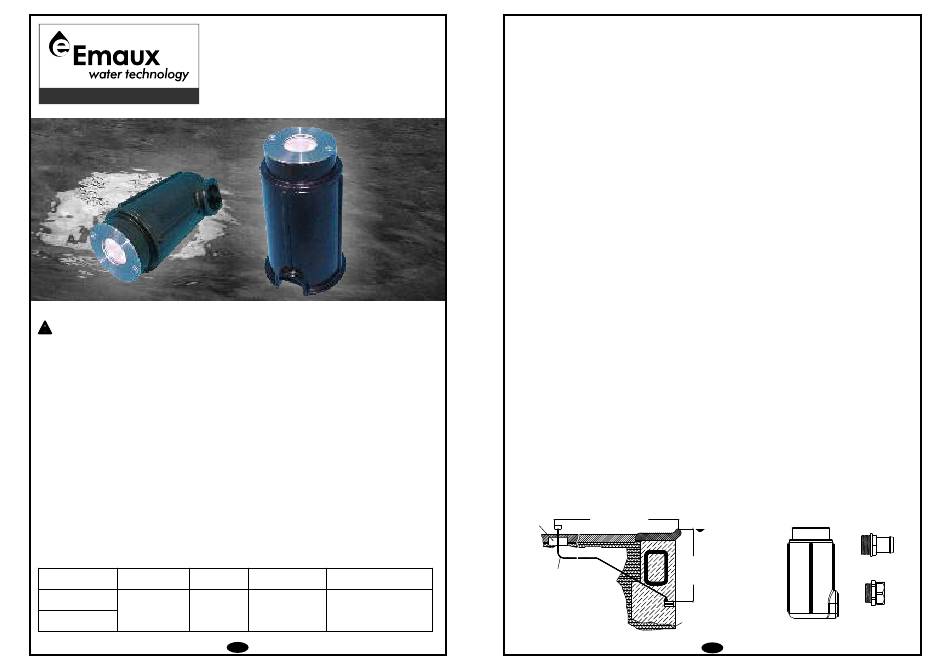

emaux Terra-Lux TL-1C Operating Manual

Terra-Lux
LED LIGHT OPERATING MANUAL

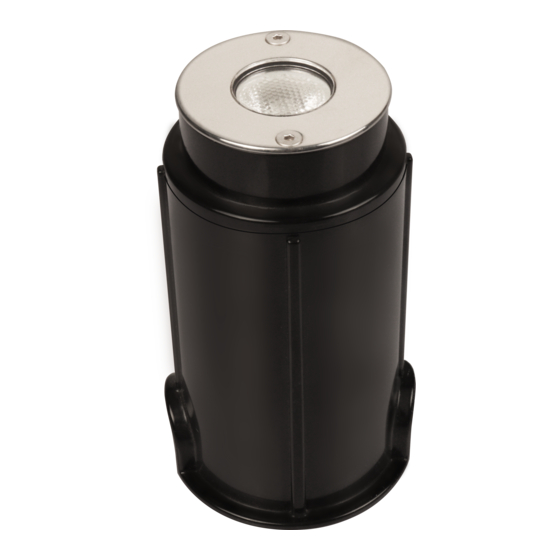

Model: TL-1C, TL-1F
www.emauxgroup.com
Keep this manual for future reference

SAFETY WARNINGS

• Only qualified electrician is allowed to carry out the installation of this product.
• Avoid direct contact with electrical power.
• Respect all regulations in effect for preventing accidents.
• All units are required to be disconnected from the main electricity before any
operation of maintenance.
• Never handle with wet hands and feet.
• This product can be installed outdoors in the ground or in the pool,conecting
with a safety transformer.
• Be sure power is off before installing or removing LED plate. Allow LED plate
to cool before replacing.
• This product should be installed according to your local electrical installation
ordinances and regulations.
• Maximum Depth for Light installation at 1 meter.
• Maximum Water Temperature Range for light operation 0 - 30 C.

PRODUCT PARAMETER TABLE

Model No. Voltage Watt
TL-1F
AC 12V 3W
TL-1C
o
Frequency Rem rk a
Cool White light/
50/60Hz
Warm White light
4-1
EMLI14102407

INSTALLATION NOTES

1. Light color can be selected based on personal preferences (white color
Lumen: 6000K, warm light: 3000K).
2. TL-1F: Applications include courtyard, plaza or other landscape installations.
TL-1C: Other applications include swimming pools or water features pool.
Models to suit different applications for underwater lights.
3. Length of cable of lights is 1.5M use suitable watertight electrical connections
if the cable is submerged in water.
4. To prevent glare of the light, light must be installed in a house in the opposite
direction.
5. In order to facilitate lighting maintenance, lighting around the pool must stay
out on a place lighting installation.

INSATALLATION OF LED LIGHT

1. Before installation, a circuit system diagram must be designed by a
certified engineer.
2. The circuit system must comply with local laws and regulations
and must be carried out by qualified electricians.
3. Make sure the voltage is 12V and the terminal box is at least 120cm from
the poolside (Figure1)
4. Upon installation, top of the light must be at least 45cm from water
surface(Figure 1).
5. TL-1F: Underwater lights installed outside waterproof connector and
cable fittings selection(Figure 2).
6. First pre-embedded pool shell concrete wall or floor mounted inside,
the copper nutshell surface or ground pool complete the flush(Figure
3,Figure 4).
7. Extra cable is coiled and housed in the housing to allow access for
maintenance of the pool light(Figure 3,Figure 4).
8. Fix pool light into the housing and use two screws to hold in place
(Figure 3,Figure 4).
120cm min.
Junction box
45cm min. from water
Rigid conduit
line to top of lens
Concrete must be cut
background niche to allow
for a compact plaster seal
Figure1
Water level
Joint for wire & pipe
Waterproof Fittings
Figure 2
4-2
