CASA-H3

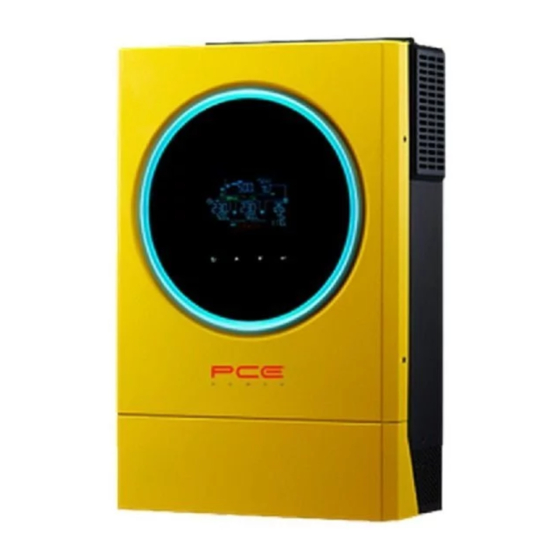

HYBRID INVERTER 3.6/5.6KW

p c e p o w e r . c o m

Table of Contents

Need help?

Do you have a question about the CASA-H3 and is the answer not in the manual?

Questions and answers

Summary of Contents for PCE Health and Fitness CASA-H3

Page 1 User Manual CASA-H3 HYBRID INVERTER 3.6/5.6KW p c e p o w e r . c o m...
Page 2: Table Of Contents
Table Of Contents ABOUT THIS MANUAL ............................. 1 Purpose................................1 Scope ................................1 SAFETY INSTRUCTIONS..........................1 INTRODUCTION ............................... 2 Product Overview............................. 3 INSTALLATION ..............................4 Unpacking and Inspection..........................4 Preparation ..............................4 Mounting the Unit............................. 4 Battery Connection ............................5 AC Input/Output Connection ..........................
Page 3: About This Manual
ABOUT THIS MANUAL Purpose This manual describes the assembly, inﬆallation, operation and troubleshooting of this unit. Please read this manual carefully before inﬆallations and operations. Keep this manual for future reference. Scope This manual provides safety and inﬆallation guidelines as well as information on tools and wiring. SAFETY INSTRUCTIONS WARNING: This chapter contains important safety and operating instructions.
Page 4: Introduction
INTRODUCTION This hybrid PV inverter can provide power to connected loads by utilizing PV power, utility power and battery power. Hybrid inverter Diﬆribution Box PV module Electric grids Load Battery Figure 1 Basic hybrid PV Syﬆem Overview Depending on diﬀerent power situations, this hybrid inverter is designed to generate continuous power from PV solar modules (solar panels), battery, and the utility.
Page 5: Product Overview
Product Overview Appendix I. NOTE: For parallel inﬆallation and operation, please check RGB LED ring (refer to LCD Setting section for the details) LCD display Function buttons PV connectors AC input connectors AC output connectors (Load connection) Battery connectors Current sharing port Parallel communication port 10.
Page 6: Installation
INSTALLATION Unpacking and Inspection Before inﬆallation, please inspect the unit. Be sure that nothing inside the package is damaged. You should have received the following items inside of package: Inverter User manual Communication cable Preparation Before connecting all wirings, please take off bottom cover by removing two screws as shown below. Mounting the Unit Consider the following points before selecting where to inﬆall: Do not mount the inverter on ﬂammable conﬆruction...
Page 7: Battery Connection
Inﬆall the unit by screwing three screws. It’s recommended to use M4 or M5 screws. Battery Connection CAUTION: For safety operation and regulation compliance, it’s requeﬆed to inﬆall a separate DC over-current protector or disconnect device between battery and inverter. It may not be requeﬆed to have a disconnect device in some applications, however, it’s ﬆill requeﬆed to have over-current protection inﬆalled.
Page 8: Ac Input/Output Connection
WARNING: Shock Hazard Installation must be performed with care due to high battery voltage in series. CAUTION!! Do not place anything between the flat part of the inverter terminal and the ring terminal. Otherwise, overheating may occur. CAUTION!! Do not apply anti-oxidant substance on the terminals before terminals are connected tightly.
Page 9: Pv Connection
→Ground (yellow-green) L→LINE (brown or black) N→Neutral (blue) 5. Make sure the wires are securely connected. CAUTION: Important Be sure to connect AC wires with correct polarity. If L and N wires are connected reversely, it may cause utility short-circuited when these inverters are worked in parallel operation. CAUTION: Appliances such as air conditioner are required at least 2~3 minutes to restart because it’s required to have enough time to balance refrigerant gas inside of circuits.
Page 10: Final Assembly
Please follow below steps to implement PV module connection: 1. Remove insulation sleeve 10 mm for positive and negative conductors. 2. Check correct polarity of connection cable from PV modules and PV input connectors. Then, connect positive pole (+) of connection cable to positive pole (+) of PV input connector.
Page 11: Communication Connection
Communication Connection Serial Connection Please use supplied communication cable to connect to inverter and PC. Insert bundled CD into a computer and follow on-screen instruction to install the monitoring software. For the detailed software operation, please check user manual of software inside of CD. Wi-Fi Connection Wi-Fi module can enable wireless communication between off-grid inverters and monitoring platform.
Page 12: Operation
OPERATION Power ON/OFF Once the unit has been properly installed and the batteries are connected well, simply press On/Off switch to turn on the unit. Operation and Display Panel The operation and display panel, shown in below chart, is on the front panel of the inverter. It includes one RGB LED ring, four touchable function keys and a LCD display, indicating the operating status and input/output power information.
Page 13: Lcd Display Icons
LCD Display Icons Icon Function description Input Source Information Indicates the AC input voltage and frequency. Indicates the PV voltage, current and power. Indicates the battery voltage, charging stage, configured battery parameters, charging or discharging current. Configuration Program and Fault Information Indicates the setting programs.
Page 14 Indicate the output voltage, load in VA, load in Watt and output frequency. Battery Information Indicates battery level in battery mode and charging status in line mode by 0-24%, 25-49%, 50-74% and 75-100%. When battery is charging, it will present battery charging status. Status Battery voltage LCD Display...
Page 15 Output source priority setting display Indicates setting program 01 “Output source priority” is selected as “SUB”. Indicates setting program 01 “Output source priority” is selected as “SBU”. AC Input Voltage Range Setting Display Indicates setting program 02 is selected as “ ”.
Page 16: Lcd Setting
LCD Setting After pressing and holding ENTER button for 3 seconds, the unit will enter setting mode. Press “UP” or “DOWN” button to select setting programs. And then, press “ENTER” button to confirm the selection or ESC button to exit. Program Description Selectable option...
Page 17 240Vac 50Hz (default) 60Hz Output frequency Charge battery first Solar energy provides power to charge (default) battery as first priority. Solar supply priority Power the loads first Solar energy provides power to the loads as first priority. Bypass disable Bypass enable (default) Overload bypass: When enabled, the unit will...
Page 18 If this inverter/charger is working in Line, Standby or Fault mode, charger source can be programmed as below: Solar first Solar energy will charge battery as first priority. Utility will charge battery only when solar energy is not available. Solar and Utility (default) Solar energy and utility will charge Charger source priority: To configure charger...
Page 19 100A 110A (only for 5.6KW model) 120A (only for 5.6KW model) AGM (default) Flooded User-Defined If “User-Defined” is selected, battery charge voltage and low DC cut-off voltage can be set up in program 17, 18 and 19. Pylontech battery If selected, programs of 11, 17, 18 and 19 will be automatically set up.
Page 20 party Lithium battery If selected, programs of 02, 26, 27 and 29 will be automatically set up. No need for further setting. Please contact the battery supplier for installation procedure. Default setting: 56.4V If self-defined is selected in program 14, this program can be set up. Bulk charging voltage Setting range is from 48.0V to 64.0V.
Page 21 Return to default display If selected, no matter how users screen (default) switch display screen, it will automatically return to default display screen (Input voltage /output voltage) after no button is pressed for Auto return to default 1 minute. display screen Stay at latest screen If selected, the display screen will stay at latest screen user finally...
Page 22 L3 phase The inverter is operated in L3 phase in 3-phase application. Reset Not reset(Default) Reset PV energy storage 00:00 (Default) The setting range of start charging time for AC charger is from 00:00 to Start charging time for 23:00, increment of each click is 1 AC charger hour.
Page 23 On/Off control for RGB Enabled (default) Disable *It’s necessary to enable this setting to activate RGB LED lighting function. Normal (default) Brightness of RGB LED High Normal (default) Lighting speed of RGB High Power wheel Power cycling RGB LED effect Power chasing Solid on (Default) LED lighting portion will be changed...
Page 24 LED lighting portion will be changed by battery capacity percentage. Battery capacity percentage If “Solid on” is selected in #38, LED (Default) ring will light up with background color setting in #40. If “Power wheel” is selected in #38, LED ring will light up in 4 levels. If “cycling”...
Page 25 Purple White (Default) Background color of RGB LED Other If “other” is selected, the background color is set by RGB via software. Pink Orange Yellow Green Blue Sky blue Data Color for RGB LED Purple White (Default) Other If “other” is selected, the data color is set by RGB via software.
Page 26 Blue Sky blue Purple White (Default) Background color of RGB LED only available when data Presentation of data color is set to Energy source (Grid-PV-Battery). Other If “other” is selected, the background color is set by RGB via software. For minute setting, the range is from 00 to 59.
Page 27 USB Function Setting Follow below steps to upgrade firmware. Procedure LCD Screen Step 1: Insert an USB disk into the USB port ( N in product overview ). Press and hold “ ” button for 3 seconds to enter USB Function Setting Mode. It will show ”...
Page 28: Display Setting
Display Setting The LCD display information will be switched in turns by pressing “ ” or “ ” key. The selectable information is switched as the following table in order. Selectable information LCD display Input Voltage=230V, Input frequency=50Hz Utility voltage/ Utility frequency PV1 voltage=180V, PV1 current=8.0A, PV1 power=1440W PV voltage/ PV...
Page 29 Selectable information LCD display Battery voltage=54.0V, Floating charging voltage=54.0V, Charging current=7.8A Battery voltage, charging stage/ Configured battery Battery voltage=50.0V, Low DC cut-off voltage=42.0V, Discharging parameters/ Charging current=10A or discharging current Default Display Screen Output voltage=230V, Output frequency=50Hz Output voltage, load in VA, load in Watt switch Load in VA=2.0KVA, Output frequency=50Hz every 5 second/...
Page 30 Selectable information LCD display Load in Watt=1.9KW, Output frequency=50Hz Output voltage, load in VA, load in Watt switch every 5 second/ Output frequency Default Display Real date 2020-08-18. Screen Real date. Real time 11:31. Real time. This PV Today energy =8Wh. PV energy generated today.
Page 31 Selectable information LCD display This PV month energy = 8kWh. PV energy generated this month. This PV year energy = 108kWh, PV energy generated this year. PV Total energy = 108kWh. PV energy generated totally. Main CPU version 00050.72. Main CPU version checking. p c e p o w e r .
Page 32: Operating Mode Description
Selectable information LCD display Secondary CPU version 00022.01. Secondary CPU version checking. Operating Mode Description Operating mode Behaviors LCD display Battery is charged by utility. Standby mode Note: Battery is charged by PV energy. *Standby mode: The inverter is not turned on yet but at this time, the inverter can charge battery without AC No output power, solar...
Page 33 Battery is charged by PV energy and feed PV energy to grid. Standby mode Note: *Standby mode: The inverter is not turned on yet but at this time, the inverter can charge battery without AC No output power, solar or utility charger output.
Page 34 PV energy and utility charge battery, and utility provides power to load. PV energy charges battery, utility and PV energy provide power to the load. Output power from Line Mode utility. Charger available PV energy charges battery, PV energy provides power to the load and feeds remaining energy to the grid.
Page 35 PV energy charges battery and provides power to the load. Output power from Battery mode battery or PV Battery provides power to the load. PV provides power to the load. Only PV mode Output power from PV No charging. Fault mode Note: No output, no *Fault mode: Errors are...
Page 36 Warning Indicator Warning Code Warning Event Icon flashing Fan locked Over temperature Battery over charged Low battery Overload Inverter power derating Battery is not connected Communication lost between com. port and control board p c e p o w e r . c o m p c e p o w e r .
Page 37 Faults Reference Code Fault Code Fault Event Icon on Fan is locked. Over temperature Battery voltage is too high. Output is short circuited. Output voltage is abnormal. Overload time out. Bus voltage is too high. Bus soft start failure. PV current is over. PV voltage is over.
Page 38: Clearance And Maintenance For Anti-Dust Kit
CLEARANCE AND MAINTENANCE FOR ANTI-DUST KIT Overview Every inverter is already installed with anti-dusk kit from factory. Inverter will automatically detect this kit and activate internal thermal sensor to adjust internal temperature. This kit also keeps dusk from your inverter and increases product reliability in harsh environment.
Page 39: Specifications
SPECIFICATIONS MODEL 3.6KW 5.6KW RATED OUPUT POWER 3600W 5600W PV INPUT (DC) Max. PV Power 5000W 6000W Max. PV Array Open Circuit Voltage 500 VDC 450 VDC PV Input Voltage Range 120 VDC~500 VDC 120 VDC~450 VDC MPPT Range @ Operating Voltage 120 VDC~430 VDC Max.
Page 40: Trouble Shooting
TROUBLE SHOOTING Problem LCD/LED/Buzzer Explanation / Possible cause What to do Unit shuts down LCD/LEDs and buzzer automatically will be active for 3 The battery voltage is too low 1. Re-charge battery. during startup seconds and then (<1.91V/Cell) 2. Replace battery. process.
Page 41: Appendix I: Parallel Function
Appendix I: Parallel function 1. Introduction This inverter can be used in parallel with two different operation modes. 1. Parallel operation in single phase is with up to 9 units. The supported maximum output power for 3.6KW is 32.4KW/32.4KVA. The supported maximum output power for 5.6KW is 50.4KW/50.4KVA. 2.
Page 42 Step 3: Remove two screws as below chart to take out cover of parallel communication. Step 4: Install new parallel board with 2 screws tightly. Step 6: Connect 2-pin to original position. Step 7: Put communication board back to the unit. Step 8: Put wire cover back to the unit.
Page 43 4. Mounting the Unit When installing multiple units, please follow below chart. NOTE: For proper air circulation to dissipate heat, allow a clearance of approx. 20 cm to the side and approx. 50 cm above and below the unit. Be sure to install each unit in the same level. 5.
Page 44 Recommended breaker specification of battery for each inverter: Model 1 unit* 3.6KW 100A/70VDC 5.6KW 140A/70VDC *If you want to use only one breaker at the battery side for the whole system, the rating of the breaker should be X times current of 1 unit. “X” indicates the number of inverters connected in parallel. Recommended breaker specification of AC input with single phase: 2 units 3 units...
Page 45 Communication Connection Three inverters in parallel: Power Connection Load Communication Connection p c e p o w e r . c o m...
Page 46 Four inverters in parallel: Power Connection Load Communication Connection Five inverters in parallel: Power Connection Load Communication Connection p c e p o w e r . c o m...
Page 47 Six inverters in parallel: Power Connection Load Communication Connection Seven inverters in parallel: Power Connection Load Communication Connection p c e p o w e r . c o m...
Page 48 Eight inverters in parallel: Power Connection Load Communication Connection Nine inverters in parallel: Power Connection Load Communication Connection 5-2. Support 3-phase equipment Three inverters in each phase: Power Connection Load p c e p o w e r . c o m...
Page 49 Communication Connection Three inverters in one phase, three inverters in second phase and two inverter for the third phase: Power Connection Load Communication Connection Seven inverters in one phase and one inverter for the other two phases: Power Connection Load Note: It’s up to customer’s demand to pick 7 inverters on any phase.
Page 50 ⑧ Three inverters in one phase, two inverters in second phase and two inverters for the third phase: Power Connection Load Communication Connection Two inverters in each phase: Power Connection Load Communication Connection p c e p o w e r . c o m...
Page 51 Four inverters in one phase and one inverter for the other two phases: Power Connection Load Communication Connection Three inverters in one phase, two inverters in second phase and one inverter for the third phase: Power Connection Load Communication Connection p c e p o w e r .
Page 52 Three inverters in one phase and only one inverter for the remaining two phases: Power Connection Load Communication Connection Two inverters in two phases and only one inverter for the remaining phase: Power Connection Load p c e p o w e r . c o m...
Page 53 Communication Connection Two inverters in one phase and only one inverter for the remaining phases: Power Connection Load Communication Connection One inverter in each phase: Power Connection Load p c e p o w e r . c o m...
Page 54 Communication Connection WARNING: Do not connect the current sharing cable between the inverters which are in different phases. Otherwise, it may damage the inverters. 6. PV Connection Please refer to user manual of single unit for PV Connection. CAUTION: Each inverter should connect to PV modules separately. 7.
Page 55 Fault code display: Fault Code Fault Event Icon on Power feedback protection Firmware version inconsistent Current sharing fault CAN fault Host loss Synchronization loss Battery voltage detected different AC input voltage and frequency detected different AC output current unbalance AC output mode setting is different Code Reference: Code Description...
Page 56 8. Commissioning Parallel in single phase Step 1: Check the following requirements before commissioning: Correct wire connection Ensure all breakers in Line wires of load side are open and each Neutral wires of each unit are connected together. Step 2: Turn on each unit and set “PAL” in LCD setting program 28 of each unit. And then shut down all units. NOET: It’s necessary to turn off switch when setting LCD program.
Page 57 LCD display in L1-phase unit LCD display in L2-phase unit LCD display in L3-phase unit Step 5: If there is no more fault alarm, the system to support 3-phase equipment is completely installed. Step 6: Please switch on all breakers of Line wires in load side. This system will start to provide power to the load.
Page 58: Appendix Ii: Bms Communication Inﬆallation
Appendix II: BMS Communication Installation 1. Introduction If connecting to lithium battery, it is recommended to purchase a custom-made RJ45 communication cable. Please check with your dealer or integrator for details. This custom-made RJ45 communication cable delivers information and signal between lithium battery and the inverter.
Page 59 PYLONTECH Dip Switch: There are 4 Dip Switches that sets different baud rate and battery group address. If switch position is turned to the “OFF” position, it means “0”. If switch position is turned to the “ON” position, it means “1”. Dip 1 is “ON”...
Page 60 Step 2: Use supplied RJ45 cable (from battery module package) to connect inverter and Lithium battery. * For multiple battery connection, please check battery manual for the details. Note for parallel system: 1. Only support common battery installation. 2. Use custom-made RJ45 cable to connect any inverter (no need to connect to a specific inverter) and Lithium battery.
Page 61 If communication between the inverter and battery is successful, the battery icon on LCD display will flash. Generally speaking, it will take longer than 1 minute to establish communication. PYLONTECH After configuration, please set up LCD panel in inverter and make wiring connection to Lithium battery as the following steps.
Page 62 Step 5. Be sure to select battery type as “PYL” in LCD program 14. WECO Step 1. Use custom-made RJ45 cable to connect inverter and Lithium battery. Note for parallel system: 1. Only support common battery installation. 2. Use custom-made RJ45 cable to connect any inverter (no need to connect to a specific inverter) and Lithium battery.
Page 63 Note for parallel system: 1. Only support common battery installation. 2. Use custom-made RJ45 cable to connect any inverter (no need to connect to a specific inverter) and Lithium battery. Simply set this inverter battery type to “SOL” in LCD program 5. Others should be “USE”. Step 2.
Page 64 4. LCD Display Information Press “UP” or “DOWN” key to switch LCD display information. It will show battery pack and battery group number before “Main CPU version checking” as below screen. Selectable information LCD display Battery pack numbers & Battery Battery pack numbers = 3, battery group numbers = 1 group numbers 5.
Page 65: Appendix Iii: The Wi-Fi Operation Guide In Remote Panel
Appendix III: The Wi-Fi Operation Guide in Remote Panel 1. Introduction Wi-Fi module can enable wireless communication between off-grid inverters and monitoring platform. Users have complete and remote monitoring and controlling experience for inverters when combining Wi-Fi module with SolarPower APP, available for both iOS and Android based device. All data loggers and parameters are saved in iCloud.
Page 66 Then, a “Registration success” window will pop up. Tap “Go now” to continue setting local Wi-Fi network connection. Step 2: Local Wi-Fi Module Configuration Now, you are in “Wi-Fi Config” page. There are detailed setup procedure listed in “How to connect?” section and you may follow it to connect Wi-Fi.
Page 67 Then, return to SolarPower APP and tap “ ” button when Wi-Fi module is connected successfully. Step 3: Wi-Fi Network settings icon to select your local Wi-Fi router name (to access the internet) and enter password. Step 4: Tap “Confirm” to complete the Wi-Fi configuration between the Wi-Fi module and the Internet. If the connection fails, please repeat Step 2 and 3.
Page 68 2-3.Login and APP Main Function After finishing the registration and local Wi-Fi configuration, enter registered name and password to login. Note: Tick “Remember Me” for your login convenience afterwards. Overview After login is successfully, you can access “Overview” page to have overview of your monitoring devices, including overall operation situation and Energy information for Current power and Today power as below diagram.
Page 69 Devices Tap the icon (located on the bottom) to enter Device List page. You can review all devices here by adding or deleting Wi-Fi Module in this page. Add device Delete device icon on the top right corner and manually enter part number to add device. This part number label is pasted on the bottom of inverter.
Page 70 2-4.Device List In Device List page, you can pull down to refresh the device information and then tap any device you want to check up for its real-time status and related information as well as to change parameter settings. Please refer to the parameter setting list.
Page 71 Device Information Data Users can check up 【Basic Information】,【Product Information】,【Rated information】,【History】, and 【Wi-Fi Module Information】by swiping left. Swipe left 【Basic Information】 displays basic information of the inverter, including AC voltage, AC frequency, PV input voltage, Battery voltage, Battery capacity, Charging current, Output voltage, Output frequency, Output apparent power, Output active power and Load percent.
Page 72 There are three ways to modify setting and they vary according to each parameter. a) Listing options to change values by tapping one of it. b) Activate/Shut down functions by clicking “Enable” or “Disable” button. c) Changing values by clicking arrows or entering the numbers directly in the column. Each function setting is saved by clicking “Set”...
Page 73 Overload If disabled, the unit won't be restarted after over-temperature fault is Temperature solved. Auto Restart Overload If enabled, the unit will enter bypass mode when overload occurs. Bypass Beeps While If enabled, buzzer will alarm when primary source is abnormal. Primary Source Interrupt Buzzer...
