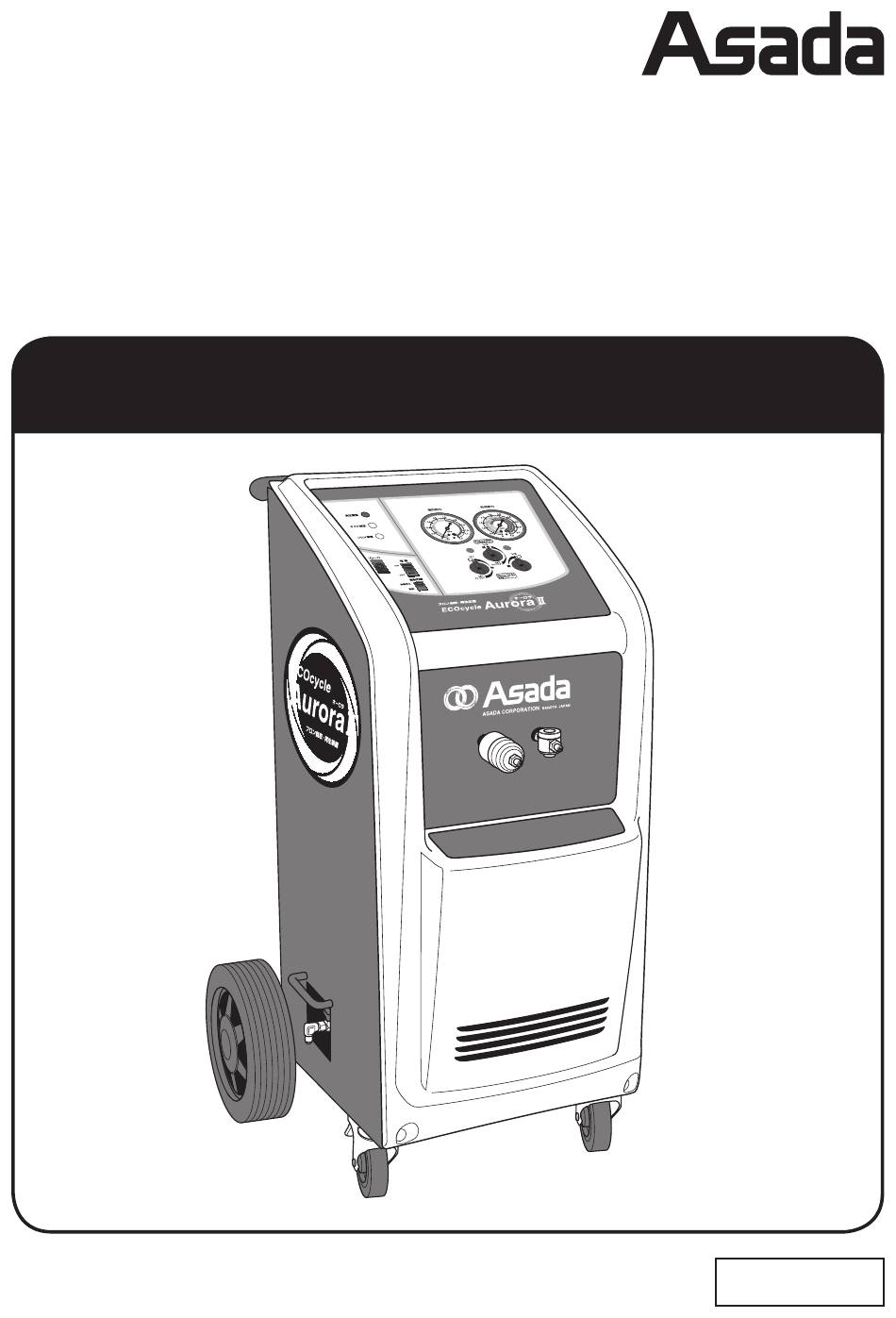

- Page 1 Recovery and Reclaim machine ECOcycle Aurora Ⅱ INSTRUCTION MANUAL I M 14 01 【Please read this manual before operating】...
-
Page 2: Table Of Contents
ECOcycle Aurora Ⅱ FOR SAFE OPERATION Thank you for selecting ECOcycle Aurora Ⅱ . ● Please give this Operation Manual to the persons who operate this machine. ● The contents of this manual must be thoroughly read by the operating persons. ● Obtain the highest performance efficiency of this machine by an appropriate safe operation. ● Keep this manual at a safe place easily accessible by operating person. ● Do not use this machine for purposes other than originally intended. ● Check the following as soon the unit is delivered: ・ Is the specification same as the ordered product? ・ Is there damage or deformation caused during delivery transit? ・ Is there shortage of accessories? If any dissatisfaction is found, please contact the store you have purchased or our sales department. (The contents of this manual may be changed without prior notice for changes made for improvement.) CATEGORIES OF WARNING SIGNS The warning signs used in this manual or on the product are divided in the following two categories. Situation that may cause death or serious injury if the operating Personnel WARNING contact or stand near the machine or the third party person Erroneously operates the machine. -
Page 3: Warning For Safety
ECOcycle Aurora Ⅱ WARNING FOR SAFETY ● General warnings in operating this machine are mentioned in this section. ● While specific details are mentioned in each particular clause. WARNING ◆ When performing recovery, choose location that has good ventilation. Leakage of gas without sufficient ventilation may cause lack of oxygen cause suffocation. ◆ Can not recover flammable gas (Hydrocarbon or this kind of hydrocarbon material) When mix except refrigerants [Ammonia, hydrocarbon （propane, isobutene,）etc] to the machine, it may cause explosion. ◆ Burning Freon creates a deadly poisonous Carbon Oxy-Chloride and inhaling of this gas is very dangerous. There should be absolutely no flammable material near the working area and must operate under good ventilation. - Page 4 ECOcycle Aurora Ⅱ WARNING ◆ Check electric power plug regularly to make sure there is no problem. Always have the plug inserted firmly. When the plug has dirt or oil, and the connection is incomplete, it may cause electric shock or fire. ◆ Do not have the electric cord connected with other electric devices or branched with other cords. It may cause fire. ◆ Do not pull the electric power source cord and remove from the outlet. It may cause fire or injury. ◆ The power source should be AC220-240V 10A or use a generator whose capacity is 3KVA or more.
- Page 5 ECOcycle Aurora Ⅱ CAUTION ◆ Install a filter at the suction port. Otherwise the compressor may be damaged. ◆ An extension cord used should be a three-core cabtyre cable with a length of 20m or less when its wire diameter is 2.0mm or with a length of 30m or less when its wire diameter is 3.5mm An unsuitable extension cord (too thin or too long) may lead to starting failure or fire. Or electrical components such as capacitor, relay and so on may be damaged. If the cord used is a two-core cord without a ground wire, you may get electric shock. ◆ Do not recover refrigerant which contains sealant. Sealant may clog the valves or the check valves. ◆ Do not let visitors touch the machine. ◆ Do not use the machine when the result is unpredictable. ◆ Do not use the machine for purposes other than the original intent. This machine is designed to recover the specified refrigerants. ◆ Do not operate under an excessive heavy load to the machine. Operating under an excessive load can not only cause damage to the machine but also causes an accident. ◆ Do not use the machine on a vibrating floor or on a sloping place. The machine or the cylinder may fall down and lead to accident. ◆ The operating platform and the work area must be kept neat and clean. at all time and have enough lighting. Poor working environment causes accident. ◆ Do not operate the machine if the operator is under fatigue condition or influenced by alcoholic drink or medicines. ◆ When the Recovery Machine is not in use, storage at dry space and out of reach by children.
- Page 6 ECOcycle Aurora Ⅱ CAUTION ◆ When the Recovery Machine is dropped or hit, inspect immediately for damage, crack, dent, etc. Recovery under damaged, cracked and dented condition may cause injury. ◆ Check every day if there is deformed or corroded area. ◆ If abnormal condition (strange smell, vibration, strange noise) is noticed, stop the unit and refer to the Page22 “ BEFORE REQUESTING REPAIR OR SERVICES” in the manual. ◆ Request for repair or service instead of disassembling for repair, contact the store where the machine was purchased.
-
Page 7: Components Of The Machine
ECOcycle Aurora Ⅱ COMPONENTS OF THE MACHINE Name of Each Part Labels are required by law for safety and the warnings are placed on the recovery machine. If the label comes off the machine or became dirty and unreadable, request us for new label. Replace the label at the same position on the machine. Suction pressure Discharge pressure gauge gauge Warning lamp for high pressure Lamp for oil full Lamp for refrigerant tank full Switching valve Breaker Discharge valve Power Suction valve Auto OFF/ Manual switch Bypass switch for Tank full Description label... -
Page 8: Specification
ECOcycle Aurora Ⅱ Specification Description Eco Cycle Aurora Ⅱ Code No. AR023 R12 、R22 、R500 、R502 、R114 、R124 、R134a 、R403B 、R404A 、 Recovery refrigerant R407C 、R407D 、R410 A、R412 A、R413 A、R417A、R422 A、R422D 、 R423 A、R507 A、R509A、R32, and more Reclaimable refrigerant R12、R22、R500、R502、R134a、R404A、R410A、R507A、R509A、R32 Recovery method Liquid recovery method（possible to vapor recovery） Reclaim method Electric statistic separation reclaim method Power supply 220V-240V（50 / 60Hz）recommending 10A over Compressor 750W（1HP） Oil less Dimension 560 x 520 x 973mm (L x W x H) Weight 63kg Electric consumption 587/622W (50/60Hz) Electric current of operation 8.9/6.0A (50/60Hz) ・ 34A Electric current of starting Operating temperature 5 – 35℃ Float sensor type : Recovery cylinder (with float sensor) Applicable cylinder 6L・12L・24L・40L・120L （over fill protection method）... -
Page 9: Optional Accessories (Recovery Cylinder)
ECOcycle Aurora Ⅱ Optional Accessories (Recovery Cylinder) Description Capacity Port Code No. Description Capacity Port Code No. Refrigerant TF040 TF080 recovery cylinder 1/4" flare TF090 120L TF070 1/4" flare (without float sensor) TF056 ＊ Our Limit Scale must be used when recovery TF057 cylinders (without float sensor) are used. Refrigerant 1/4" flare TF130 recovery cylinder ＊ Our original recovery cylinder should be used. 3/8" flare TF131 (with float sensor) -
Page 10: How To Use
ECOcycle Aurora Ⅱ HOW TO USE Preparation before Operation 1）Discharge nitrogen gas from inside machine The unit is filled with Nitrogen gas to prevent damage during transit. Suction / Discharge ① Connecting machine to the proper power valve OPEN supply. ② [Remove cap] of inlet port and discharge port. ③ [Open] suction valve and discharge valve. Inlet port / ④ Inside machine will become atmospheric Outlet port pressure after exhaust Nitrogen gas. -
Page 11: Recovery / Reclaim Operation
ECOcycle Aurora Ⅱ Recovery / Reclaim Operation 1）Connection of hose and cords High pressure side pressure side CLOSE CLOSE Liquid Vapor valve valve CLOSE CLOSE Filter Safety cable Low pressure side CLOSE CLOSE Liquid port High pressure side CLOSE High pressure side Manifold Cylinder with over System Eco Cycle Aurora (Optional Acc) protection sensor ① Connect the hoses as above. - Page 12 ECOcycle Aurora Ⅱ 2）Evacuation of the recovery machine and the hoses Suction valve Switching valve Discharge valve High OPEN PURGE OPEN pressure side pressure side CLOSE CLOSE PURGE OPEN CONTINUOUS OPERATION Liquid valve Vapor valve CLOSE CLOSE Ball valve Low pressure side OPEN CLOSE Ball valve OPEN High pressure side CLOSE Hose TAKE OFF...
- Page 13 ECOcycle Aurora Ⅱ 3）Recovery / Reclaim procedure CAUTION ◆ Warm up the unit when operating lower than temperature of 10℃ . Refer to page 17 “Warming up Operation” ◆ Connect the charge faster to suction port when recovering R134a and R12 and warm up the unit. Refer to page 13 “Recovery/reclaim method in recovering R134a and R12” High pressure side pressure side Suction valve Switching valve Discharge valve CLOSE OPEN OPEN RECOVERY OPEN...
- Page 14 ECOcycle Aurora Ⅱ Recovery/reclaim method in recovering R134a and R12 ● Operate in accordance with following procedure. ■ Use the charge faster （optional accessory） ● Connect the charge faster （ optional accessory）between the suction side charging hose and the manifold. ■ Warm up ● Always warm up the unit regardless of temperature. High pressure side pressure side Suction valve Switching valve Discharge valve CLOSE OPEN OPEN RECOVERY CLOSE OPEN...
- Page 15 ECOcycle Aurora Ⅱ Recovery Procedure of R410A or When the Pressure of Refrigerant is High ● Follow the following procedure when R410A or refrigerant at high pressure by heat is recovered. See “Liquid/Vapor Recovery Procedure” for the standard operation. CAUTION ◆ Noncondensable substance (air) may exist in the cylinder when the temperature of the cylinder rises abnormally during recovery. Remove the air or replace the cylinder. ◆ The method of removing air is refer to Page18 “How to Purge Non condensable Gases” ■ Use Cooling Unit CL3 (optional accessory) ● Cooling Unit (Code No. ES801) can lower the temperature of refrigerant at high pressure by approximately 5 to 10℃ . It improves the recovery rate. See the instruction manual of Cooling Unit for detailed information. ■ Replacement of spare cylinder ● Use an evacuated spare cylinder.
- Page 16 ECOcycle Aurora Ⅱ 4）Refrigerant Discharge (Purge) Procedure CAUTION ◆ Adjust suction pressure less than 0.2MPa on purging. This may cause of damaging compressor. Suction valve Switching valve Discharge valve CLOSE PURGE OPEN High CLOSE 0.2MPa pressure side pressure side PURGE CLOSE CLOSE Auto OFF Liquid valve Vapor valve OPEN CLOSE Ball valve Low pressure side CLOSE CLOSE CLOSE Ball valve...
-
Page 17: Discharge Oil Method (Oil Separator)
ECOcycle Aurora Ⅱ Discharge Oil Method (Oil separator) Oil discharge operate when turn on the oil tank full lump（①～⑧）or fi nish daily operation（⑤～⑧）. ① [CLOSE] the ball valve of suction hose. ② Starting machine during push the tank full TANK FULL bypass switch on the lower right of handle in BYPASS SWITCH the back panel under turn to automatically stop of power switch. ＊ Keep pushing the switch, the switch will get back if stop pushing. -
Page 18: Warm Up Operation
ECOcycle Aurora Ⅱ Warm up Operation In this machine need warm up operation for drop down the effective of heat exchange in the oil separator when the temperature become under 10 ℃ . Please follow up the warm up operation. Suction valve Switching valve Discharge valve High OPEN RECOVERY CLOSE pressure side pressure side CLOSE OPEN OPEN Auto OFF Ball valve CLOSE... -
Page 19: How To Purge Non Condensable Gases
ECOcycle Aurora Ⅱ How to Purge Non condensable Gases Leave the cylinder for more than 2 hours. ① Measure the surface temperature of the cylinder. ② Connect a pressure gauge to the liquid port of the cylinder and check the pressure. Liquid Vapor ③ See the saturation temperature and pressure chart.（chart1） ④ Compare pressure in the chart with pressure of the cylinder. ⑤ If the pressure of the cylinder is higher by 0.0345MPa（5psi）... -
Page 20: Recovery Cylinder
ECOcycle Aurora Ⅱ RECOVERY CYLINDER Risk of overfilling ● Refrigerant is a high pressure gas and mistakes in use or handling will lead to a serious accident. 1）Relation between the temperature and the pressure of refrigerant in a cylinder The pressure of the refrigerant varies depending on the ambient Saturation pressure and saturation temperature of each type of refrigerant temperature when the refrigerant is filled in a cylinder. Temperature Some liquid refrigerant R502 Pressure rises rises evaporates R134a At this time, lowering of the liquid level by evaporation and rising R407C of the liquid level by specific volume increase occur at the same R410A time and balance. R404A R507A Temperature Some vapor refrigerant Pressure drops drops liquefies At this time, rising of the liquid level by liquefaction and lowering of the liquid level by specific volume decrease occur at the same time and balance. The right graph shows the relation between the pressure (saturation pressure) and the temperature (saturation temperature) for each kind of refrigerant. -
Page 21: Maintenance & Inspection
ECOcycle Aurora Ⅱ MAINTENANCE & INSPECTION ● Inspect and clean regularly as instructed below and perform correction or replacement timely. Maintenance ① Keep clean gauges and each part of indication on the front panel by wiping clean cloth. ② Keep clean air blow hole and condenser to make cooling down by Air effective. Replace Molecular sieve pack Dry filter is installed back side of machine. ● Replacement period ・ ・・ amount of refrigerant 150 － 200 kg ① Recover all of refrigerant from machine until 0MPa（psi）. ② Open the lid of Dry filter and remove out the filer core. ③ Open the lid of removed Molecular sieve pack and remove Spring, Mesh plate, and Filter. -
Page 22: In Case Of Reclaim Other Refrigerant
ECOcycle Aurora Ⅱ In case of reclaim other refrigerant ① Replacing Molecular sieve pack refer to P20 after discharging oil refer to P16. ② Connect vacuum pump to the discharge port of the oil separator by using hose. ③ Turn [ON] the vacuum pump and [OPEN] the valve of oil discharge port. ④ [CLOSE] the oil discharge valve and turn [OFF] the vacuum pump after more than 1 hour of vacuum. ⑤ Take off connected hose between vacuum pump and the discharge port of oil separator. -
Page 23: Before Requesting Repair Or Services
ECOcycle Aurora Ⅱ BEFORE REQUESTING REPAIR OR SERVICES Symptom Cause Solution ① The power cord is not plugged in. ① Plug in the power cord ② The safety cable is not connected. ② Connect the safety cable. ③ The machine is in high pressure shut ③ Reduce the pressure in the high off. pressure line. ④ The breaker tripped. ④ Reset the breaker. ⑤ The thermal protector operates due to ⑤ Wait until the motor cools down. overheating of the motor. ⑥ The cylinder is full. ⑥ Replace the cylinder The machine will ⑦ The float sensor of the cylinder is out not start. ⑦ Repair of order. -
Page 24: Electric Wiring Diagram
ECOcycle Aurora Ⅱ ELECTRIC WIRING DIAGRAM 【ELECTRIC WIRING DIAGRAM】 Oil full fill bypass Safety cable switch High pressure lamp Oil float switch Low pressure switch Oil full Full fill fill lamp High lamp pressure Auto off/Manual switch switch for operation Relay Starting condenser centrifugal switch Running Circuit breaker condenser Power switch thermal Compressor protector Power cord Relay Electrostatic filter system... -
Page 25: Flow Diagram
ECOcycle Aurora Ⅱ FLOW DIAGRAM Condenser Compressor High pressure switch Safety relief valve Check Low pressure switch valve Recovery Purge High pressure gauge Low pressure gauge Recovery Purge Electrostatic Molecular filter system sieve Oil separator Double pipe Suction port Discharge port... - Page 26 ECOcycle Aurora Ⅱ...
- Page 27 ECOcycle Aurora Ⅱ...
- Page 28 ●Customer Memo Please fill in for your record in the future The information is helpful for inquiry and ordering parts. Products Number ： Date Purchased ： Store Purchased the Unit ： Code No. IM0345...
