Operator Manual (EN)
26'' & 30'' Cylindrical
24'' & 28'' Orbital
Read the Operators Manual
Read the Operators Manual
before using the machine.
before using the machine.
Read the Safety Messages
Read the Safety Messages
before servicing machine.
before servicing machine.
Models:
28'' & 32'' Disk
V20.153
V20.153
T-L-SERIES-OP-EN
T-L-SERIES-OP-EN
Advertisement
Table of Contents
Related Manuals for Timberline L Series
Summary of Contents for Timberline L Series
- Page 1 Operator Manual (EN) Models: 28'' & 32'' Disk 26'' & 30'' Cylindrical 24'' & 28'' Orbital Read the Operators Manual Read the Operators Manual before using the machine. before using the machine. Read the Safety Messages Read the Safety Messages before servicing machine.
-
Page 2: Introduction

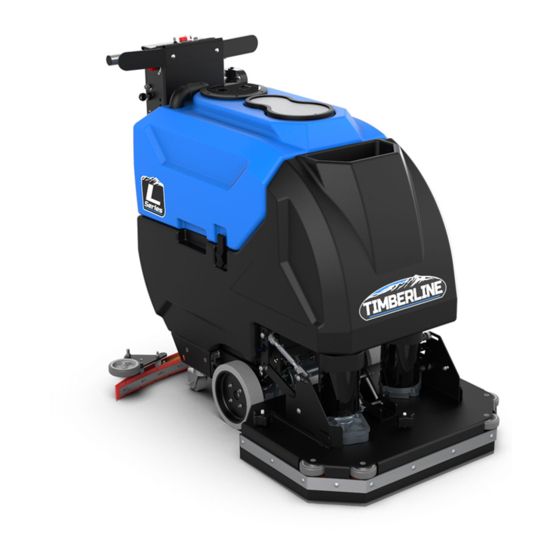

SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. Intended use The Timberline L-Series walk-behind scrubber is intended for commercial applications with hard floor surfaces such as concrete, VCT, tile and grout, stone, ect. This machine is not designed to clean carpets or sand wooden surfaces. Use only OEM pads/brushes and commercially available floor cleaning detergents. -
Page 3: Table Of Contents
Vac Clog Light ... . 22 DAILY MAINTENANCE Clean Cylindrical Hopper ..23 Charge Batteries ..24 TIMBERLINE L-SERIES Questions? Call 877-401-0730 Use OEM Parts... -
Page 4: Safety
An open flame or spark can cause this gas not use flammable materials in Tank or pick up. to explode. Serious personal injury or property damage could occur. Only charge the Batteries in this machine in a well ventilated area. TIMBERLINE L-SERIES Questions? Call 877-401-0730 Use OEM Parts... -
Page 5: Safety Labels
Do not operate this machine if any parts have been controller. damaged or removed. CAUTION To avoid damage to the electronic control components of this machine, Do not store this machine outdoors. Do not pressure wash this machine. TIMBERLINE L-SERIES Questions? Call 877-401-0730 Use OEM Parts... -
Page 6: Operation Machine Overview
9. Recovery Tank Clean Out 10. Foam Float Ball & White Filter 11. Solution Fill 12. Tank Latch 13. Charging Port 14. Recovery Drain Hose 15. Solution Sight Tube & Drain Hose 16. Squeegee Lever TIMBERLINE L-SERIES Questions? Call 877-401-0730 Use OEM Parts... -
Page 7: Central Command Overview
19. Deck Switch Up (I ) / Down (O) 9. Negative BUSS Circuit Breaker 20. Down Pressure Toggle Switch (Optional) 10. Vac Circuit Breaker 21. Drive Switch 11. Speed Control Knob 22. Reverse Switch 13 14 15 16 TIMBERLINE L-SERIES Questions? Call 877-401-0730 Use OEM Parts... -
Page 8: Squeegee Installation
OPERATION Squeegee Installation TIMBERLINE L-SERIES Questions? Call 877-401-0730 Use OEM Parts... -
Page 9: Squeegee Adjustment
OPERATION Squeegee Adjustment (RH) (LH) TIMBERLINE L-SERIES Questions? Call 877-401-0730 Use OEM Parts... -
Page 10: Battery Setup
OPERATION Battery Setup Approved Drains Only Approved Drains Only Machine On Level Ground Machine On Level Ground Decks =(x2) 150 Amp Hr. Batter Decks =(x2) 150 Amp Hr. Batteries TIMBERLINE L-SERIES Questions? Call 877-401-0730 Use OEM Parts... -
Page 11: Battery Charger Use
OPERATION Battery Charger Use 10-20 AMP TIMBERLINE L-SERIES Questions? Call 877-401-0730 Use OEM Parts... -
Page 12: Forward Drive
OPERATION Forward Drive + / - 3° MAX TIMBERLINE L-SERIES Questions? Call 877-401-0730 Use OEM Parts... -
Page 13: Reverse Drive
OPERATION Reverse Drive + / - 3° MAX TIMBERLINE L-SERIES Questions? Call 877-401-0730 Use OEM Parts... -
Page 14: Fill Solution Tank
OPERATION Fill Solution Tank TIMBERLINE L-SERIES Questions? Call 877-401-0730 Use OEM Parts... -
Page 15: Scrubbing
OPERATION Scrubbing TIMBERLINE L-SERIES Questions? Call 877-401-0730 Use OEM Parts... -
Page 16: Drying
OPERATION Drying TIMBERLINE L-SERIES Questions? Call 877-401-0730 Use OEM Parts... -
Page 17: Drain Recovery Tank
OPERATION Drain Recovery Tank Approved Drains Only Approved Drains Only TIMBERLINE L-SERIES Questions? Call 877-401-0730 Use OEM Parts... -
Page 18: Flushing Recovery Tank
OPERATION Flushing Recovery Tank Approved Drains Only Approved Drains Only Approved Drains Only Approved Drains Only TIMBERLINE L-SERIES Questions? Call 877-401-0730 Use OEM Parts... -
Page 19: Options Vac Wand
OPTIONS Vac Wand TIMBERLINE L-SERIES Questions? Call 877-401-0730 Use OEM Parts... -
Page 20: Onboard Charger
OPTIONS Onboard Charger TIMBERLINE L-SERIES Questions? Call 877-401-0730 Use OEM Parts... -
Page 21: Brush Pressure
OPTIONS Brush Pressure +/- TIMBERLINE L-SERIES Questions? Call 877-401-0730 Use OEM Parts... -
Page 22: Vac Clog Light
OPTIONS Vac Clog Light TIMBERLINE L-SERIES Questions? Call 877-401-0730 Use OEM Parts... -
Page 23: Daily Maintenance
DAILY MAINTENANCE Clean Cylindrical Hopper TIMBERLINE L-SERIES Questions? Call 877-401-0730 Use OEM Parts... -
Page 24: Charge Batteries
DAILY MAINTENANCE Charge Batteries 10-20 AMP TIMBERLINE L-SERIES Questions? Call 877-401-0730 Use OEM Parts... -
Page 25: Weekly Maintenance (<25 Hrs)
WEEKLY MAINTENANCE (<25 HRS) Clean White Filter/Screen TIMBERLINE L-SERIES Questions? Call 877-401-0730 Use OEM Parts... -
Page 26: Rotate Disk Brushes
WEEKLY MAINTENANCE (<25 HRS) Rotate Disk Brushes < 25-HOURS TIMBERLINE L-SERIES Questions? Call 877-401-0730 Use OEM Parts... -
Page 27: Rotate Cylindrical Brush
WEEKLY MAINTENANCE (<25 HRS) Rotate Cylindrical Brush 1/2'' WRENCH < 25-HOURS TIMBERLINE L-SERIES Questions? Call 877-401-0730 Use OEM Parts... -
Page 28: Replace Orbital Pads
WEEKLY MAINTENANCE (<25 HRS) Replace Orbital Pads TIMBERLINE L-SERIES Questions? Call 877-401-0730 Use OEM Parts... -
Page 29: Clean Solution Filter
WEEKLY MAINTENANCE (<25 HRS) Clean Solution Filter TIMBERLINE L-SERIES Questions? Call 877-401-0730 Use OEM Parts... -
Page 30: Squeegee Blade Replacement
WEEKLY MAINTENANCE (<25 HRS) Squeegee Blade Replacement USED X1 USED X4 ROUGH SURFACES 180° SMOOTH SURFACES TIMBERLINE L-SERIES Questions? Call 877-401-0730 Use OEM Parts... -
Page 31: Drain Solution Tank
WEEKLY MAINTENANCE (<25 HRS) Drain Solution Tank Approved Drains Only Approved Drains Only TIMBERLINE L-SERIES Questions? Call 877-401-0730 Use OEM Parts... -
Page 32: Monthly Maintenance (<100 Hrs)
MONTHLY MAINTENANCE (<100 HRS) Deck Shroud Curtain Replacement 7/16'' TIMBERLINE L-SERIES Questions? Call 877-401-0730 Use OEM Parts... -
Page 33: Cylindrical Side Wiper Replacement
MONTHLY MAINTENANCE (<100 HRS) Cylindrical Side Wiper Replacement 1/2'' WRENCH 7/16'' TIMBERLINE L-SERIES Questions? Call 877-401-0730 Use OEM Parts... -
Page 34: Deck Leveling
MONTHLY MAINTENANCE (<100 HRS) Deck Leveling 1/4'' 1/2'' 3/4'' 1/2'' 3/4'' TIMBERLINE L-SERIES Questions? Call 877-401-0730 Use OEM Parts... -
Page 35: Other
3000 Grit HD Non Woven Polishing Pad 300-20143000 6000 Grit Diamond Poly Pad EDGE-4070 Tile/Grout Renovator Pad EDGE-4048 Dominator HD Strip Pad EDGE-4055 Maroon ECO Prep Pad EDGE-2407 EDGE-4056 Microfiber Pad EDGE-2436 EDGE-6036 TIMBERLINE L-SERIES Questions? Call 877-401-0730 Use OEM Parts... - Page 36 Pad Driver #40-423 White ##-422W Light White Spring Clip CYLINDRICAL BRUSHES: BRUSHES MODEL 26'' MODEL 30'' LEVEL CYLINDRICAL CYLINDRICAL Midi Grit 75-246C 75-286C Medium Light Grit 75-246PS 75-286PS Moderate Nylon 75-246N 75-286N Light TIMBERLINE L-SERIES Questions? Call 877-401-0730 Use OEM Parts...
-
Page 37: Squeegee Blade Kits
Squeegee blade kits include (1) Rear Blade, (1) Front Squeegee Assemblies (complete) listed above all come Blade, and (2) Caster Wheels with hardware. with Linatex blades. NOTICE Size is denoted by label on top squeegee. TIMBERLINE L-SERIES Questions? Call 877-401-0730 Use OEM Parts... -
Page 38: Pm Sheet
Vacuum Float Ball Screen Vacuum Box White Filter 2” Round Final Vac Screen Solution Site Tube CLEAN & INSPECT – DRIVE IN SPEC REPAIR PROBLEM Drive Wheels & Casters Condition Grease Caster Swivel PG. 1 TIMBERLINE L-SERIES Questions? Call 877-401-0730 Use OEM Parts... - Page 39 Fill Solution Tank – ¾ Full Scrub & Dry Fine Tune Squeegee Adjustments MMENTS & RECOMMENDATIONS ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ Servicing Distributor: Technician’s Name: Date: Signature: Customer’s Name: Date: Signature: PG. 2 TIMBERLINE L-SERIES Questions? Call 877-401-0730 Use OEM Parts...
-
Page 40: Battery Chargers
Please refer to OEM Charger Operating Instructions for more information. Onboard / AGM / International Chargers: AC Power: 80-270VAC / 50-60Hz DC Power OUT: 36VDC / 18A Please refer to OEM Charger Operating Instructions for more information. TIMBERLINE L-SERIES Questions? Call 877-401-0730 Use OEM Parts... -
Page 41: Schematics
OTHER Schematics BLACK 233 TIMBERLINE L-SERIES Questions? Call 877-401-0730 Use OEM Parts... -
Page 42: Schematics Adjusted Down Pressure
OTHER Schematics Adjusted Down Pressure BLACK 233 TIMBERLINE L-SERIES Questions? Call 877-401-0730 Use OEM Parts... -
Page 43: Decals
OTHER Decals P# 260-7201 P# 260-1522 P# 260-2012 P# 260-028D P# 260-032D P# 260-026C P# 260-030C P# 260-024O 12VDC 12VDC 12VDC P# 260-028O P# 260-2020 TIMBERLINE L-SERIES Questions? Call 877-401-0730 Use OEM Parts... - Page 44 BLANK THIS PAGE WAS INTENTIONALLY LEFT BLANK...
- Page 45 BLANK THIS PAGE WAS INTENTIONALLY LEFT BLANK...
- Page 46 www.timberlineclean.com 1711 South Street Racine, WI 53404 (USA) 262-833-4040 | (877) 401-0730 V20.153 © 2020 RPS Corporation T-L-SERIES-OP-EN...
