Summary of Contents for Lantronix OCA-P181610

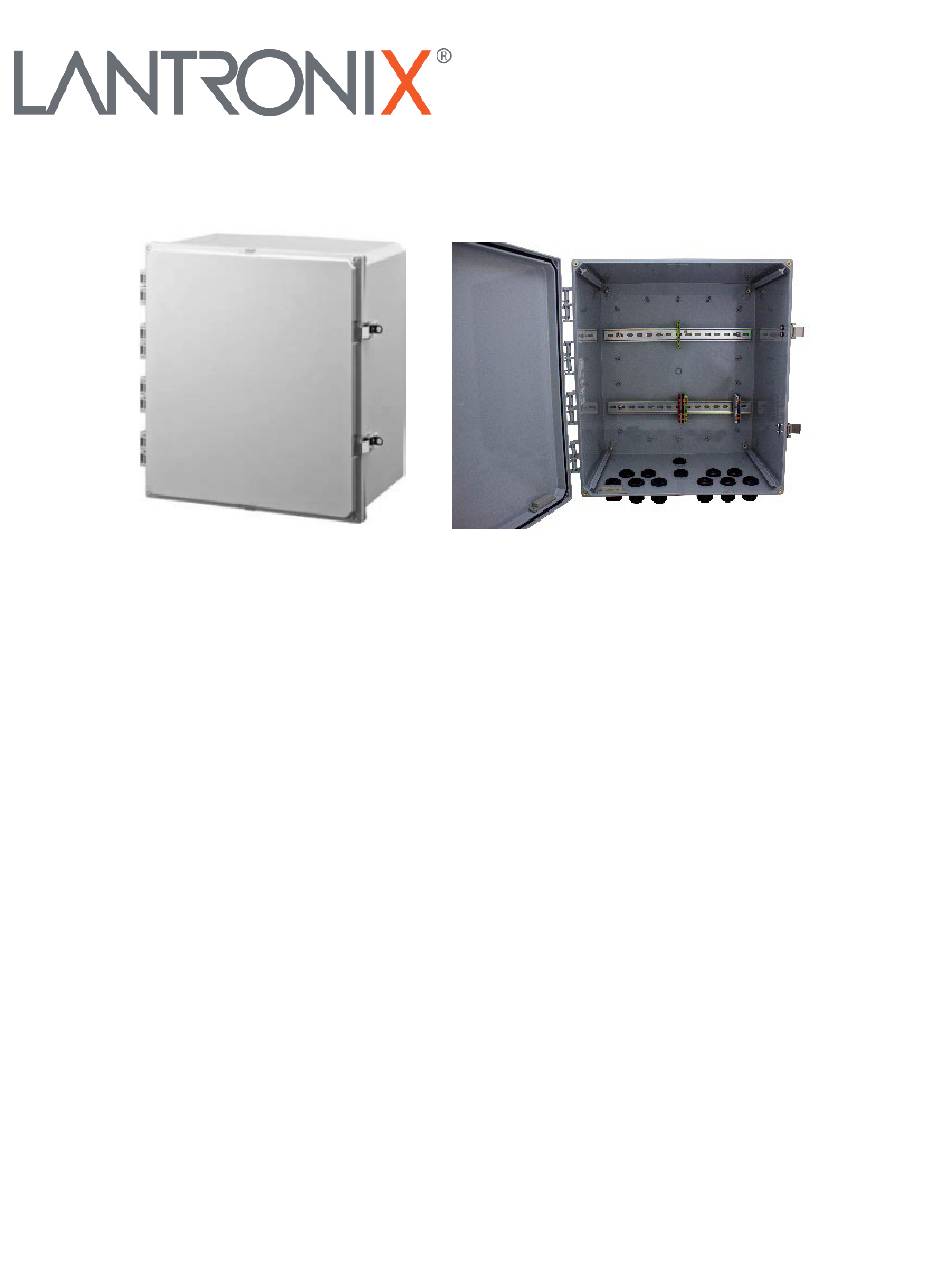

- Page 1 OCA-P181610 Outdoor Cabinet Assembly 18 x 16 x 10” Polycarbonate Enclosure for Outdoor Switches Install Guide Part Number 33812 Revision D January 2022...
- Page 2 OCA-P181610 Install Guide Intellectual Property © 2022 Lantronix, Inc. All rights reserved. No part of the contents of this publication may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Lantronix is a registered trademark of Lantronix, Inc. in the United States and other countries. All other trademarks and trade names are the property of their respective holders.
-
Page 3: Table Of Contents
Lantronix OCA-P181610 Install Guide Table of Contents Product Description ..............................4 Features ..................................4 Specifications ................................4 Ordering Information ...............................5 Related Manuals ..............................5 Regulatory Agency Compliance ..........................6 Base Cabinet Compliance ..........................6 Components ................................6 Dimensions ................................7 Product Views .................................8 Install Procedures ..............................9 Ground Terminal Blocks Together ........................9 Cabinet Mounting ............................. -
Page 4: Product Description
A liquid tight vent is included to prevent condensation inside the enclosure. Inside the cabinet, the OCA-P181610 includes two 15” DIN rails for easily mounting switches, media converters, power supplies and other communications equipment (sold separately). One entry port for routing power wires (a receptacle can be added) and 10 data cable entry ports with cord grips (each data cord grip accommodates two cables) are pre-installed in the cabinet. -
Page 5: Ordering Information
Lantronix OCA-P181610 Install Guide Consists of UL compliant components. Cabinet UL 50/cUL listed File E229365/E207562; NEMA 4X/IP66. Vent plug UL/cUL recognized File E330194; approved for use in IP65/67/68 Compliance applications. Wire glands UL/cUL recognized File E51579; approved for NEMA 4, 4X, 6 and 6P applications. -
Page 6: Regulatory Agency Compliance
Lantronix OCA-P181610 Install Guide Regulatory Agency Compliance Base Cabinet Compliance Standard(s) for Safety: Standard for Enclosures for Electrical Equipment, UL 50 UL 50E ENCLOSURES FOR ELECTRICAL EQUIPMENT CSA C22.2 NO. 94.1.07 ENCLOSURES FOR ELECTRICAL EQUIPMENT, NON-ENVIRONMENTAL CONSIDERATIONS CSA C22.2 NO. 94.2-07 ENCLOSURES FOR ELECTRICAL EQUIPMENT, ENVIRONMENTAL CONSIDERATIONS RoHS, WEEE, Environmental Programs: See https://www.transition.com/rohs-weee-environmental-programs/. -
Page 7: Dimensions
Lantronix OCA-P181610 Install Guide Dimensions 33812 Rev. D https://www.lantronix.com/ Page 7 of 17... -
Page 8: Product Views
Lantronix OCA-P181610 Install Guide Product Views 33812 Rev. D https://www.lantronix.com/ Page 8 of 17... -
Page 9: Install Procedures
Lantronix OCA-P181610 Install Guide Install Procedures Ground Terminal Blocks Together Ground terminal blocks are provided on both the upper and lower DIN rails. For added safety, it is recommended that these ground terminal blocks be tied together. *Note: If terminal blocks are moved from original shipping... -
Page 10: Cabinet Mounting
Lantronix OCA-P181610 Install Guide Cabinet Mounting Determine if cabinet will be mounted to a wall or other flat surface or to a pole. If mounting to a flat surface, attach the four mounting feet (provided) to the back of cabinet with screws provided. -
Page 11: If Using An Ac Power Source
Lantronix OCA-P181610 Install Guide If Using an AC Power Source If using an AC power source, you must either cut off the plug and terminate the wires as you would a DC power source or add a receptacle (not provided). If adding a receptacle, the vent and power gland can be swapped to better accommodate a receptacle. -
Page 12: Connecting The Magnetic Door Contact Switch
A magnetic door contact switch is included in the cabinet. Use of the door contact switch typically requires a 12- 24VDC power source. The Lantronix PS-DC-DUAL-5624T Dual Industrial Power Supply or the EDCA-DIO-01 Enclosure Door Contact Alarm can provide the required power for the door contact switch. Follow the instructions in your Ethernet Switch manual (if Ethernet Switch includes alarm input/outputs) or the optional Enclosure Door Contact Alarm manual for connecting alarm input/outputs to the door contact switch. -
Page 13: Installing The Oca-Pmk-26 Option
Lantronix OCA-P181610 Install Guide Installing the OCA-PMK-26 Option The OCA-PMK-26 is an optional Universal Pole Mount Kit for mounting the OCA-P181610 onto 2-6" diameter poles. The kit is ordered and packaged separately. OCA-PMK-26 Option Part List OCA-PMK-26 Option Dimensions 33812 Rev. D https://www.lantronix.com/... - Page 14 Lantronix OCA-P181610 Install Guide OCA-PMK-26 Option Assembly Note: Only one of two Struts shown: 33812 Rev. D https://www.lantronix.com/ Page 14 of 17...
- Page 15 Lantronix OCA-P181610 Install Guide OCA-PMK-26 Option Part List Item Description Strut Rails Fender Washer, 1/4” Pan Head Screws,1/4-20 X 1/2” Long Nylok Nut, 1/4-20 Band Clamp Bracket Large Band Clamp Bracket Small Hose Clamp 3-1/2” Hose Clamp 6-1/2” Hose Clamp 3”...
- Page 16 Lantronix OCA-P181610 Install Guide OCA-PMK-26 Option Installed Views 33812 Rev. D https://www.lantronix.com/ Page 16 of 17...
- Page 17 Toll Free: 800-526-8766 Phone: 949-453-3990 Fax: 949-453-3995 Technical Support +1.952.358.3601, 1.800.260.1312, or techsupport@transition.com Sales Offices For a current list of our domestic and international sales offices, go to the Lantronix web site at www.lantronix.com/about/contact. 33812 Rev. D https://www.lantronix.com/ Page 17 of 17...
