Summary of Contents for XS Instruments 7Vio Series

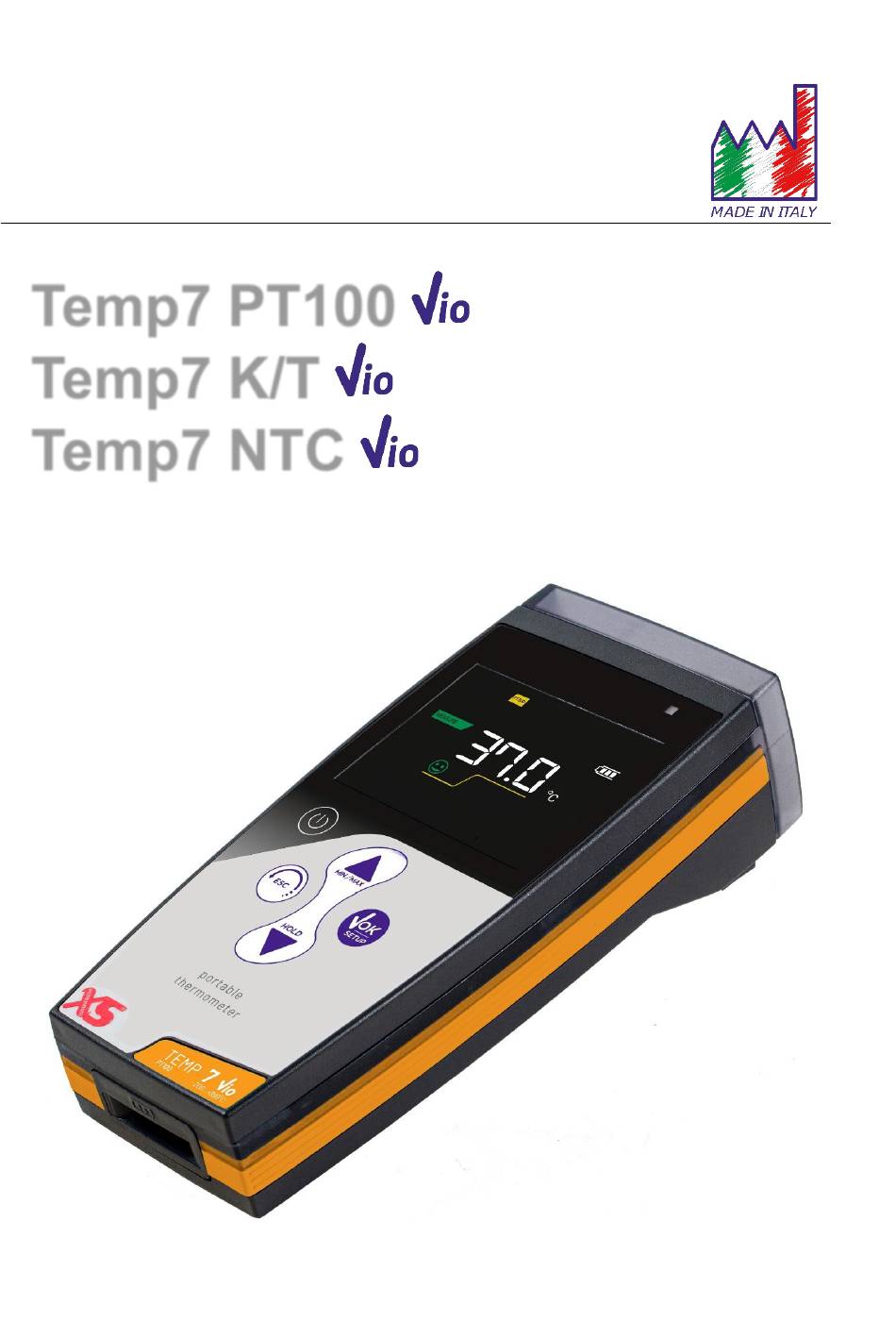

- Page 1 USER MANUAL Temp7 PT100 Temp7 K/T Temp7 NTC...
- Page 2 UM Termometri serie 7Vio ENG rev.0 14.04.2021...
-
Page 3: Table Of Contents
Summary Safety information ........................... 4 • Meaning of warning words and symbols .................... 4 • Reporting terms ..........................4 • Additional documents providing safety information ................. 5 • Use according to destination ....................... 5 • Basic requirement for safe use ......................5 •... - Page 4 • Warranty period and limitations .......................16 Disposal of electrical devices .........................16 XS Instruments Via della Meccanica n.25 41012 Carpi (MO) ITALY Tel.+39059.653274 Fax +39059653282 www.xsinstruments.com UM Termometri serie 7Vio ENG rev.0 14.04.2021...
-
Page 5: Safety Information
Safety information • Meaning of warning words and symbols This manual contains extremely important safety information, in order to avoid personal injury, damage to the instrument, malfunctions or incorrect results due to failure to comply with them. Read entirely and carefully this manual and be sure to familiarize with the tool before starting to work with it. -
Page 6: Additional Documents Providing Safety Information
• Additional documents providing safety information The following documents can provide the operator with additional information to work with the measuring system safely: • specific notes on product safety. • Use according to destination This instrument is designed exclusively for temperature measurements both in the laboratory and directly in the field. -
Page 7: Instrumental Features
Instrumental Features • Datasheet Instruments Temp7 PT100 Vio Temp7 K/T Vio Temp7 NTC Vio Probes PT100 Thermocouple K e T NTC 30KΩ Single connector Input Single connector 3 pin Single connector ANSI CINCH / RCA Thermocouple K: Range of -200…+1350 °C -200…+999 °C -50,0…+150,0 °C measurement... -
Page 8: Instrument Description
Instrument Description • Display Error symbol Type of temperature probe Battery charge Text String level Indication of Value instrumental mode Measurement unit Stability Indication Unstability indication Text string Indication of use of the directional keys • Keypad UP / MODE key to scroll menus and values in the Setup. -
Page 9: Led
• LED All instruments are equipped with a two-color LED (red and green) that provide the user with important information about the system status: Function Description Power on GREEN Fixed on Power off Fixed on Instrument in Standby GREEN Flashing every 20 s Stable Measurement GREEN Flashing every 3 s... -
Page 10: Instrument Transportation
• Instrument transportation The instrument is always supplied with the appropriate carrying case. Use the original case only, to transport the instrument. If you need to buy it again, contact your local distributor. The interior of the case is shaped to be able to house the instrument and the sensors still connected. •... -
Page 11: Display Symbols And Icons
Temp7 K/T Vio upper panel SINGLE ANSI CONNECTOR for thermocouple K or T Temp7 NTC upper panel SINGLE CONNECTOR CINCH for temperature probe NTC 30KΩ Read user manual before connecting the probes • Display symbols and icons Symbols Description Type of probe connected Error in measurement Battery charge indication Measurement stability indicator... -
Page 12: Device Operation
Device Operation On the left side of the display through a string of different colors is always indicated in which mode the tool is located. String Meaning The instrument is in measure mode. The instrument is in the recall phase of the recorded MAX or MIN value or the HOLD function is active. -
Page 13: Temp Settings Parameter
Temp settings parameter • In measure mode press to access the SETUP menu; • Press the button to access the TEMP SETTINGS P7.0 menu; • Move with the keys to select the program you want to access. In the table below is the structure of the Setup menu for the parameter, for each program are reported the options that the user can choose and the default value: Temp settings Menu Program... - Page 14 The table below shows the structure of the Setup menu for the parameter, for each programme the options that the user can choose and the default value are listed: Menù Settings Composition Program Description Options Factory Default settings P9.1 TEMPERATURE UNIT °C - °F °C P9.3...
-
Page 15: Temperature Measurement
Temperature measurement • First start-up The following parameters must be set when switching on for the first time: Choose the unit of meas. to use °C - °F P 9.1 Tutti i modelli Choose the type of probe to be used K / T P 7.1 Solo Temp7 K/T... -
Page 16: Other Features
Other Features • Automatic switch-off The instrument shuts down automatically after 20 minutes of inactivity. To disable automatic shutdown To disable automatic shutdown, go to parameter P9.9 in the Setup menu and select Off. • Offset adjustment All instruments are factory pre-calibrated and remain stable over time, but in the event of a reading error, the instrument can be recalibrated to eliminate this error. -
Page 17: Warranty
Warranty • Warranty period and limitations • The manufacturer of this device and its accessories offers the final consumer of the new device the five-year warranty from the date of purchase, in the event of state-of-the-art maintenance and use; • During the warranty period, the manufacturer will repair or replace defective components;...
