Costway JB10002 User Manual

Hairdressing chair
Hide thumbs

Advertisement

Quick Links

Download this manual
Please give us a chance to make it right and do better !
Contact our friendly customer service department for help first.
Replacements for missing or damaged parts will be shipped ASAP !
US office: Fontana
DE office: Hamburg
Contact Us!
Do NOT return this item.
UK office: Ipswich
FR office: Saint Vigor d'Ymonville
AU office: Truganina
PL office: Gdańsk
US:cs.us@costway.com
UK:cs.uk@costway.com
AU:cs.au@costway.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the JB10002 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Costway JB10002

Summary of Contents for Costway JB10002

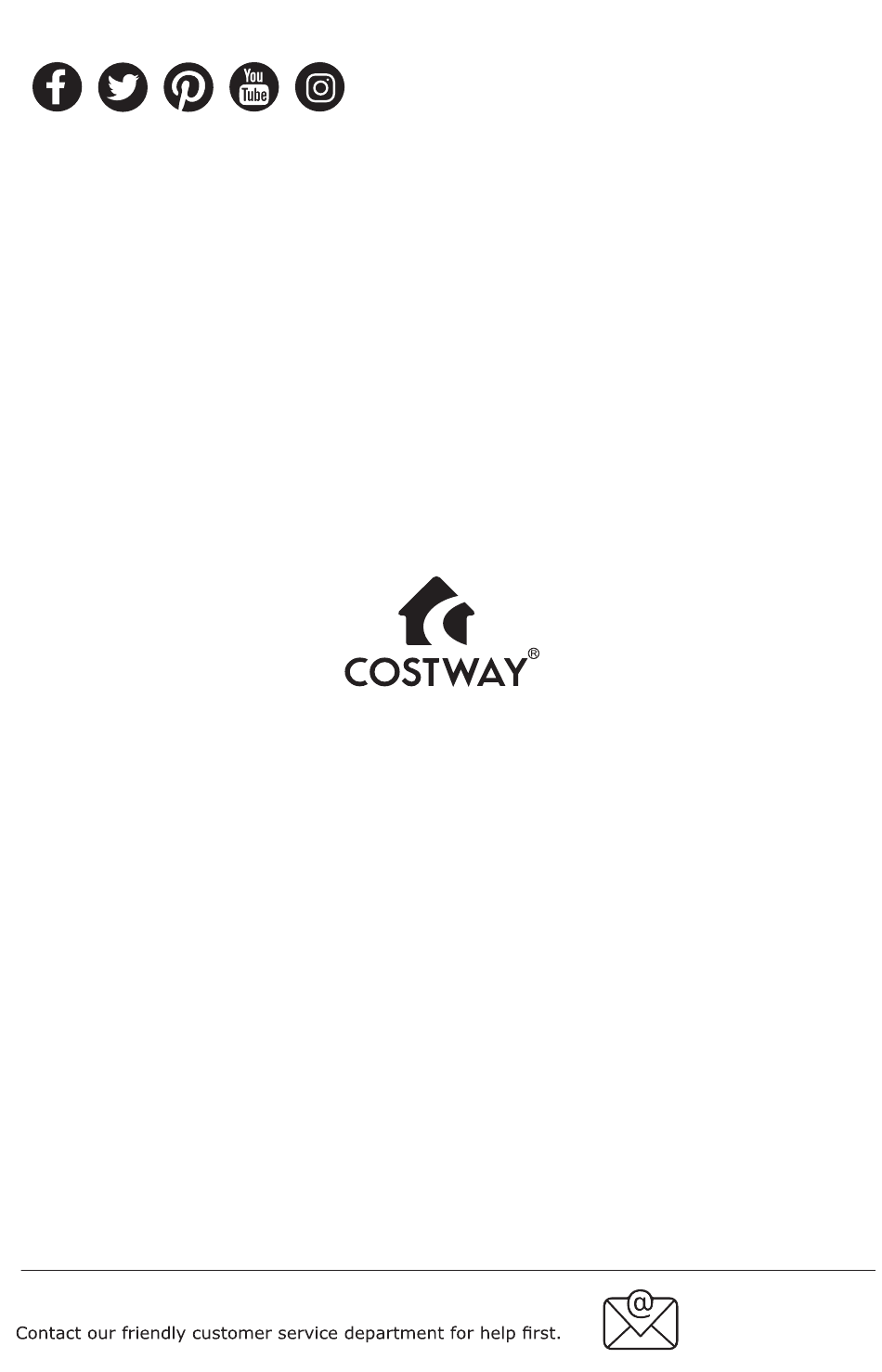

  • Page 1 Replacements for missing or damaged parts will be shipped ASAP ! US office: Fontana UK office: Ipswich AU office: Truganina DE office: Hamburg FR office: Saint Vigor d'Ymonville PL office: Gdańsk Contact Us! US:cs.us@costway.com Do NOT return this item. UK:cs.uk@costway.com AU:cs.au@costway.com...

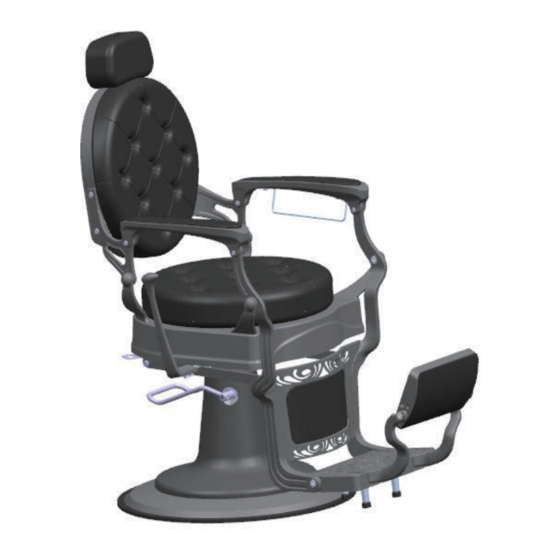

  • Page 2 USER’S MANUAL Hairdressing Chair JB10002 THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

  • Page 3: Before You Start

    Before You Start Please read all instructions carefully. Retain instructions for future reference. Separate and count all parts and hardware. Read through each step carefully and follow the proper order. We recommend that, where possible, all items are assembled near to the area in which they will be placed in use, to avoid moving the product unnecessarily once assembled.
  • Page 4 NOTICE: If your package has missing parts or you are having issues with assembly, please call us directly or message us, our customer service team will address any questions or concerns you may have. Keep this manual for future reference. SAFETY To reduce risk of injury when assembling &...

  • Page 5: Parts And Features

    PARTS & FEATURES Towel hook Hand rest Backrest Seat Reclining Lever Leg-rest Footrest Pump Foot bar Base Footrest Low Footrest High support support Hand Tools...

  • Page 6: Installation Instruction

    INSTALLATION INSTRUCTION First: Install foot bar to the pump Step 1. Place Base & Pump on floor. Use Allen Wrench to loosen the screws in the crossbar. Please follow the diagram as shown. Insert Foot Bar into the holes of the crossbar. (It may be necessary to slightly squeeze ends of Foot Bar towards each other, and some maneuvering for thebar ends to go into place.) Step 2.
  • Page 7 Second: Set the Seat onto the top of Pump Step 1. Locate the slot in the short column under the Seat. Align this slot with the black pin at the top of pump and press seat down to set Seat onto top of pump.
  • Page 8 Third: Install the hand rest to the seat Step 1. Remove the 4 big bolts and 2 small bolts which Pre-fixed in seat. Step 2. Install the hand rest to the seat with 4 big bolts and 2 small bolts which removed from seat.
  • Page 9 Fourth: Install Leg-rest to the foot-rest Step 1. Remove 2 big bolts which pre-fixed in the leg-rest then install the leg-rest to the foot-rest with 2 big bolts which removed from the leg-rest. Please follow the diagram as shown. Big Bolt Leg-rest Footrest...
  • Page 10 Fifth: Install Footrest low support and footrest high supports to foot-rest Step 1. Install 1 footrest low support and 2 footrest high supports to the bottom of foot-rest. Please follow the diagram as shown. Footrest low support Footrest high supports Footrest...
  • Page 11 Sixth: Install foot-rest to the chair Step 1. Removed 2 big bolts which pre-fixed in the foot-rest. Step 2. Install foot-rest to the chair with the big bolts which removed from the foot-rest. Please follow the diagram as shown. Big Bolt Foot-rest...
  • Page 12 Seventh: Install back-rest to the chair Step 1. Removed 4 bolts which pre-fixed in the Back-rest. Step 2. Install Back-rest to the chair with 4 bolts which removed from the Back-rest. Please follow the diagram as shown. Foot-rest Bolt...
  • Page 13 Eighth: Install Reclining Lever to chair Step 1. Loosen the bolts which pre-fixed in the bottom of Reclining Lever. Step 2. Set Reclining Lever on to the bent iron bar of the chair. Step 3. Tighten the bolt which pre-fixed in the bottom of Reclining Lever. Please follow the diagram as shown.
  • Page 14 Ninth: Install Towel hook to hand-rest Step 1. Removed 2 bolts which pre-fixed in the hand-rest. Step 2. Install the Towel hook to hand-rest with 2 bolts which removed from hand-rest. Please follow the diagram as shown. Towel hook Hand-rest Bolt...

  • Page 15: Operating The Chair

    OPERATING THE CHAIR First: 1. In the natural state, the upper part of the pump can rotate freely on the rotation axis of the pump; 2. Elevate the foot bar to lock the rotating. Foot bar Hold up...
  • Page 16 Second: Raising the Chair • Step down on the Foot Bar repeatedly to raise the chair to the desired height. • Do not over-extend the chair, creating the risk of falls or tipping the chair and its occupant over, resulting in injury.
  • Page 17 Third: Lowering the Chair • Step down and hold the Foot Bar to allow chair to lower.
  • Page 18 Fourth: Recline the Backrest • Push the lever backwards (35°~40°) and push the backrest to back. The backrest will tilt backwards; loosen the lever to get the tilt degree of backrest; Turn the lever again backwards (35°~40°), the backrest can Back to the original position.Don't push lever too hard.
  • Page 19 Fifth: You can adjust the height of the headrest by pressing the button on the backrest.
