Standard Thermostatic On/Off Remote Control
INSTALLATION AND OPERATING INSTRUCTIONS
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE
INSTRUCTION:
This wireless thermostatic on/off/ remote control system provides a safe, reliable, and user-
friendly remote control for millivolt valve gas appliances. The system can be thermostatically or
manually turned on and off with the transmitter. Always check the appliance home owner's
manual for additional information, or warnings regarding accessory installation before
connecting this remote control system.
Carefully inspect the contents for shipping damage. If any parts are missing or damaged,
immediately contact the dealer from whom you purchased the kit. Do not attempt to install any
part of the kit unless all parts are in good condition. Please keep these instructions for future
reference.
RCB04A Thermostat remote control Transmitter
Installation Instructions
Screws (for install Transmitterl)
Screws Cap (for install Transmitterl)
Wall Clip (for install Transmitter)
NOTE:Due to the sensitive temperature monitoring components in the transmitter,it is necessary
to allow the transmitter to stabilize to room temperature before accurate room temperature are
displayed, If the transmitter is activated from a severe cold condition allow 15 minutes for
accurate temperature reading to appear on the LCD.
Read this manual thoroughly prior to installing, programming or operating any remote
control.
This remote control system is designed for use with a millivolt or 24V gas valve system.
Do not use this remote control system on applications with voltages above 24 Volts
AC/DC and 1 amp current.
This remote control Transmitter requires two (2) "AAA" alkaline batteries to power the
transmitter
Easy Access Thermostatic Control
Low Battery Indication
Child Proof Lock-out
Select Between °C and °F display.
4 bits DIP Switches Select Security Codes

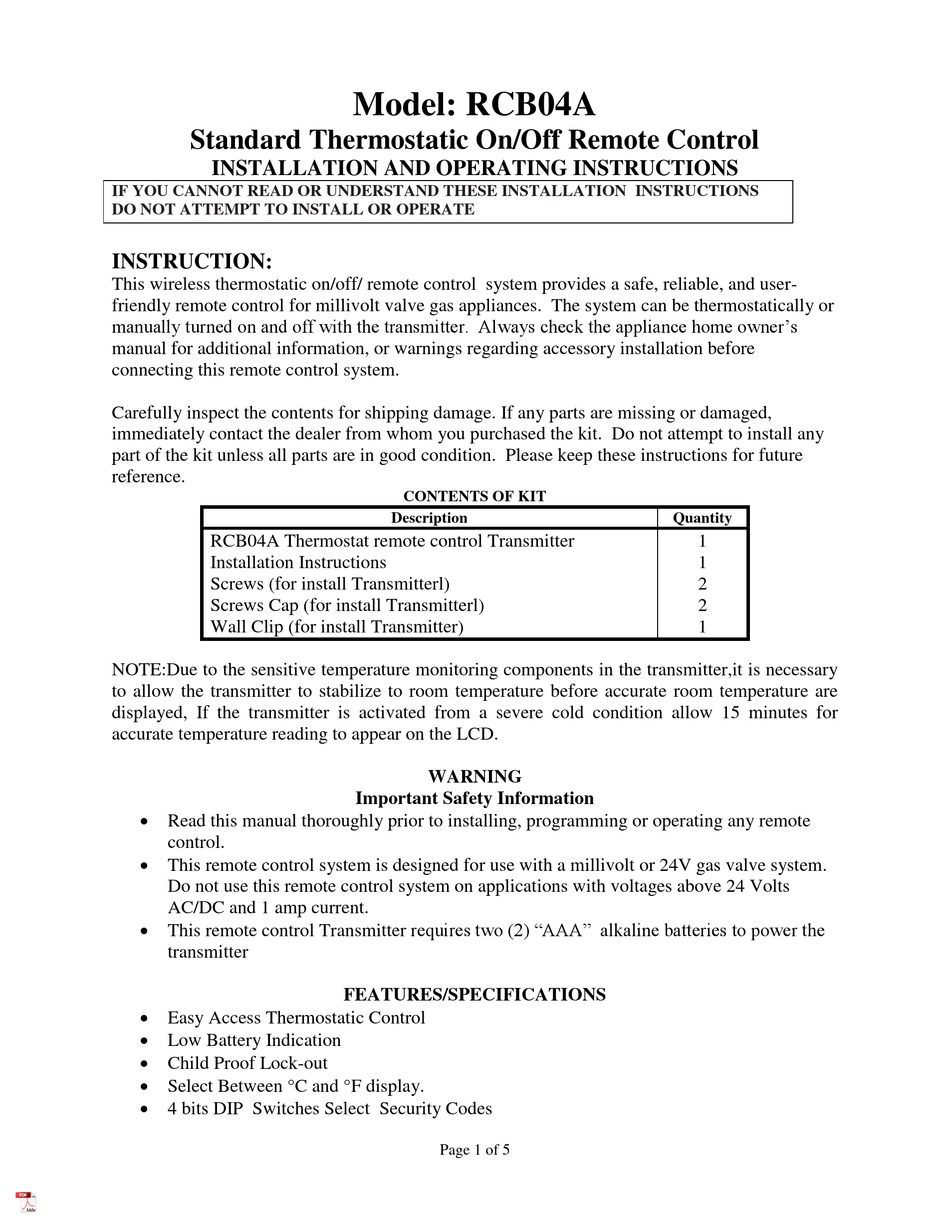

Model: RCB04A
CONTENTS OF KIT
Description
WARNING
Important Safety Information
FEATURES/SPECIFICATIONS
Page 1 of 5
Quantity
1
1
2
2
1
Advertisement
Table of Contents
Summary of Contents for Sunwell RCB04A
- Page 1 Please keep these instructions for future reference. CONTENTS OF KIT Description Quantity RCB04A Thermostat remote control Transmitter Installation Instructions Screws (for install Transmitterl) Screws Cap (for install Transmitterl) Wall Clip (for install Transmitter)
- Page 2 Transmitter Installing Batteries: The remote transmitter uses two (2) “AAA” batteries. To install batteries: 1. Press down the battery door and remove the battery door. 2. Install uses two (2) “AAA” batteries batteries as indicated on transmitter. 3. Close the battery door by snapping in place. 4.
- Page 3 Transmitter: General: The RCB04A Remote Control has two (2) operating modes: Manual and Thermostatic. The control system can be set to temperature ranges between 45°F and 99°F. The transmitter will operate the remote receiver from 1 foot to 30 feet. The distance is reduced when batteries are low or when the receiver is inside a metal enclosure.
- Page 4 2. The remote control will not work until child-proof mode is deactivated by pressing the ”ON”and”MODE” buttons at same time for 5 seconds again to exit child-proof mode. TRANSMITTER WALL CLIP The transmitter can be hung on a wall using the clip provided. If the clip is installed on a solid wood wall, drill 1/8”...
- Page 5 FCC Statement 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2.
