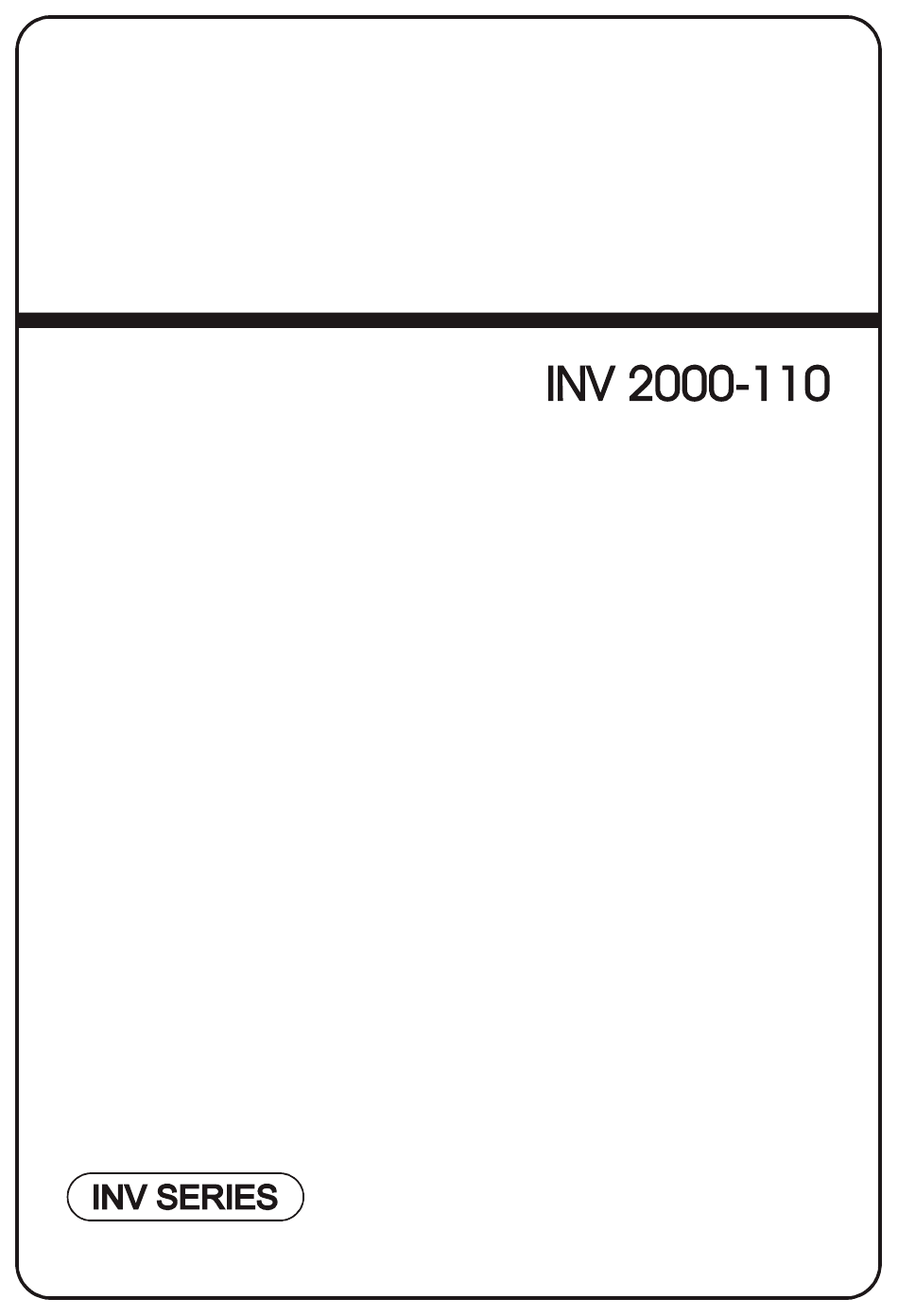

USER'S MANUAL
BUKU PETUNJUK PEMAKAIAN
INVERTER
ICA
Rev. 0
481-1A00060-110

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INV Series and is the answer not in the manual?

Questions and answers

Summary of Contents for ICA INV Series

  • Page 1 USER’S MANUAL BUKU PETUNJUK PEMAKAIAN INVERTER Rev. 0 481-1A00060-110...
  • Page 2 CONTENTS / DAFTAR ISI Page / Halaman I. INTRODUCTION / PENDAHULUAN II. TECHNICAL SPECIFICATION / SPESIFIKASI TEKNIK III. FRONT PANEL & REAR PANEL VIEW / TAMPAK DEPAN PANEL & BELAKANG PANEL IV. INDICATOR STATUS / STATUS INDIKATOR V. START UP INV / MENGHIDUPKAN INV VI.
  • Page 3 I. INTRODUCTION / PENDAHULUAN ICA Inverter type INV2000-110, is Inverter ICA tipe INV2000-110 adalah advanced true sinewave output inverter with inverter dengan output sinusoida yang high voltage PWM (Pulse Width menggunakan teknologi PWM (Pulse Width Modulation) technology. Modulation) tegangan tinggi.
  • Page 4 III. FRONT PANEL & REAR PANEL VIEW / TAMPAK DEPAN PANEL & BELAKANG PANEL Front panel INV2000-110 Rear panel INV2000-110 1. Monitor Panel / Panel Monitor 2. DC Terminal / Terminal DC 3. Outlet / Stopkontak Output 4. Ventilation / Lubang Angin 5.
  • Page 5 IV. INDICATORS STATUS / STATUS INDIKATOR 1. Battery Level : 6 leds, indicate DC input (Battery) / 6 buah led, menunjukkan keadaan input DC (Baterai). 2. Inverter On : Green led, indicate inverter on / Led hijau, menunjukkan inverter bekerja. 3.
  • Page 6 VI. OPERATION PROCEDURE / CARA MENGOPERASIKAN 1. Turn on procedure: 1. Mengidupkan INV: a. Turn on the main switch at front panel. a. Hidupkan main switch pada panel b. Turn on the power switch on your depan. devices. b. Hidupkan beban yang terpasang pada 2.
  • Page 7 VIII. TROUBLE SHOOTING / PETUNJUK KETIDAK NORMALAN RECOMMENDED SYMPTOM PROBABLE CAUSE SOLUTION Inverter indicator is not Turn off main switch, and turn on Inverter not running. light on. main switch again. Overload and fault 1. Remove some load from the INV. indicator are on, but alarm Overload.
  • Page 8 SERVICE CENTRE Jln. Pinangsia Raya I No: 22BB Jakarta - 11120 Phone : (021) 6906020 (Hunting) Untuk informasi servis kota-kota lain, kunjungi www.icaups.co.id cari menu support.
