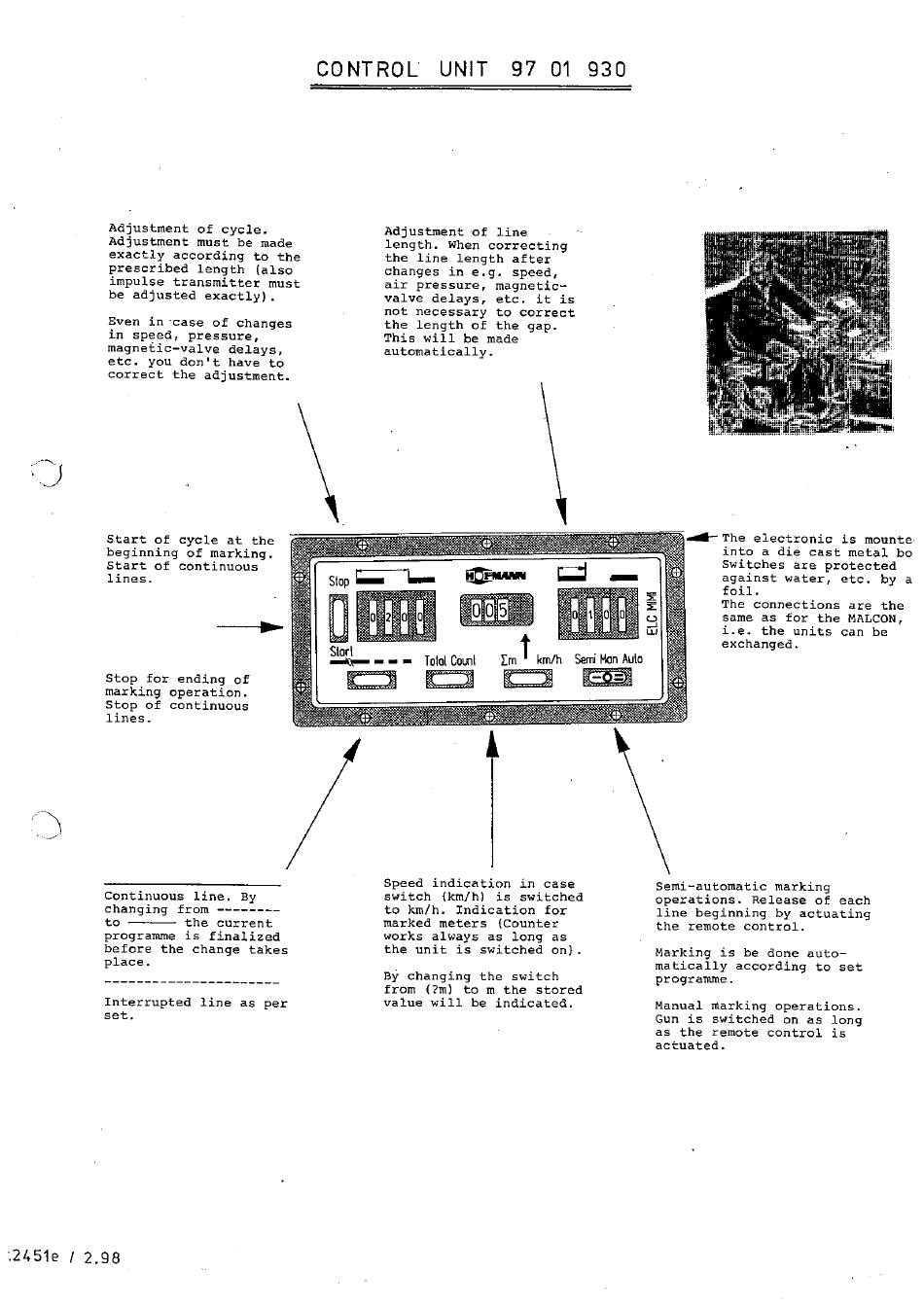

- Page 2 Instruction manual CONTROL UNIT 97 01 930 General information Supply voltage 12 V. Make sure of correct polarity (see back panel of unit). Only use 12 V magnetic valves. max. output 12 W. In humid conditions the unit should not be mounted all the time on the machine, e.g.
- Page 3 When using the MALCON 2 system no.: 97 02 370 with this impulse generator or when using the control unit 97 01 930 at the bottom-wheel impulse transmitter of the MALCON unit, the other rotating direction should be noted.
- Page 4 Instruction manual Operation 2.1. Switch on the unit by means of the pull switch "power" on the rear panel of the unit. For more information on the pull switch, see also chapter "Meter counter". 2.2. Tachometer / meter counter Switch located below the LCD set to: Σ...
- Page 5 Instruction manual Total meter count 2.3.1 Adjust switch for Σm - km/h to Σm. Then operate switch TOTAL COUNT left. The display shows the total marked line length in meter since the last cancellation. The metering runs until 9999 m and then begins again with 0.
- Page 6 Instruction manual Automatic marking according to programme Set the "Semi-Man-Auto" switch to "Auto". Set switch marked After operating the "Start" switch, the selected programme begins with the gap. Therefore, position the machine with the gun above the beginning of the gap you wish to begin with (end of last line), operate switch "Start"...
- Page 7 Instruction manual Semi-automatic re-marking Set switch marked Set "Semi-Man-Auto" switch to "Semi". Drive off, and start the beginning of every line as per the old lines by using the remote control. The lines will be finished automatically according to progrmmed line length.
- Page 8 Instruction manual 2. Possibility Set switch "Semi-Man-Auto" to "Man". Set switch "km/h - Σ m" to position Σ m. Position of switch is equal. Either: Set meter counter to zero position by simply switch off and on the unit. Keep the meter counter at the actual figure and calculate the new counter figure by simply adding the requried line length.
