ATTENTION!
HANDLE SV SENSOR
WITH CARE
(it contains precision
machinery)
Height of fence ≥145 cm
If the fence is higher than 145cm,
attach the SV sensor to the lower part of the fence
25m max
LiteFENCE
25m max
50m max
LiteFENCE
The position of the sensor (on the fence) influences the sensitivity:
installing the SV sensor on the upper part of the fence will increase sensitivity
Pass the fiber (sewing) into the fence
to avoid intrusion by panel removal
The fiber can be fastened with cable ties
DO NOT TIGHTEN CABLE TIES TOO MUCH!
Intensive use of tight cable ties
increases fiber attenuation
reducing the maximum distance
SV

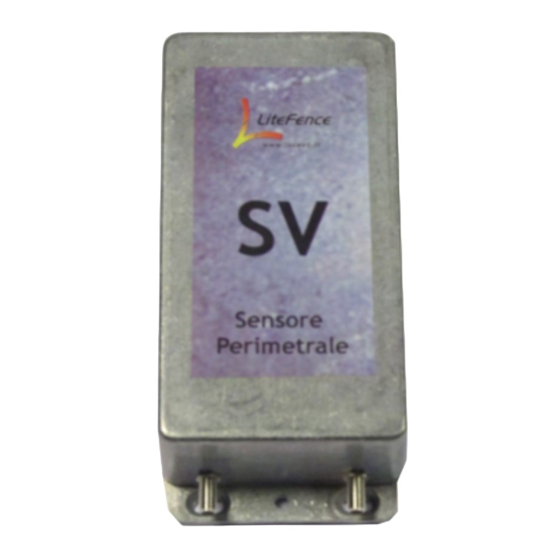

QUICK INSTRUCTION MANUAL
Power source: completely passive
Attenuation: 9dB (equal to about 90m of fiber)
Protection rate: IP68 in metal box
Dimensions: 50x83x178mm

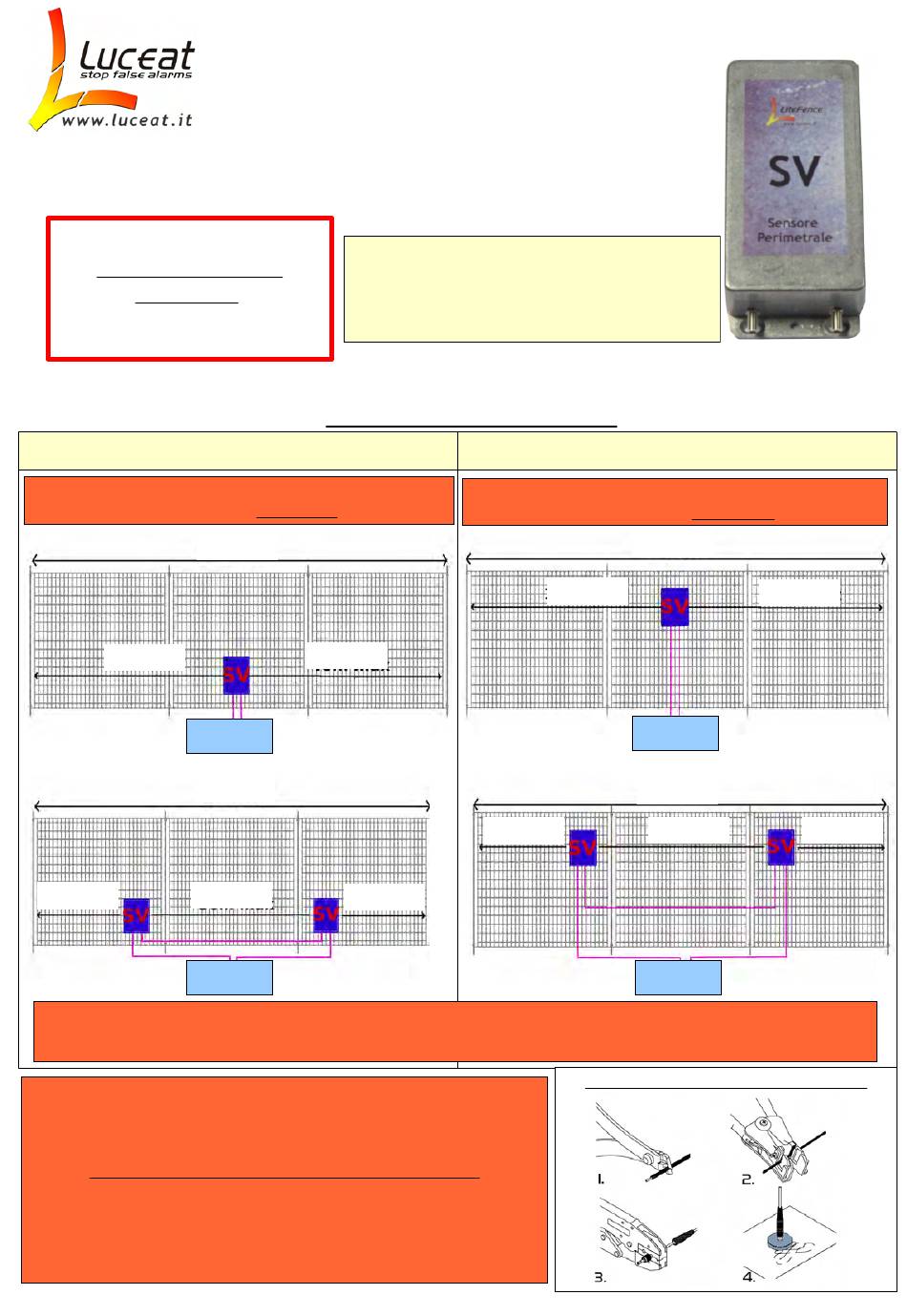

Installation EXAMPLES
50m
25m max
100m
25m max
SENSOR
Height of fence ≥110 cm
If the fence is higher than 110cm,
attach the SV sensor to the upper part of the fence
15m max
15m max
Plastic fiber connectorization
Cut
Crimp
30m
15m max
LiteFENCE
60m
15m max
30m max
LiteFENCE
Strip
Polish
Advertisement
Table of Contents
Summary of Contents for Luceat SV
- Page 1 25m max LiteFENCE LiteFENCE The position of the sensor (on the fence) influences the sensitivity: installing the SV sensor on the upper part of the fence will increase sensitivity Plastic fiber connectorization Pass the fiber (sewing) into the fence Strip...
- Page 2 INSTALLATION 1- Attach the SV sensor to the fence by using the brackets supplied and connect plastic fiber to the LiteFENCE analyser 1 SV Sensor Daisy-chain 2 SV Sensors 1 LiteFENCE analyser 1 LiteFENCE analyser Set LiteFENCE in the “power meter mode” so you'll...
- Page 3 2-Supply the power to LiteFENCE SV device D- NC Relay Insert cables and fibers through the cable glands before you conectorize them Connect the shield to the ground in case of armoured cables A-POWER SUPPLY INSERT THE CABLE AND FIBER THROUGH THE CABLE-GLANDS...
- Page 4 What NOT to do (these actions increase fiber attenuation) 1. do not walk on the fiber 2. do not make angles or sharp bendings (min. bending radius: 25mm) 3. do not pull hard on the fiber You can splice the cable mechanically Each coupler reduces the max.
