SPE BEF200-1 Operating Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

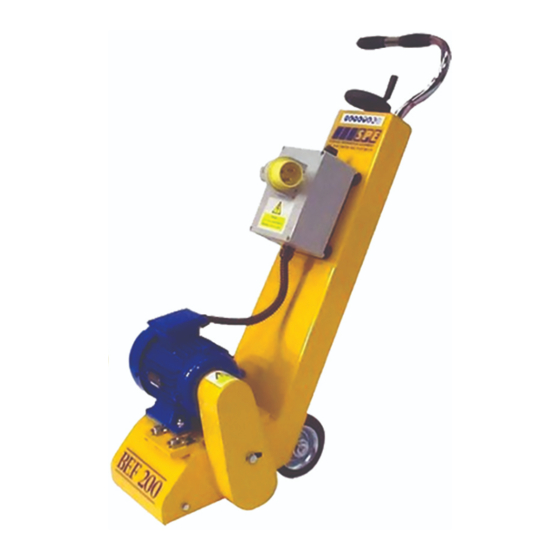

BEF200-1
& BEF60 Edger
Operating Manual
This manual is provided to persons purchasing an
SPE machine and may not be reproduced in part or full
without written permission of
SPE International Ltd.
This manual provides the basic information required
and is only to be used as a guideline.
The SPE machines are manufactured and covered by
SPE design registrations granted and pending.
SPE International Ltd reserves the right to alter the
equipment design and specification as required
without notice.
The SPE product range is subject to amendment and
improvement as a result of on going research
Honeyholes Lane, Dunholme, Lincoln LN2 3SU, England
Tel: +44 (0) 1673 860709 Fax: +44 (0) 1673 861119
Email:
sales@spe-int.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BEF200-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for SPE BEF200-1

  • Page 1 BEF200-1 & BEF60 Edger Operating Manual This manual is provided to persons purchasing an SPE machine and may not be reproduced in part or full without written permission of SPE International Ltd. This manual provides the basic information required and is only to be used as a guideline.
  • Page 3 WARNING Failure to follow these instructions may result in serious personal injury or death. SPE disclaims all responsibility for damage to persons or objects arising as a consequence of incorrect handling of the machine and failure to inspect the machine for damage or other faults that may influence the operation prior to starting work.
  • Page 4 BEF200-1 Operating Manual INDEX Page No Starting Work General Operation Electrical Instructions Maintenance Cutter Drum Removal Basic Maintenance Checklist Safety Accessories 10-12 Cutter Drum Set Up Spare Parts Breakdown BEF200 Body Components Drum Drive Components Wiring Diagram Electrical Panel Component List...

  • Page 5: Starting Work

    - To remove dust, connect an industrial dust collector or vacuum to the 50mm port (part no 9109) at the rear of the machine. We recommend the SPE VAC316 for almost 100% dust control. In the absence of a dust control unit it is acceptable to spray water onto the surface or to feed water down the vacuum port.

  • Page 6: Electrical Instructions

    All cables should be fully uncoiled and never left wrapped around cable reels or tied in loops. If the power is to be generated, the BEF200-1 requires a minimum 8kva generator. The motor is protected with a safety trip in the panel. Should the trip be activated, you must isolate the power supply, open the panel and reset the trip.

  • Page 7: Maintenance

    BEF200-1 Operating Manual MAINTENANCE Prior to any maintenance or adjustment isolate the power supply. AFTER USE: Clean the machine to remove all the build up of dust and surface residue. If using a hose pipe or pressure washer take care that water is not directed onto electrical components and switches.
  • Page 8 BEF200-1 Operating Manual CUTTER DRUM REMOVAL Isolate the power supply and ensure the cutter drum has come to a complete standstill. Adjust the height adjustment hand wheel so that the cutters are clear of the ground. Loosen the four 8mm set screws (Part No. 9237) and remove the side plate. When new this cover can stick and it may be necessary to lever off the plate with a screwdriver.
  • Page 9 BEF200-1 Operating Manual BASIC MAINTENANCE CHECKLIST DAILY: (or every 8hrs to 10hrs) Check the cutters Check the flail shafts Check all nuts and bolts for tightness Check the belt tension Check the plugs and cables WEEKLY: All the above with the following: -...
  • Page 10 Noise and vibration will occur at various levels dependent on the attachments and work being completed. SPE have assessments conducted under test conditions detailed in the operating manual. (See page 22). However it is recommended that additional tests are taken on site to provide the operator with accurate information on using the equipment within the guidelines laid down by the Health &...
  • Page 11 BEF200-1 Operating Manual ACCESSORIES Part No Description Application Enables outer perimeter edges next to vertical walls or upstands to be prepared Edger attachment for the BEF 200 and with the same type of cutter BEF 60 other makes of Planers and Scabblers.
  • Page 12 BEF200-1 Operating Manual For all concrete texturing, scabbling, planing and grooving applications. Also T.C.T. Cutter: 5 point hardened steel for the removal of road markings, roof 45500 cutter with tungsten carbide insert. chippings and brittle coatings. Use on heavy applications for longer cutter life and higher output.
  • Page 13 BEF200-1 Operating Manual Heavy duty flail shaft. 20010 Hardened cutter shaft. Spacing washer. Hardened spacing washer 24140...
  • Page 14 Su rfa c e Pr ep ara ti o n Eq u i p m e nt E- m d; nlel@ sp.kl lco m 228145120 IBeam Cutter THIS DRAWING IS THE CONFIDENTIAL COPYRIGHT PROPERTY OF SPE INTERNATIONAL LIMITED Drum c/w Beam Flails Drawn TITLE This drawing should not be used, D.G.A.
  • Page 17 BEF200-1 Operating Manual...

  • Page 21: Electrical Components

    BEF200-1 Operating Manual ELECTRICAL COMPONENTS DESCRIPTION SPE PART NO Panel box SP2518-11 Hinge kit SP190005 Back plate 9249 Rotary switch 9254-1 Contactor 9255 Contact breaker 9256 Plug retaining plate 9250 Start capacitor 156MF@240V Run capacitor 70MF@450V Conduit gland 9258 Conduit (MTR)
  • Page 22 BEF200-1 Operating Manual BEF60 GENERAL OPERATION The BEF60 is an optional accessory for the BEF200 Multiplane range. This attachment is designed for preparing edge work against walls and pillars etc. The cutter drum used with the BEF60 has a 60mm cutting width and can be fitted with a selection of cutters.
  • Page 23 BEF200-1 Operating Manual...

  • Page 25: Specification Sheet

    BEF200-1 Operating Manual SPECIFICATION SHEET Specifications Electric Type 1 Phase Part BEF200-1 (110v) Number Power Output Air Input Voltage 50hz Cycles Cutter Head 1753 Speed (rpm) Machine Dimensions (mm) Length Width Height Weight (kg) Working width of cutters (mm) Working distance...
  • Page 26 BEF200-1 Operating Manual RECORD OF NOISE AND VIBRATION ASSESSMENT Manufacturer: Type: Scarifier Model No. BEF200-1 Electric Operation: Concrete floor surface Inserted Tool: TCT cutters Running Conditions: 2870 rpm HAV Note: Operc HAND-ARM VIBRATION Frequency Weighted Energy Equivalent Accelerations (a Measurement...
  • Page 27 BEF200-1 Operating Manual RECORD OF NOISE AND VIBRATION ASSESSMENT Manufacturer: Type: Scarifier Model No. BEF200-1 Electric Operation: Concrete floor surface Inserted Tool: Beam cutters Running Conditions: 2870 rpm HAV Note: Operc HAND-ARM VIBRATION Frequency Weighted Energy Equivalent Accelerations (a Measurement...

  • Page 28: Warranty

    Conditions of Sale (copy attached). Warranty start date: As despatch date Model: BEF200-1 Serial no: Customer name: Customer Address: Manufacturer: SPE International Ltd Honeyholes Lane Dunholme Lincoln LN2 3SU England Telephone: +44 (0) 1673 860709 Fax:...

  • Page 29: Declaration Of Conformity

    BEF200-1 Operating Manual DECLARATION OF CONFORMITY SPE INTERNATIONAL LTD Honeyholes Lane Dunholme Lincoln LN2 3SU DECLARE that under our sole responsibility for the supply/manufacture of the product (Description/name) BEF200 Multiplane (Model/type) BEF200-1 to which this declaration relates is in conformity with the following standards and other normative documents following the provisions of Directive 2006/42/EC.
  • Page 30 BEF200-1 Operating Manual CONDITIONS OF SALE The quotation overleaf and any order placed following such quotation are subject to the following conditions of sale in which SPE International Limited is referred to as the “Company”. Validity of quotation No order received from a customer by the Company shall constitute a contract until accepted in writing by the Company.

This manual is also suitable for:

Bef60

Table of Contents
