Bluetech LD Series Operating Instructions

Leak Detector (LD) Series
Operating Instructions

Document Information

1.0
This manual complements the technical information in the product datasheet LD-B-22.04S, which can be
found on our website, www.bluetechcorp.com.

Basic Safety Instruction

2.0

Designated Use

2.1
Use of the device for any purpose other than that described may pose a threat to people's safety and/ or of
the measurement system and is therefore not permitted.
The manufacturer is not liable for damage caused by improper or non-designated use.

Installation

3.0

Mounting

3.1

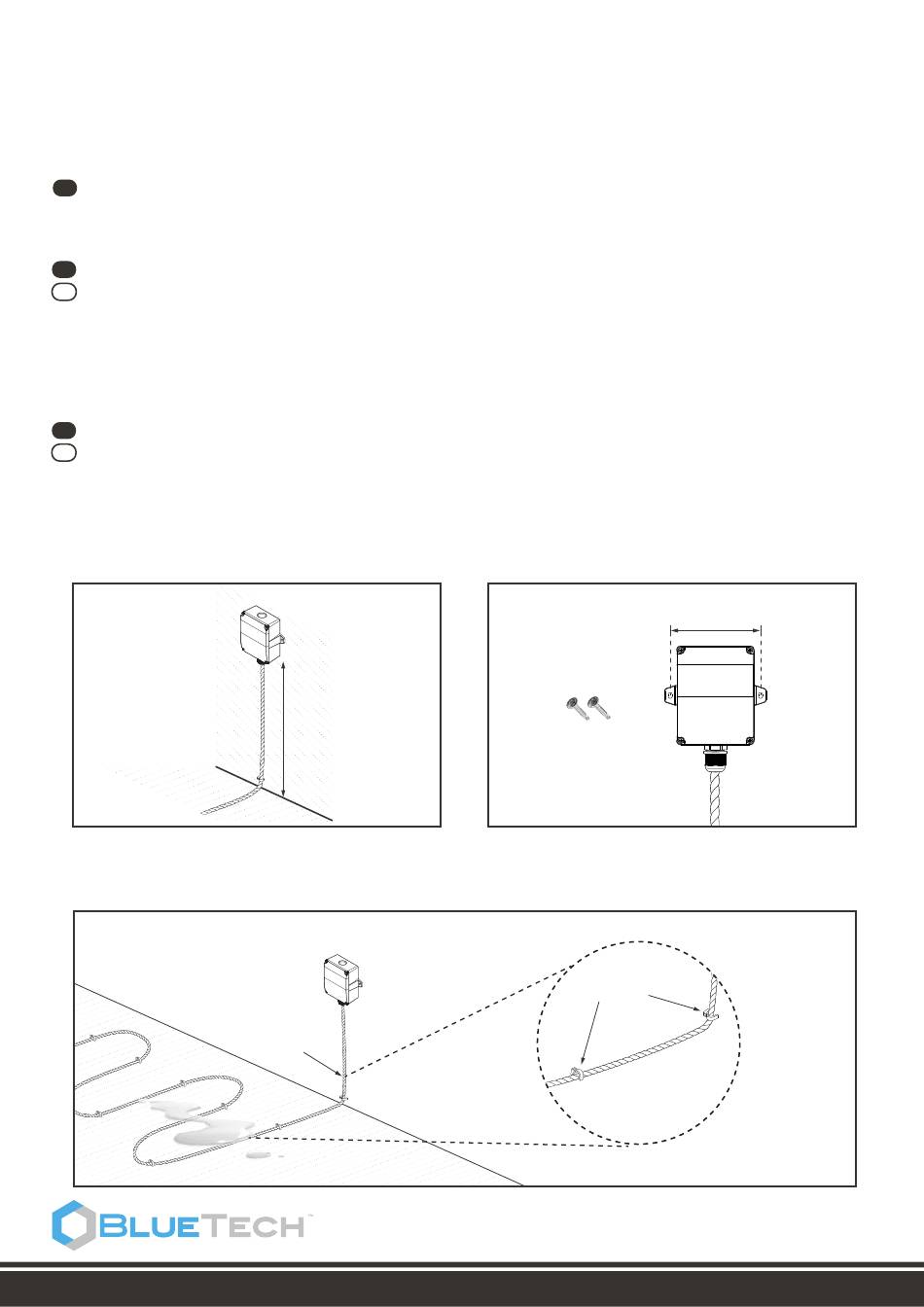

The Leak Detector device can be mounted to the
nearest wall of the area required for monitoring. We
recommend this device to be installed at least 2 feet
(0.6 m) from the floor.
Sensing
Floor Surface
The entire length of cable is the sensor. Spread the sensing cable as necessary to areas required for
monitoring and secure the sensing cable with cable clips.
Floor Area
Leak
Detector
2.0 ft
Cable
0.6 m
Leak
Detector
Sensing Cable
Drill two holes with center to center distance of
about 4.1 inches. Mount the device using one pair
of #8 (4 mm) screws. The device can be installed in
any position as required.
#8 Screws
(4 mm )
Cable Clips
4.1 in
105 mm
1/2
