WASHING MACHINE
WASHING MACHINE
OWNER'S MANUAL
OWNER'S MANUAL
The drawing of machine in the manual is only used for
instruction. It may vary from the machine you buy
n
Before using your washing machine,please
read this manual carefully and keep it for future
reference.
n
This manual shall also be available by sending
E-mail to client.
n
The drawings in this manual are for instruction
only,it may be vary from the model you buy
Advertisement
Related Manuals for TCL TWF80-M14303BHA04
Summary of Contents for TCL TWF80-M14303BHA04

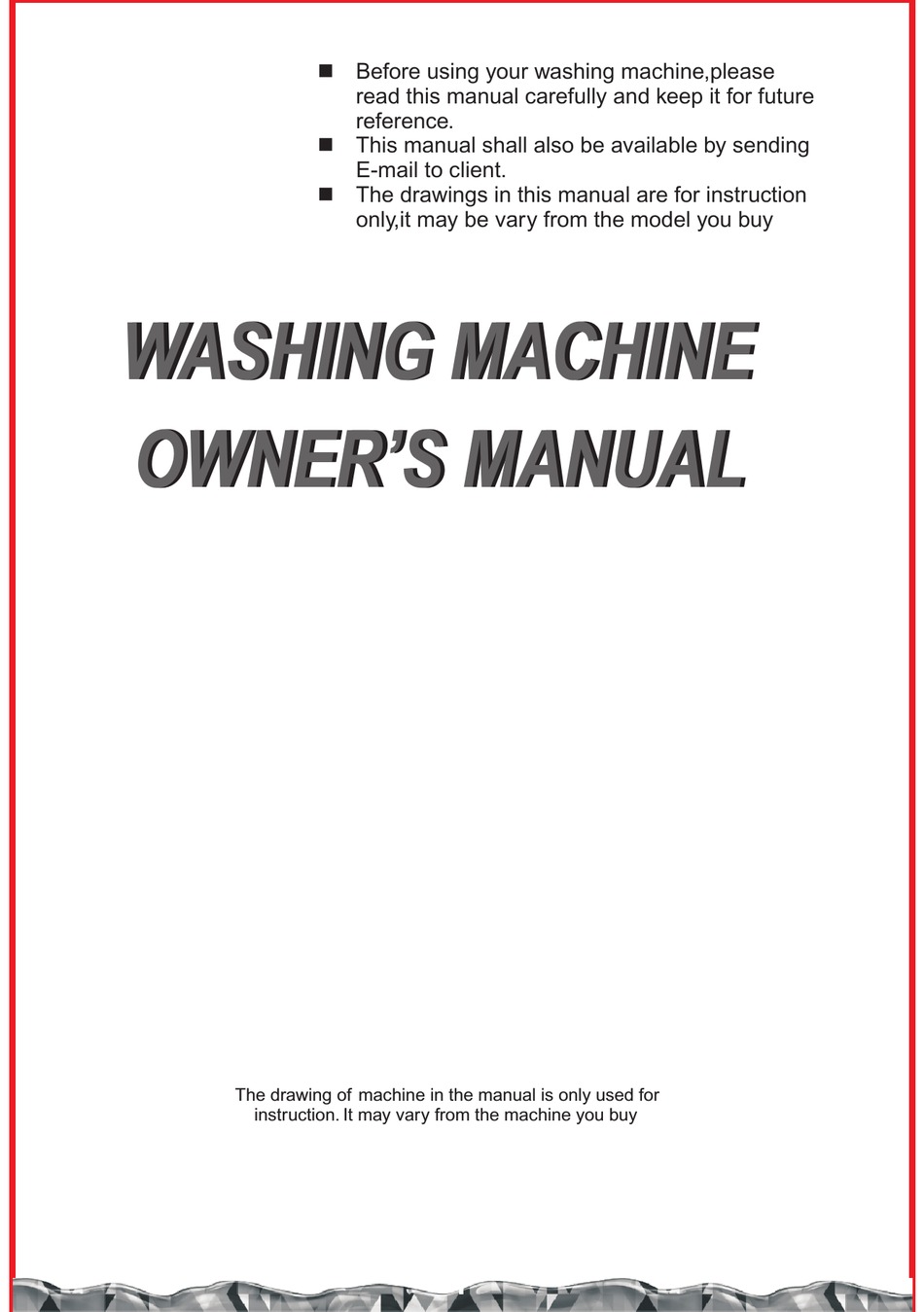

- Page 1 Before using your washing machine,please read this manual carefully and keep it for future reference. This manual shall also be available by sending E-mail to client. The drawings in this manual are for instruction only,it may be vary from the model you buy WASHING MACHINE WASHING MACHINE OWNER’S MANUAL...
- Page 8 Inlet Valve Inlet Valve (Hot) * Only double inlet machine have the hot valve Power Cord Drain Hose Clips Drain Hose Transit Bolt(4EA) Back Cover Power Plug...
- Page 9 Drain Hose Spanner Inlet Hose Hole Cover (4EA) Hot Inlet Hose Support Bracket (1.Used to adjust the bottom (Connect to cold (Used to plug transit (Connect to Hot of the machine, (Used to loop the end water supply) bolt holes) water supply) 2.Remove the transport bolt on of drain hose)
-
Page 10: Remove Transit Bolts
Remove transit bolts Before using this washing machine,transit bolts must be removed from the backside of this machine.Please take the following steps to remove the bolts: Keep the transit bolts properly for futher use. 1.Loosen the four transit 2.Take each bolt head and pull it through the 3.Fill the holes with the wide part of the hole.Repeat for each bolt. -
Page 13: Cleaning And Maintenance
Your washing machine is designed for home use; Your washing machine can only wash machine-washable clothes; Your washing machine can only be connected to cold water tap, please select household low-foam detergent and care agent suitable for machine wash sold on the market;... -
Page 14: Routine Maintenance
If there is detergent or softener residue in the case: As fig. a (c) shows, pull the case and press down the limit rod; pull the whole drawer out; As fig. b (d) shows, open the case (pick it up slowly) and take out syphon plate (lift it up);... - Page 16 Detergent dispensing There are two ways to dispense detergent according to different machine models: Use of detergent (Auto add) You can add detergent to box ① before washing. Detergent can be dispensed to the drum according to clothes weight. One time of manual add, many times of smart, precise and auto dispensing;...
-
Page 17: Washing Steps
Washing steps ③Place drain ②Insert power ④ Open the door, put in ① Connect hose plug clothes and shut it inlet hose down; put detergent in and turn detergent case and on the tap close the case; ⑤ Press down power key ⑥... - Page 18 Control panel introduction ③ Start/Hold Button Press this button to start or hold the machine; the lamp flashes during operation and stops during Hold state; Long press this button for three seconds to unlock the door to add clothes (note: for PTC lock series washing machine, please wait for Lock icon to disappear<...
-
Page 19: Control Panel Introduction
Control panel introduction Child-lock Press “Temp” and “Spin” simultaneously for three seconds during operation to turn on or off child-lock (when the water level is too high, please open the door when it decreases below safety limit); Other keys are invalid when this function is on; Child-lock is automatically off after the program is finished. - Page 21 Precautions for dry function Textile not suitable for drying Textile with No Dry label; Textile with wool and cashmere, in case of shrinkage; Fine textile (like silk), in case of crinkling; Textile with polymer rubber or similar materials; Textile processed by flammable solvent (like detergent and oil), in case of explosion; Dripping clothes will cost electricity and time and has bad drying effect.
- Page 22 Common textile drying guide Recommended Drying Program for Common Textile Recommended Recommended Recommended Textile type Tips washing program drying program drying Qty One down jacket + cold tumble dry, Down jacket Down Jacket 1pcs Standard to keep it fluffy and smooth Sweater The textile is fragile under Wool...
- Page 23 Display Introduction Take Wash&Dry machine control panel with auto dispensing and WIFI functions for example: ① Washing process ② Display area From left to right in order: Wash, Resin, Displays reservation time, left washing Dewater and Dry. Which icon flashes, time, resin times and alarm information, which function runs.
- Page 25 Is electricity cut off or power abnormal? power cord correctly plugged into the socket? power fuse or current breaker in good condition? power switch pressed down? The machine does not operate water tap turned on? Is reservation set? “Start/Hold” key pressed down? Is “Child-lock”...
- Page 26 Elimination Method Check if the tap is turned on, water pressure is too low or Inflow timeout water failure; if the failure still exists, please contact us for maintenance. Clean drain pump filter, check if the drain hose is Outflow timeout blocked;...
- Page 27 Fabric Care Lable Resistant material Can be ironed at 100°C max Do not iron Delicate fabric Item may be washed at 90°C Can be dry cleaned using any solvent Dry clean with perchloride,lighter fuel, Item may be washed at 60°C pure alcohol or R113 only Dry clean with aviation fuel, Item may be washed at 40°C...
- Page 29 Model：TWF80-M14303BHA04 Rated washing capacity：8.0k Rated drying capacity：5.0k Washing performance class:A Energy efficiency class:B EU Ecolab :N/a Energy consuption 1296 kwh per year , b The tests were performed according to COMMISSION DIRECTIVE 96/60/EC of 19 September 1996 implementing Council Directive 92/75/EEC with regard to energy labelling of household combined washer-driers.It is installed according to the user...
