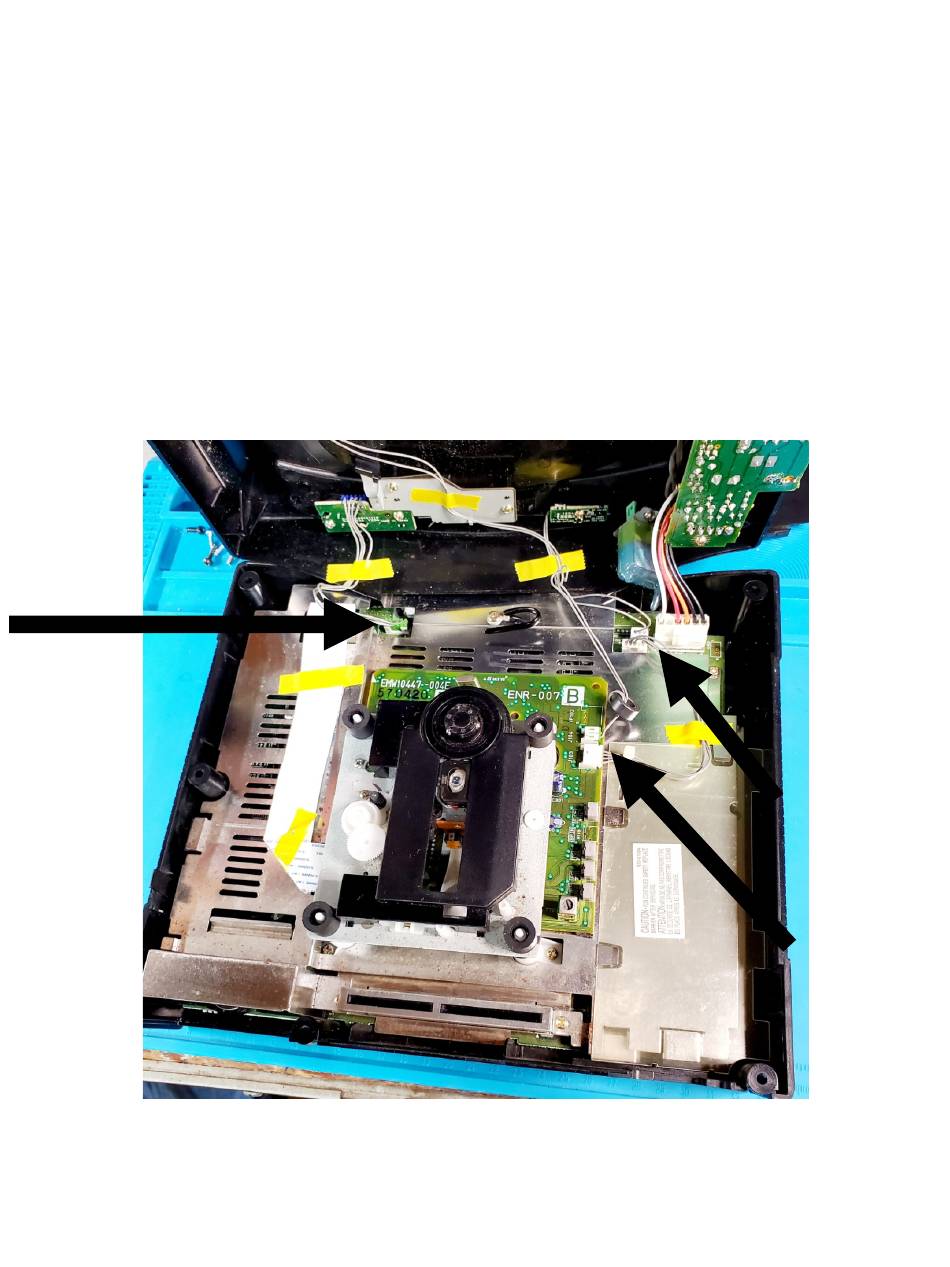

- Page 1 Stone Gamer Saturn MODE mount install type A. Remove 5 screws from bottom of Saturn. Remove top of case. If power supply is in top of case unplug connectors and set top of case to the side.
- Page 2 Next lift ROM and unplug ribbon cables. Set ROM to the side it will not be re-used.
- Page 3 Remove the 4 white ROM mounts. You may need to remove the flimsy metal shielding. Keep the 4 screws.
- Page 4 Cut or breakout standoffs from MODE mount.
- Page 5 Mount the 4 standoffs to the Saturn using the 4 screws you removed eariler. You may need to remove the flimsy metal shielding. Reinstall metal shielding if removed. The metal shielding should not be resting on the standoffs.
- Page 6 Using 4 of the included screws mount the SAG MODE mount to the standoffs.
- Page 7 Next using 4 of the included screws mount the MODE to the SAG mount.
- Page 8 Plug in ribbon and connectors to the mode. Plug in you HDD,Micro SD, or USB. Plug in connectors from top of the case. Install top of case and install 5 screws. ENJOY!!!
