Summary of Contents for IONODES PERCEPT DCK1

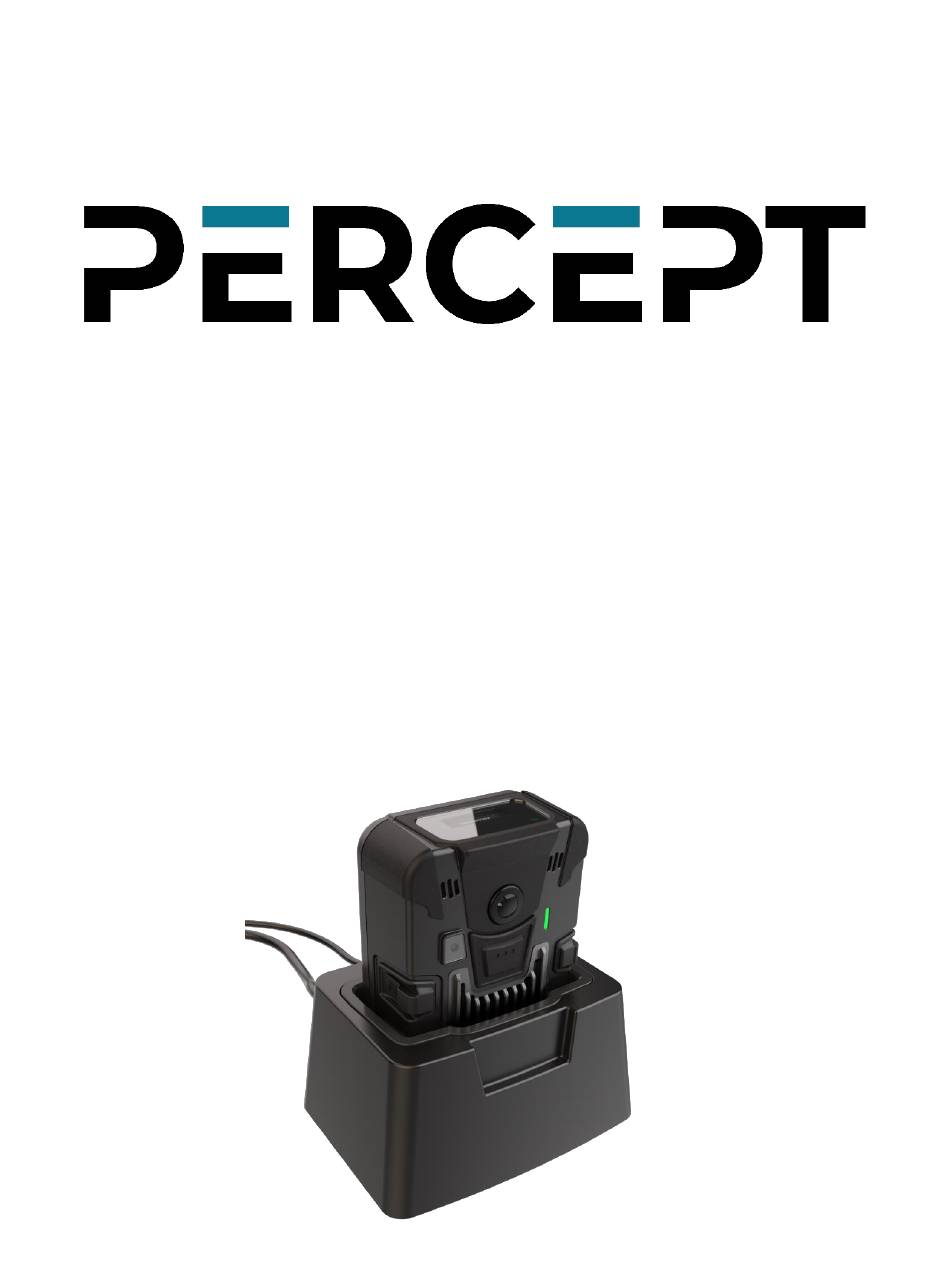

- Page 1 PERCEPT DCK1 Docking Station User Manual Document Version 1.0...
- Page 2 The information in this publication is provided “as is” without warranty of any kind. The entire risk arising out of the use of this information remains with recipient. In no event shall IONODES be liable for any direct, consequential, incidental, special, punitive, or other damages whatsoever (including without limitation,...
-
Page 3: Table Of Contents
Understanding LED status ......................8 Charging and offloading recorded data ..................9 Care and cleaning ........................12 Docking station states ........................13 Troubleshooting ..........................14 Common issues & resolutions ....................14 Contact IONODES Support ......................14 Annex – Statement Limited Warranty ....................15... -
Page 4: Packing List
When unpacking, inspect the shipment box and appliance to identify any possible damages due to shipping. Make sure all items have been delivered and that no items are missing. Contact your IONODES representative should you find any damages or defects. -
Page 5: Product Compliance
2 Product Compliance FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 6: Product Overview
3 Product Overview The single unit docking station (PERCEPT-DCK1) allows users to charge their PERCEPT Body Camera (supports QuickCharge 3.0 mode at up to 18W), as well as offload the internal recordings to a dedicated storage platform, via the onboard GbE RJ45 port. For connecting to a power source, the PERCEPT-DCK1 features a barrel type DC power input, supporting a 12 VDC input, located at the rear of the unit (a suitable 12VDC power adapter with US/EU/UK/AU plugs is included with the dock). -
Page 7: Getting Started
4 Getting started 4.1 Inserting the body camera into the dock To get started with your PERCEPT docking station, please insert the body camera directly into the docking station. The cradle is designed to support a single orientation of the body camera (with the lens of the body camera facing the user). -
Page 8: Understanding Led Status
4.2 Understanding LED status RJ45 port LEDs: 1 Gbps: Green LED (lit solid, blink on activity), Yellow LED (lit solid, blink on activity) • 10/100 Mbps : Green LED (lit solid, blink on activity), Yellow LED (OFF) • Status LED: Charging mode –... -
Page 9: Charging And Offloading Recorded Data
4.3 Charging and offloading recorded data When docked, the body camera can either be in Charge mode or in Online mode. When in Charge mode, the battery is being charged, the Ethernet connection is disabled and the Wi-Fi connection is active. When in Online mode, the battery is not being charged, the Ethernet connection is active, and the Wi-Fi connection is disabled. - Page 10 The terms used in the chart above are defined as follows: Battery Level Sufficient: The battery level is at least “Sufficient Offset” more than the “Low Battery • Level” Battery Level Low: The battery level is less than the “Low Battery Level” •...
- Page 11 Another relevant setting can be accessed from the body camera’s web interface, under Configuration tab > Network > Streaming > Media tab. Checking “Prevent Media Playback Over a Wireless Connection” prevents offloading recorded data over Wi- Fi. Offloading large amounts of video data can strain a wireless network’s bandwidth. Docking station users can check this setting to ensure recordings transfers only occur when the body camera is docked and connected to a wired network.
-
Page 12: Care And Cleaning
4.4 Care and cleaning To guarantee optimum performance, as well as a long service life of the product, please follow the recommendations below: Keep the product away from corrosive substances. • Make sure the product is completely dry before charging. •... -
Page 13: Docking Station States
5 Docking station states This table describes user feedback for the various states of the docking station (with and without the body camera docked). Body camera/ Feedback to the user on body camera Feedback to the user on docking station docking Front Status LED OLED text... -
Page 14: Troubleshooting
Online (Data transfer) mode and not in Charging mode. 6.2 Contact IONODES Support For more information, please contact our technical support team: • Call: 450-696-1060 or 1-844-696-1060 (North America Toll Free) • Send an email to: support@IONODES.com • Web request: https://support.IONODES.com/supportcenter/s/contactsupport... -
Page 15: Annex - Statement Limited Warranty
Annex – Statement Limited Warranty Please visit www.ionodes.com for the latest warranty information on all our products.
