Model 52111
2,000 LBS. (907 KG.)
ELECTRIC
TRAILER WINCH
INSTALLATION & OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 52111 and is the answer not in the manual?

Questions and answers

Summary of Contents for SEACHOICE 52111

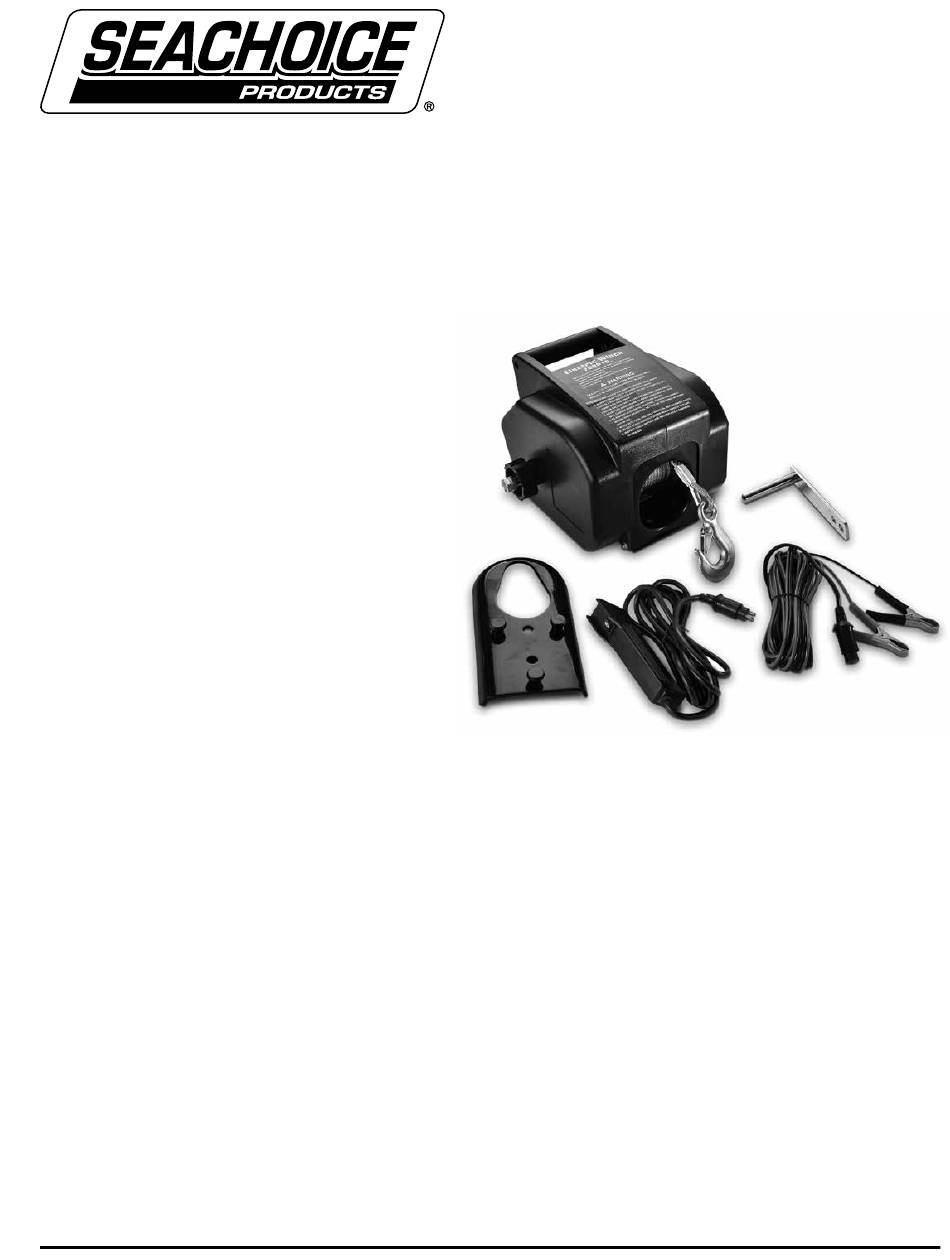

  • Page 1 Model 52111 2,000 LBS. (907 KG.) ELECTRIC TRAILER WINCH INSTALLATION & OPERATION MANUAL...
  • Page 2 MODEL 52111 • 2,000 LB. ELECTRIC TRAILER WINCH TECHNICAL SPECIFICATIONS: Capacity: 6,000 lbs. rolling; 5,000 lbs. marine; 2,000 lbs. pulling capacity Max. boat size: Max. boat weight: 5,000 lbs. Line speed: 6'/min. without load Cable length ø 3/16" X 30' (ø 4.8 mm X 9.2 m) Hook size: ¼"...
  • Page 3 INSTALLATION & OPERATION MANUAL PARTS LIST Item No. Description Qty. Item No. Description Qty. Hexagon thin nut (galvanized) M12 Winch Frame Internal tooth lock washer Screw M5X12 Bearing Spring washer Drum shaft gasket Flat washer Tension disc Motor 12V DC Drum shaft One-way blade Cable protector panel...
  • Page 4 MODEL 52111 • 2,000 LB. ELECTRIC TRAILER WINCH NOTICE The warnings, cautions, and instructions discussed in this owner’s manual cannot cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be supplied by the operator.
  • Page 5 INSTALLATION & OPERATION MANUAL GENERAL SAFETY Know your winch: Take time to fully read and understand this manual. • Never operate this winch if you are under 16 years of age. • Never operate this winch when under the influence of drugs, alcohol or medication. •...
  • Page 6 17. REPLACEMENT PARTS AND ACCESSORIES. When replacing, do not use different replacement parts from different winch models and specifications. This will void the warranty. Only use parts and accessories intended for use with this winch, which are available from Seachoice dealers. Visit https:// www.seachoice.com/store-locator to find a dealer near you.
  • Page 7 INSTALLATION & OPERATION MANUAL MOUNTING YOUR WINCH WARNING • Always connect red wire to the positive pole of battery, connect black wire to the negative pole. • Do not use your winch continuously or you will drain the battery. • Keep your engine running while using this winch, to continually recharge the engine. However, exercise extreme caution when working around a running vehicle.
  • Page 8 MODEL 52111 • 2,000 LB. ELECTRIC TRAILER WINCH PULLING CAPACITY Weight (Lbs.) This winch has a capacity of 2,000 lbs. Applying this measurement to practical 6,000 applications, you can use this winch to move the following. 5,000 Move a load up to 2,000 lbs. from a dead stop on level ground.
