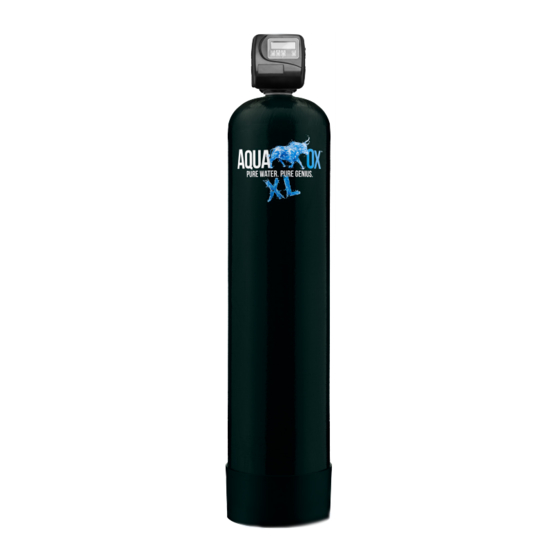

WATER FILTRATION SYSTEM
PRODUCT SPECIFICATION
PRODUCT SPECIFICATION
H
Height
Model No.
D
Diameter
Height
W
Weight
Diameter
Maximum Service Flow (gpm)
Weight
Inlet/Outlet Connection
Maximum Service Flow (gpm)
Connections Height From Floor
Inlet/Outlet Connection
Backwash Drain Connection
Connections Height From Floor
Backwash Cycle
Backwash Drain Connection
Gallons used During Backwash
Temperature
Fleck Head Digital
pH
Temperature
Fleck Head Digital
Pre-sediment Filter
pH
Pre-sediment Filter Connection
Backwash Cycle
AQUAOX CONNECTIONS:
The System comes with two options: 1 1/4" glue fitting and a
1 1/4" male threaded NPT fitting.
MODEL # OXL5600-8
64 in
# oxl5600-8
13 in
64 in
175 lbs
13 in
37
175 lbs
1 1/4" male threaded or 1 1/4" PVC Glue
37
56"
1 1/4" male threaded or 1 1/4" PVC Glue
3/4" male threaded
56"
20 minutes every 3 days
3/4" male threaded
Between 40 and 50
41° - 100°
Requires regular 110 Outlet
6.5 - 8.5
41° - 100°
Requires regular 110 Outlet
30 gpm Stainless Steel
6.5 - 8.5
Screen Backwashable
1 1/2" male threaded fittings
Advertisement
Table of Contents
Related Manuals for Aquaox OXL5600-8
Summary of Contents for Aquaox OXL5600-8
- Page 1 WATER FILTRATION SYSTEM MODEL # OXL5600-8 PRODUCT SPECIFICATION PRODUCT SPECIFICATION Height 64 in # oxl5600-8 Model No. Diameter 13 in Height 64 in Weight 175 lbs 13 in Diameter Maximum Service Flow (gpm) Weight 175 lbs Inlet/Outlet Connection 1 1/4” male threaded or 1 1/4” PVC Glue...
- Page 2 INSTALLATION AquaOx Protected Home Caution: Diagram shown is for reference purposes only. Read installation and operation manual prior to installing the unit. SYSTEM INSTALLATION INSTRUCTIONS *PLEASE READ ALL INSTRUCTIONS THOROUGHLY BEFORE BEGINNING Prior to Installation: 1. Find the point of entry of the main water line.
- Page 3 8. Make sure both cutoffs (A) and (B) are in the OFF position. 9. Install a garden hose to the hose bib and run the hose either outside or into utility sink/open drain. 10. Place the hose bib valve to the ON position. 11.
- Page 5 Limited Warranty We warrant this water conditioner, when installed according to factory recommendations, to be free from defects in materials and workmanship as follows: ------------------- Limited Warranty ------------------- This water conditioner unit is assembled from the finest industry components available. Each individual component used in the assembly of our equipment is covered by the original equipment manufacturer’s warranty.
- Page 6 If the AquaOx in fact is not solving the issue the original purchaser bought the item for, AquaOx is offering a 100% money back guarantee and will return 100% of the purchase price if the water problem the filter was purchsed for is not corrected.
