ENGLISH
INSTRUCTION MANUAL
Thermal Imager
for iOS Devices
• OVER 10,800
PIXELS TO
TROUBLESHOOT
HOT AND COLD
SPOTS
• CAPTURE, STORE,
AND SHARE IMAGES,
AND SHARE IMAGES,
VIDEO, AND TIME-LAPSE VIDEO
• DIFFERENTIAL AND
TOUCH SCREEN TEMPERATURE
• HIGH AND LOW TEMPERATURE
ALARMS
• SELECTABLE COLOR PALETTES
• COMPATIBLE WITH
IOS 11 OR HIGHER
-4°– 752°F
-20°– 400°C
2 m
www.calcert.com
15
10
20
5
25
0
30
TI TI
222
sales@calcert.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TI222 and is the answer not in the manual?

Questions and answers

Related Manuals for Klein Tools TI222

Summary of Contents for Klein Tools TI222

  • Page 1 TI TI ENGLISH INSTRUCTION MANUAL Thermal Imager for iOS Devices • OVER 10,800 PIXELS TO TROUBLESHOOT HOT AND COLD SPOTS • CAPTURE, STORE, AND SHARE IMAGES, AND SHARE IMAGES, VIDEO, AND TIME-LAPSE VIDEO • DIFFERENTIAL AND TOUCH SCREEN TEMPERATURE • HIGH AND LOW TEMPERATURE ALARMS •...

  • Page 2: General Specifications

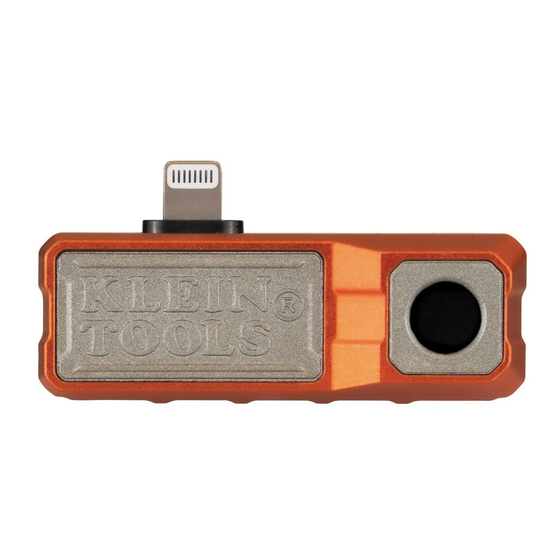

    TI222 is compatible with iOS devices 11 or higher with Lightning connectors. The camera output is displayed on the iOS device using the Klein Tools Thermal Imager app, available for free from the App Store.

  • Page 3: Feature Details

    WARNINGS To ensure safe operation and service, follow these instructions. • Read the instructions to ensure safe operation. • Always wear approved eye protection. • Do not use if the housing is damaged in any way. • DO NOT use if the Lightning connector/adapter is damaged in any way. •...

  • Page 4: Display Details

    ENGLISH DISPLAY DETAILS LIVE MODE SCREEN FIG. B Photo/Video Gallery 7:30 AM Center Point Temperature 124.2 Differential Temperature 80.7 51.5 Red Marker 132.2 (High Temperature) 132.2 White Marker (Center Point Temperature) 124.2 Gray Marker (User-Selectable Temperature) Calibrating Icon 90.4 Time-Lapse Video Capture Button Photo Capture Button 80.7 Video Capture Button...

  • Page 5: Video Mode Screen

    7:30 AM 7:30 AM 7:30 AM Settings Photos Photos January 23, 2020 80.7 Camera Settings 132.2 132.2 Language 124.2 January 22, 2020 80.7 DISPLAY DETAILS VIDEO MODE SCREEN FIG. D 7:30 AM 7:30 AM 80.7 124.2 124.2 80.7 80.7 132.2 51.5 51.5 132.2...

  • Page 6: Settings Screen

    ENGLISH DISPLAY DETAILS SETTINGS SCREEN FIG. F Previous Screen Icon Camera Settings Button Frequently Asked Questions Button Language Button CAMERA SETTINGS SCREENS 1.800.544.2843 www.calcert.com sales@calcert.com...

  • Page 7: Downloading The App

    1/16" (1.5 mm) may require removal of case for secure connection. 3. Connecting your device will automatically open the app, and a popup will ask for confirmation: Klein TI222 would like to communicate with the Klein Tools Thermal Imager for iOS Devices." Tap "Allow" (FIG. H).

  • Page 8: Photo Capture

    Photo Capture button to take a photo. NOTE: When the first photo is captured, the app will ask permission, "Klein TI222 would like to access your photos". Tap "Allow Access to All Photos" (FIG. I). TIME-LAPSE VIDEO CAPTURE (FIG. C) 1.
  • Page 9 Video Capture button Before the first video is captured, the app will request permission, "Klein TI222 Would like to Access the Microphone". Tap "OK" (FIG. J). 2. Tap the Photo Capture Button while recording is active to capture still images of the subject.
  • Page 10 Emissivity on the TI222 may be adjusted from 0.01 to 0.99 to enable accurate measurement of the temperature of most types of materials. Generally speaking, shiny bright surfaces such as chrome, white boards, etc.
  • Page 11 OPERATING INSTRUCTIONS This chart should be used for guidance only. Material Emissivity Asphalt 0.93 Red brick 0.93 Gray brick 0.75 Porcelain ceramic 0.92 Fired clay 0.91 Rough concrete 0.94 Cotton cloth 0.77 Smooth glass 0.92 - 0.94 Granite 0.45 Gravel 0.28 Smooth ice 0.97...

  • Page 12: Fcc & Ic Compliance

    ENGLISH CLEANING Be sure unit is not connected to a device and wipe with a clean, dry lint-free cloth. Do not use abrasive cleaners or solvents. STORAGE Do not expose to high temperatures or humidity. After a period of storage in extreme conditions exceeding the limits mentioned in the General Specifications section, allow unit to return to normal operating conditions before using.
