1. Outline of installation procedures
RU-515
FS-537
ZU-609
PI-507
PK-523
When installing the Finisher FS-537SD/FS-537 and
associated options as a system, follow the order
shown on the upper.
Note:
• For the detailed installation procedures for each
option, follow the instructions given in the corre-
sponding installation manual and perform the
procedures correctly.
<Only when installing this option to the Finisher
FS-537SD/FS-537>
• When mounting the Job Separator JS-602,
mount it before mounting the Finisher FS-
537SD/FS-537 to the main body.
<Only when installing this option to the Finisher
FS-535/FS-526>
• If the finisher has the punch kit installed, pre-
pare a short screwdriver that is used in install-
ing the job separator.
• When mounting the Job Separator JS-602,
mount it before mounting the Finisher FS-535/
FS-526 to the main body.
• When mounting the Punch Kit PK-521/PK-516
at the same time, mount the Job Separator JS-
602 first.
JS-602
INSTALLATION MANUAL
FS-537SD
JS-602
Job Separator
Applied Machines: FS-537SD/FS-537/FS-535/FS-526

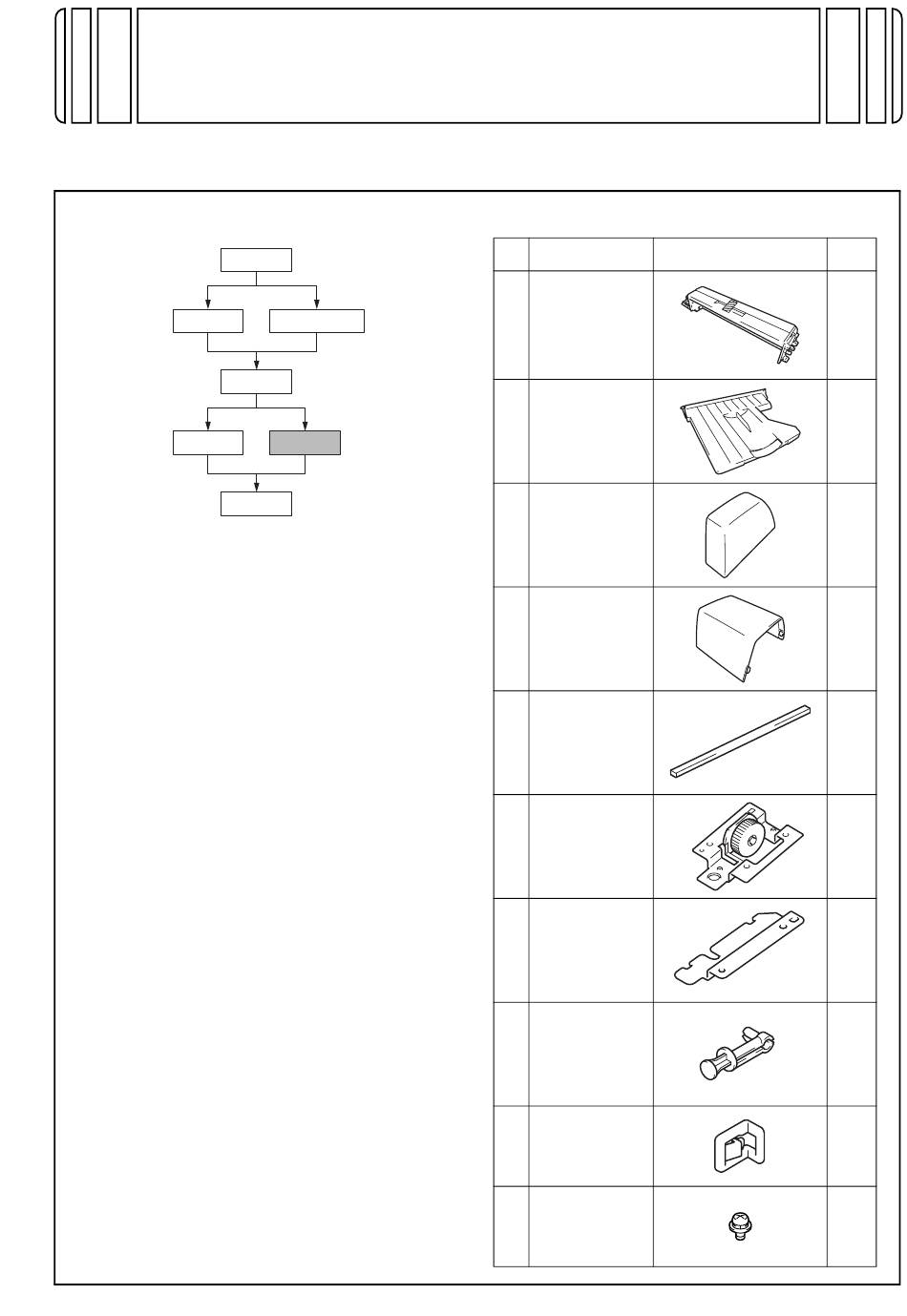

2. Accessory parts
No.
Name
1. Job separator
2. Exit tray
3. Front cover
4. Rear cover
5. Sponge
*1
6. Mounting
bracket A
7. Mounting
bracket B
8. Arm
*2
9. Spacer
10. Screw A
(3 × 6 mm)
E-1
Shape
Q'ty
1
1
1
1
2
1
1
1
1
6
A10C-9581-00
