MTM 502 Series Installation Manual

502 SERIES INSTALLATION GUIDE
502 SERIES
Installation Guide

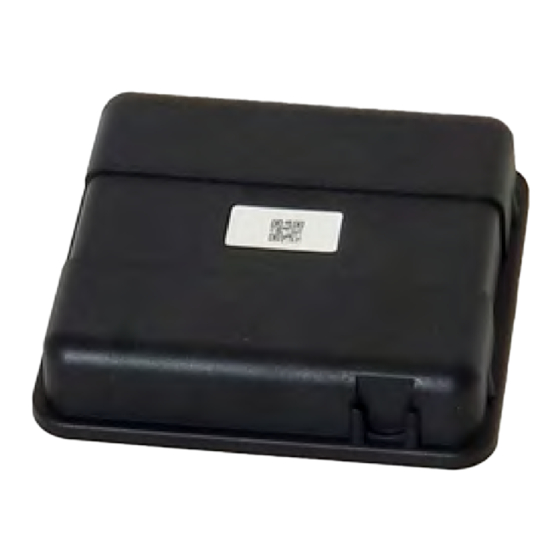

DEVICE OVERVIEW
MTM502 has labels on the top and bottom of the device as shown in the picture
to the right.
TOP LABEL: QR Code which provides the device serial number once scanned
BOTTOM LABEL: Device name and serial number barcode
Device needs to be installed with the top tabel facing up in order to ensure
the best line-of-sight to the GPS satellites.
The MTM502 will be delivered in "Slee p" mode which is the lowest power state until the activation magnet
is removed.
NOTE: The device will switch back to Sleep mode from any other mode if magnet is placed back into
the slot on the side of the device.
The device will be shipped
to you with a small,
round magnet within a
slot on the side.
REMOVE
MAGNET
Remove magnet from slot
on side of device
Save several magnets for
future use to either reset
devices or place devices
back into sleep Mode
SVR TRACKING | www.svrtracking.com | Copyright© 2021 SVR Tracking. All Rights Reserved
VERIFY
ACTIVATION
Log in to application
Check "Installed" column
for install date & "Actions"
column for location icons
If device is not activated, it
will show UNINSTALLED in
the "Actions" column
Once external magnet
is removed, device will
then activate and
initiate reporting
INSTALL
DEVICE
Place device in vehicle
or on asset
Ensure top of device is facing
upwards and has a clear
line-of-sight to GPS satellites
A stable location is important
to avoid movement so use
zip ties to secure in-vehi-
cle or the P249 bracket for
assets
CHECK
SIGNAL
STRENGTH
Determine signal strength
(# of GPS Satellites or RSSI of
cellular signal) after placing in
vehicle or on asset
Device may have to be moved
to improve signal strength
SVR-IG-502-0321
