Summary of Contents for Surpass SP-WF640

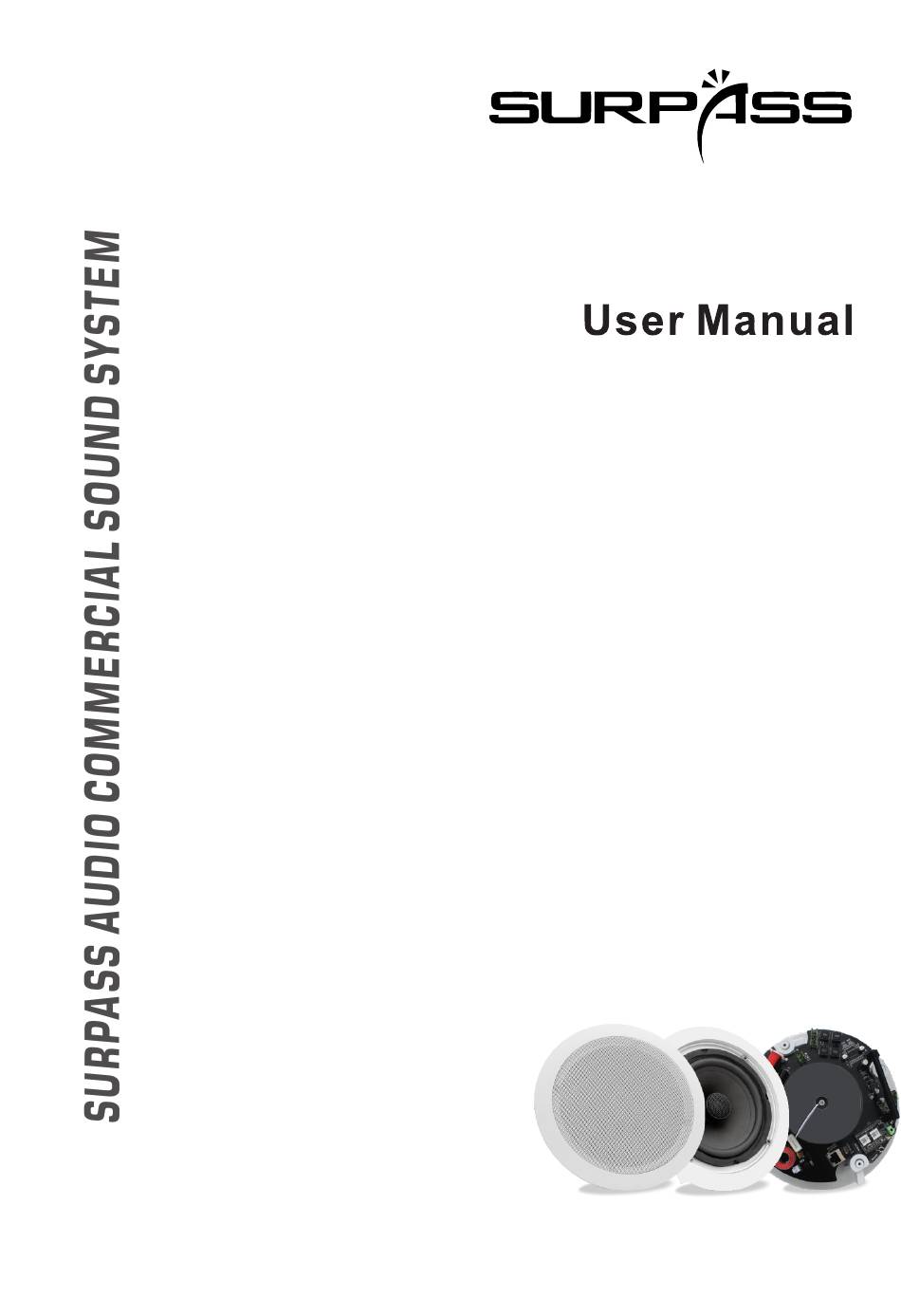

- Page 1 2CH WIFI CEILING SPEAKER...
-
Page 2: Safety Precautions

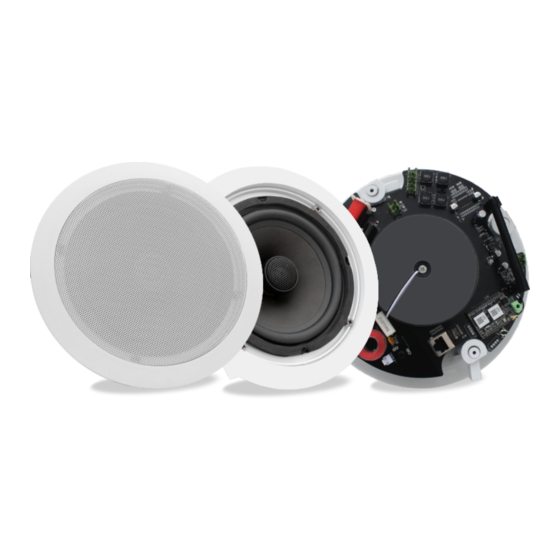

ACTIVE SPEAKER SERIES 2CH WIFI CEILING SPEAKER Thank you for purchasing the WiFi Ceiling Speaker SP-WF640. Please carefully follow the instructions in this manual to ensure long,trouble-free use of the equipment. Packaging Contents ................ 1 Active master speaker ................. 1 Passive slave speaker .................... - Page 3 2CH WIFI CEILING SPEAKER Description & Feature utilize s a master/slave speaker configuration,in the master The 2CH WiFi Ceiling Speaker SP-WF640 speaker there is a 2-channel Class D stereo power amplifier with speaker outlets to power the Slave speaker. This device is compatible for Android,iOS with APP control WiFi audio for independent control of music content by multiple users via APP Streaming music directly from smartphone.
- Page 4 ACTIVE SPEAKER SERIES 2CH WIFI CEILING SPEAKER Specification Model SP-WF640 RH62WF Rated Power 2*30W@8Ω Amplifier Channel 2 Channel Amplifier Type Digital Class D Frequency Response 80Hz-20KHz(±3dB) <0.05% at 1kHz,1/3 rated power >70 dB Speaker Driver Woofer 6"*1 + tweeter 1"*1...
- Page 5 ACTIVE SPEAKER SERIES 2CH WIFI CEILING SPEAKER WIFI & APP OPERATIONS This Wi-Fi Speaker uses the public MUZO Wireless Hi-Fi System The Wi-Fi speaker’s Service Set Identifier(SSID) is: ex. “Linkplay_XXXX” GETTING STARTED Connect the active master speaker with the passive slave speaker using a desired length cable. TURNING ON THE ACTIVE MASTER SPEAKER To turn this unit ON, plug in the power cord.When the unit turns on, the indicator light will flash Red.
- Page 6 ACTIVE SPEAKER SERIES 2CH WIFI CEILING SPEAKER • Select ‘Settings’ then you will see Figure 4. • Select the Wi-Fi speaker’s SSID,ex. “Linkplay_XXXX”,then you will see the Figure 5. • Select ‘CONNECT’ then you will see the Figure 6. • Select ‘NO’you will see Figure 7,then press triangle ‘ ’...
- Page 7 ACTIVE SPEAKER SERIES 2CH WIFI CEILING SPEAKER • Press the icon ‘ ’ to enter the main screen as the Figure 12,in this menu we can select ‘Add WIFI & APP OPERATIONS More Services’ to configure which music services you want to display on your main screen list. Now you can play and enjoy your music! Figure 11 Figure 12...
- Page 8 ACTIVE SPEAKER SERIES 2CH WIFI CEILING SPEAKER AirPlay You can play music through AirPlay on your iOS device. To do this you need to ensure that your iOS device and the WiFi speaker s are connected to the same Wi-Fi network. Swipe up from the bottom of your iOS device and select ‘AirPlay’.
- Page 9 ACTIVE SPEAKER SERIES 2CH WIFI CEILING SPEAKER CHECK WI-FI STRENGTH To achieve smooth streaming experience, your WiFi Speaker should have good network connection with your connected router. When connected with Wi-Fi, please check the Wi-Fi strength when you have problem with streaming experience. The steps to check the Wi-Fi strength are as follows: 1.
- Page 10 ACTIVE SPEAKER SERIES 2CH WIFI CEILING SPEAKER ALARM CLOCK(Figure 18) The alarm lets you wake up to your own music from the iTunes library or your subscribed music services. You can set several alarms and specify for each alarm which days they should wake you up and which playlist to use.
- Page 11 ACTIVE SPEAKER SERIES 2CH WIFI CEILING SPEAKER LANGUAGE SETUP (Figure 21) You can click the “System” tab to select the language you want,then save it. Figure 21 CHANGE DEVICE NAME (Figure 22) The factory default device name is ex. “Linkplay_XXXX”,you can click the “Network” tab to “Change device name”...
-
Page 12: Troubleshoot
ACTIVE SPEAKER SERIES 2CH WIFI CEILING SPEAKER TROUBLESHOOT SETTING UP THE SPEAKER How do I connect the WiFi Speaker to my Wi-Fi network? You'll need to download the MUZO Player app for iOS or Android. Once you download it, the app will help you through the setup process. -
Page 13: Frequently Asked Questions
ACTIVE SPEAKER SERIES 2CH WIFI CEILING SPEAKER How do I stream music from my DLNA enabled NAS (Network-Attached Storage) device? First make sure your DLNA enabled NAS device is powered on and connected to the same wireless network as your Speaker and smartphone/tablet. Tap the MUZO icon in the top left of the MUZO app. Select My Music, and select your device. - Page 14 ACTIVE SPEAKER SERIES 2CH WIFI CEILING SPEAKER Can I login multiple Speakers to Spotify at the same time? You should be able to login multiple devices to your Spotify premium account but you can only stream Spotify from one device (or multi-room group) at a time. The Spotify App allows you to switch among different Spotify Connect clients.
- Page 15 NOTE:...
- Page 16 The products are constantly improving,subject to change without prior notice.
